1. CONFIGURATION
1.2 Structure of MFP
[ MC332/MC342/MC352/MC362/MC562 ]
The insides of MC332/MC342/MC352/MC362/MC562 multi function printers are
composed of the following parts.
•Scannerpart
•Electronicphotographyprocesspart
•Paperpath
•Controlpart(CUpart/PUpart)
•Powersupplyparts(highvoltagepart/lowvoltagepart)

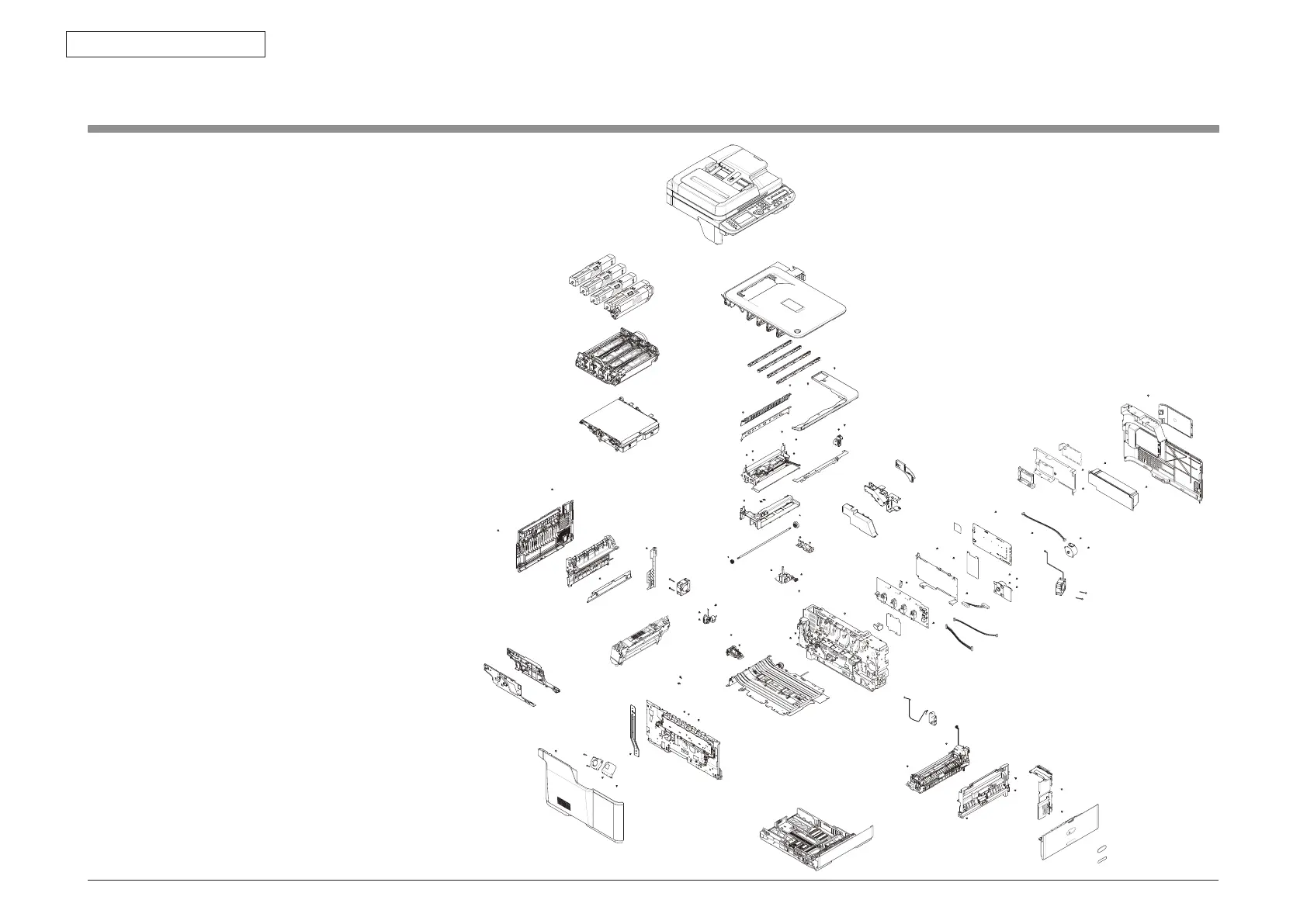

Figure 1-3-1 shows the composition of the MFP.
Figure 1-3-1
