44952001TH Rev.2

1-28

Oki Data CONFIDENTIAL

1. CONFIGURATION

1.5.2 Network Interface Speciﬁcation

1.5.2.1 Outline of Network Interface

Table 1.5.2 Basic Speciﬁcation of Network Interface

Protocol Family Network Protocol Application

TCP/IP IPv4, IPv6, TCP, ICMP, UDP LPR, RAW

SNMPv1

DHCP/BOOTP

HTTP

1.5.2.2 Network Interface Connector and Cable

(1) Connector

100 BASE-TX/10 BASE-T (automatic switch, no simultaneous use)

1.5.2.3 Network Interface Signal

Pin No. Singles Single Direction Functions

1 TXD+ FROM PRINTER SendData+

2 TXD- FROM PRINTER Send Data -

3 RXD+ TO PRINTER ReceivedData+

4 - - Unassigned

5 - - Unassigned

6 RXD- TO PRINTER Received Data -

7 - - Unassigned

8 - - Unassigned

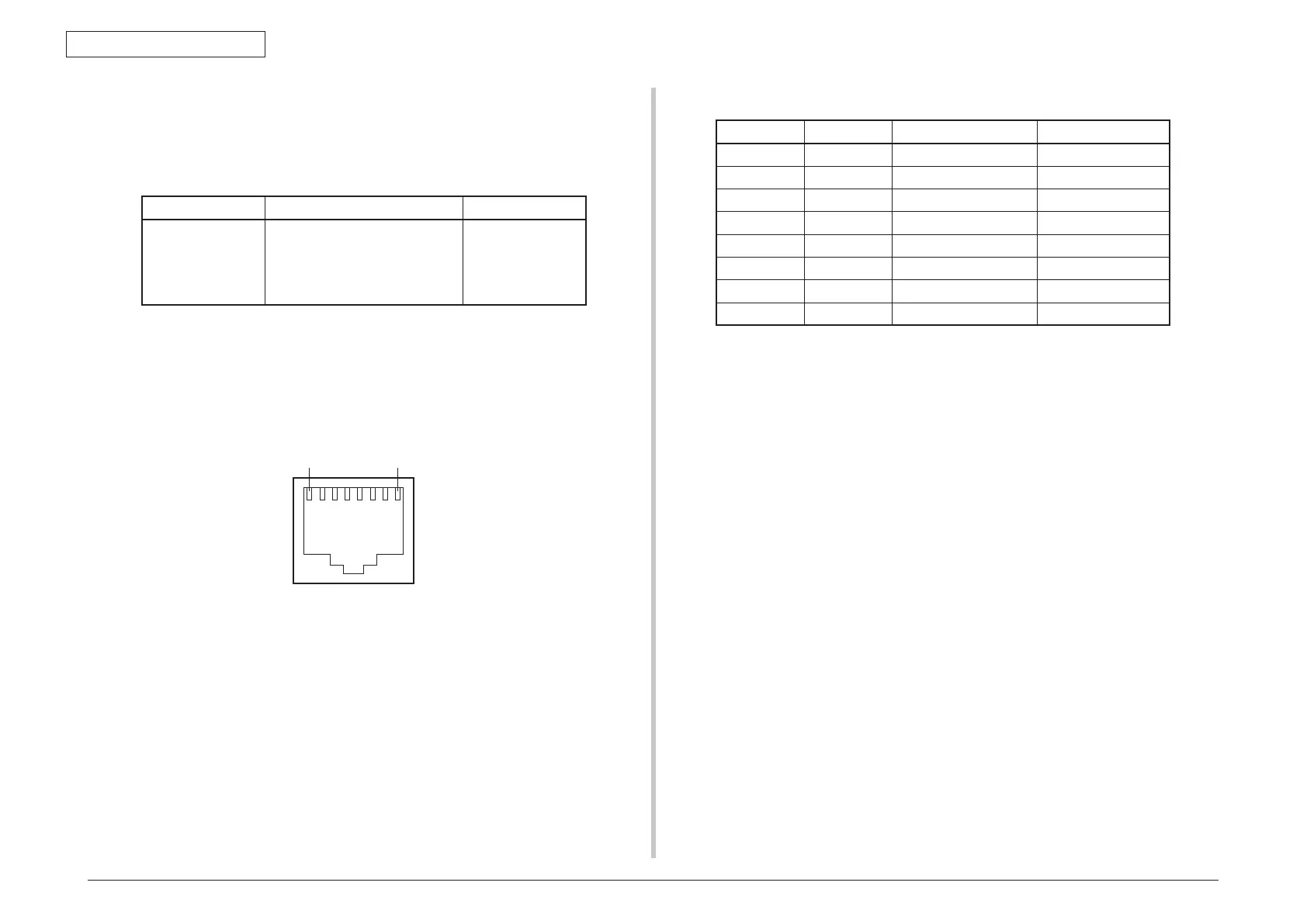

Connector pin arrangement

(2) Cable

Unshielded twist pair cable with RJ-45 connector (Category 5 is recommended.)
