4.REPLACEMENT OF PARTS
4.2.6 Front cover

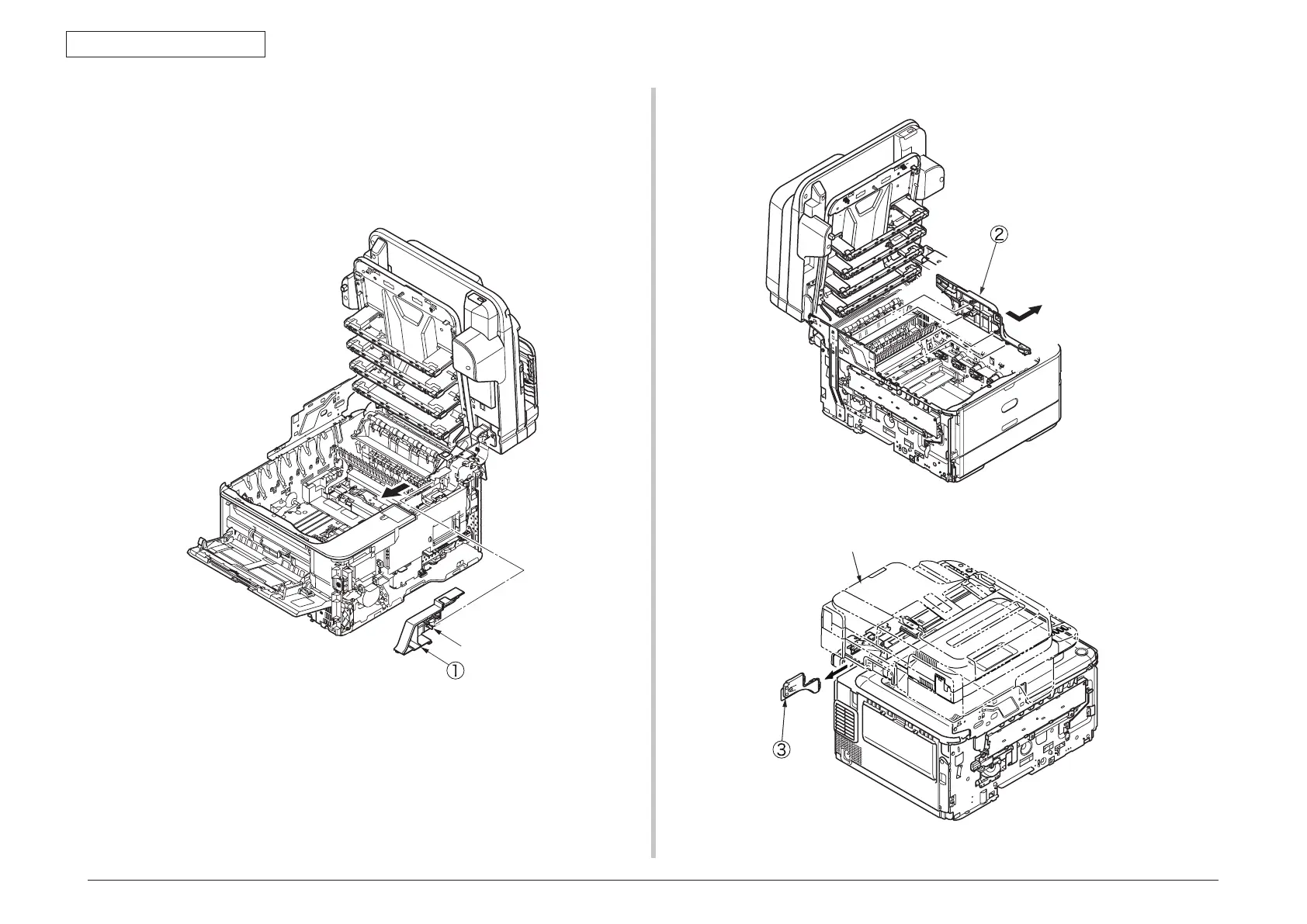

(1) Remove the left side cover and right side cover. (See.4.2.3,4.2.4)
(2) Remove the latch , and remove the cover-Hinge-R
①
in the direction of the arrow.
(3) Remove the cover-stay-L
②
in the direction of the arrow.
Latch
(4) Remove the cover-hinge-RB
③
in tne direction of the arrow.
Scanner
