44952001TH Rev.2
5-13
Oki Data CONFIDENTIAL
5. MAINTENANCE MENUS
5.4 Self-diagnostic mode
This section describes LEVEL 0 and LEVEL 1.
5.4.1 Operator Panel

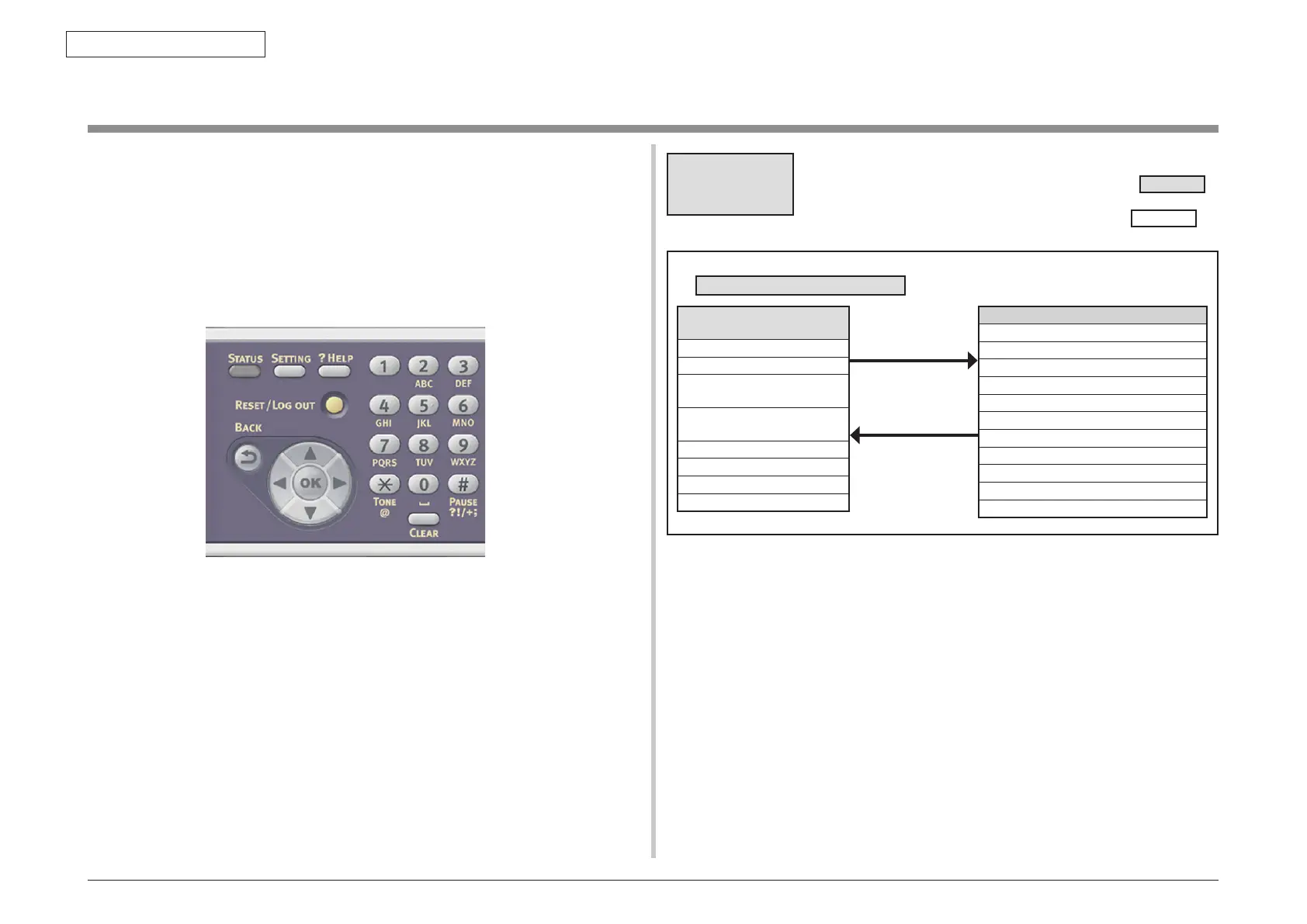

The following operational description on the self-diagnostic is premised on the following
operator panel layout:
Example : MC562
Self-diagnostic
mode layout (entire)
(1) Menu option switching
Only while displayed as shown in a shaded area (
XXXXX
),
the level of the self-diagnostic mode can be switched. [2] or [8] is
used to switch to the option in a non-shaded area (
XXXXX
).
LEVEL0- engine status
display
Engine status display
(Heater temperature)
(Ambient temperature and
humidity display)
Voltage display during printing
(TR, CH, DB or SB)
Toner sensor
Waste toner sensor
RFID internal noise motor
Error detail
LEVEL1-ENGINE DIAG MODE XX.XX
SWITCH SCAN
MOTOR & CLUTCH TEST
TEST PRINT
REG ADJUST TEST
DENS ADJ TEST
CONSUMABLE STATUS
PRINTER STATUS
FACTORY MODE SET
SENSOR SETTING
LE D HEA D DATA
NVRAM PARAMETER
Normal operation mode
[6]
[6]
