Oki MPS2731mc - Frame-Assy-Hopping-ADF

44952001TH Rev.2
4-28
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS
4.2.7.17 Frame-assy-hopping-ADF

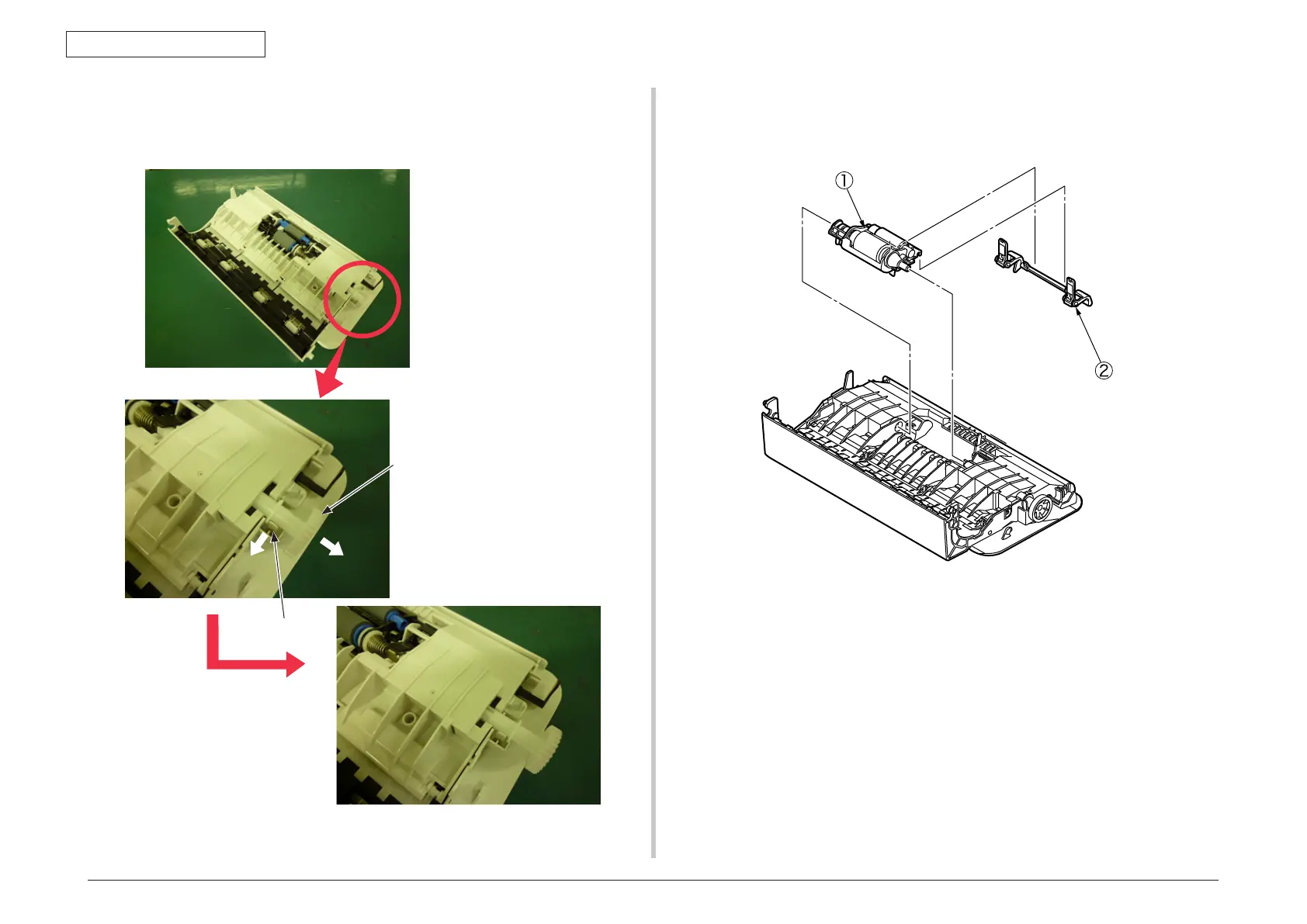

(1) Slide the Gear-shaft-hopping while opening the stopper.
Gear-shaft-hopping
Stopper
(2) Remove the Frame-assy-hopping-ADF
①
and the Stopper-Assy-Gate
②
.
