4.REPLACEMENT OF PARTS

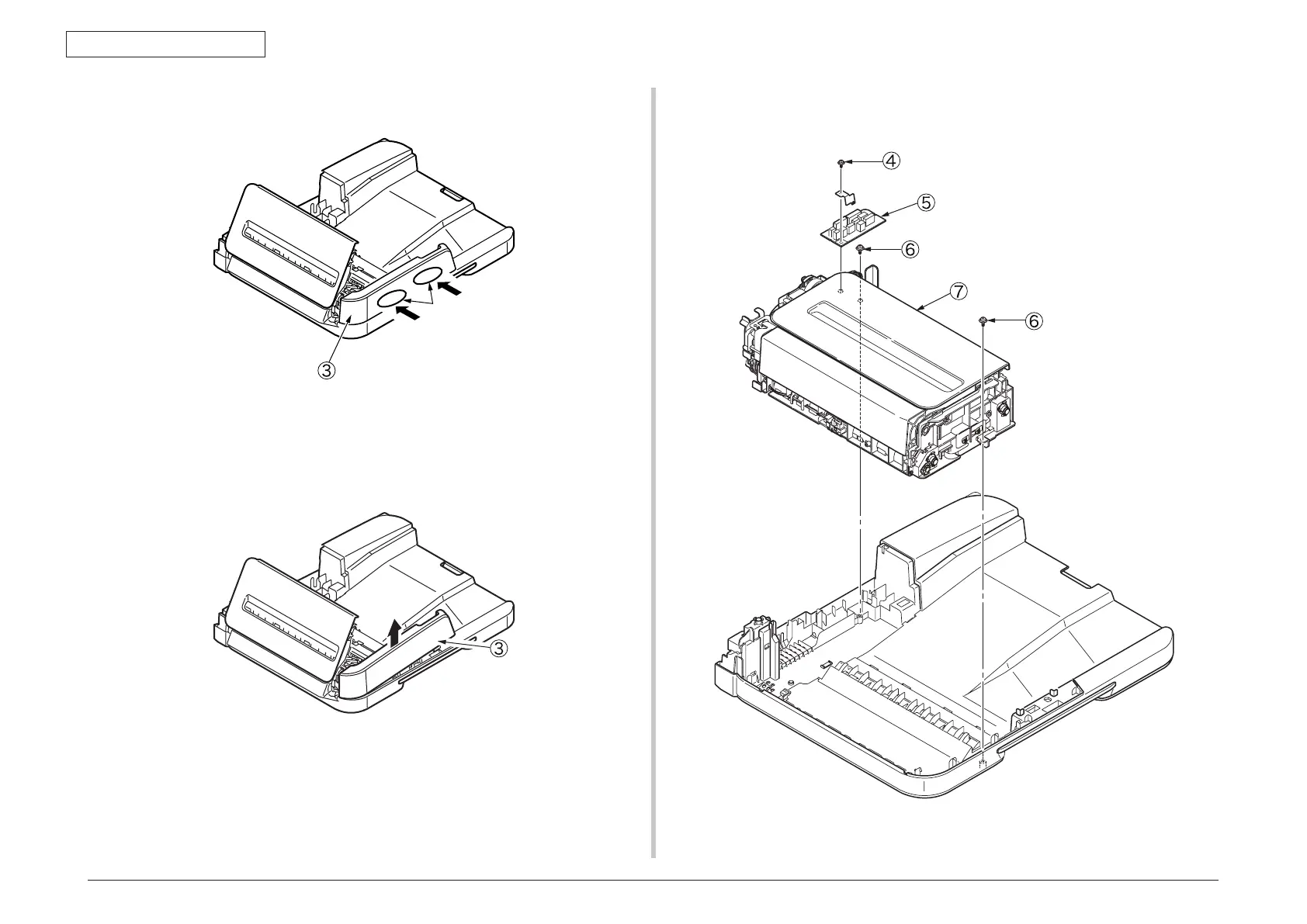

(7) Remove the screw (silver)
④
and remove the ADF board
⑤
.
(8) Remove the two screws (black)
⑥
and remove the ADF-assy
⑦
.
(5) Push the portion A (2 places). (Concurrent to push the (4) )
A
(6) Remove the cover-ADF-F
③
in the direction of the arrow.
