4.REPLACEMENT OF PARTS

①

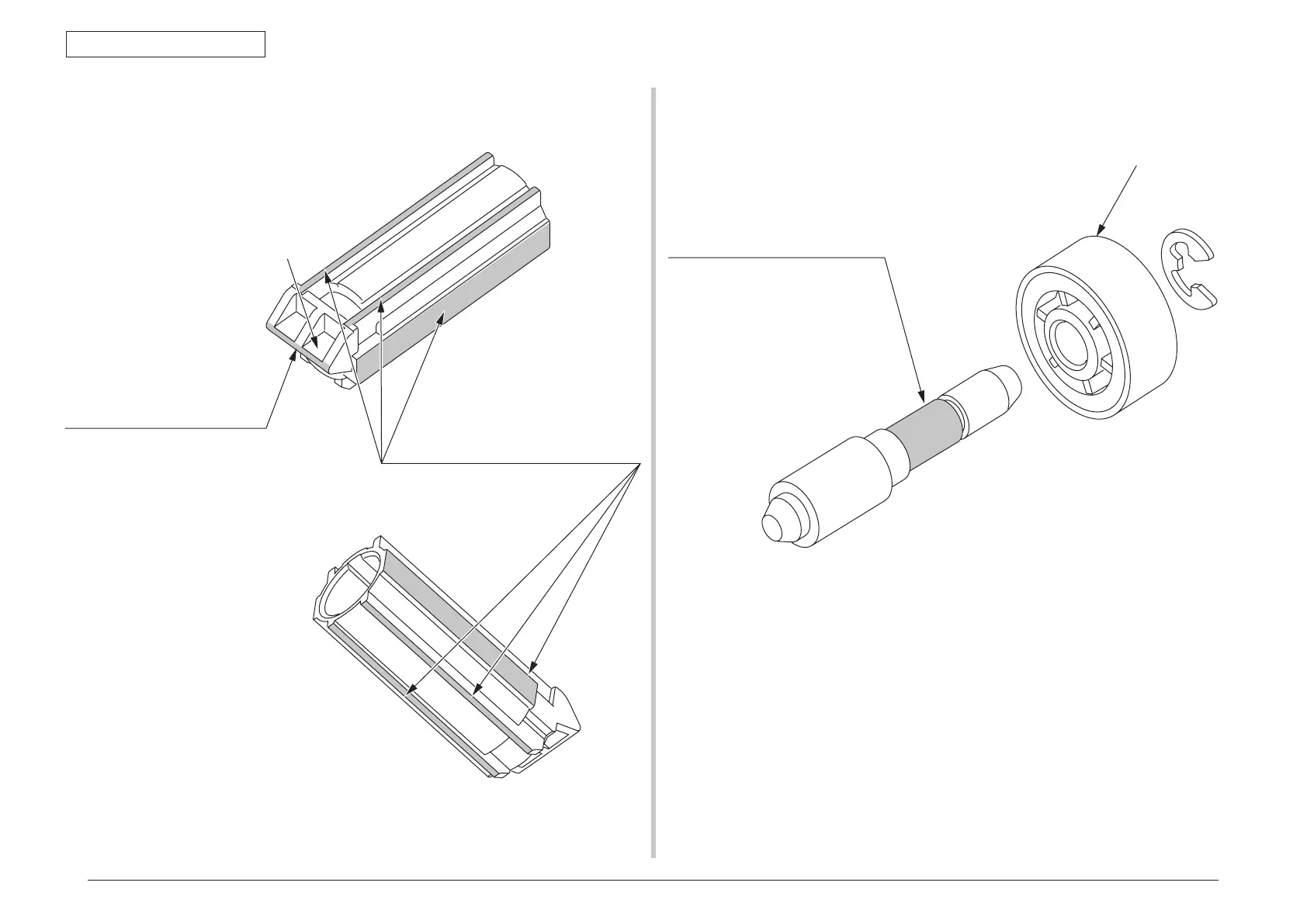

-3 44527301PP Slider-Hinge (FB)

Slider-Hinge (FB)

EM-D110 Class E

Apply a large amount of MOLYKOTE

(EM-D110) to the sliding surface.

(hatched areas)

EM-D110 Class A

Apply a small amount of MOLY KOTE

(EM-D110) to the sliding surface.

(hatched areas)

After apply a MOLY KOTE by ①-1),

It apply a MOLY KOTE using same

Brush in ①-1)

(MOLYKOTE is not added on brush)

②

44659101PA Gear-Idle-Assy

Gear-Planet

SF-133ClassC

ApplyanormalamountofHANARL

(SF-133)tothehatchedarea.

(allcircumferenceofpost)

Leave it for about 3minutes (drying time) after painting HANARL SF-133,

and then assemble the Gear-Idle-Assy.
