44952001TH Rev.2
2-9
Oki Data CONFIDENTIAL
2. DESCRIPTION OF OPERATION
(5) Ejectionunitandpaperejection
(a) Face-downejection
 Face-downejectionisavailablewhentheface-uptrayisclosed.

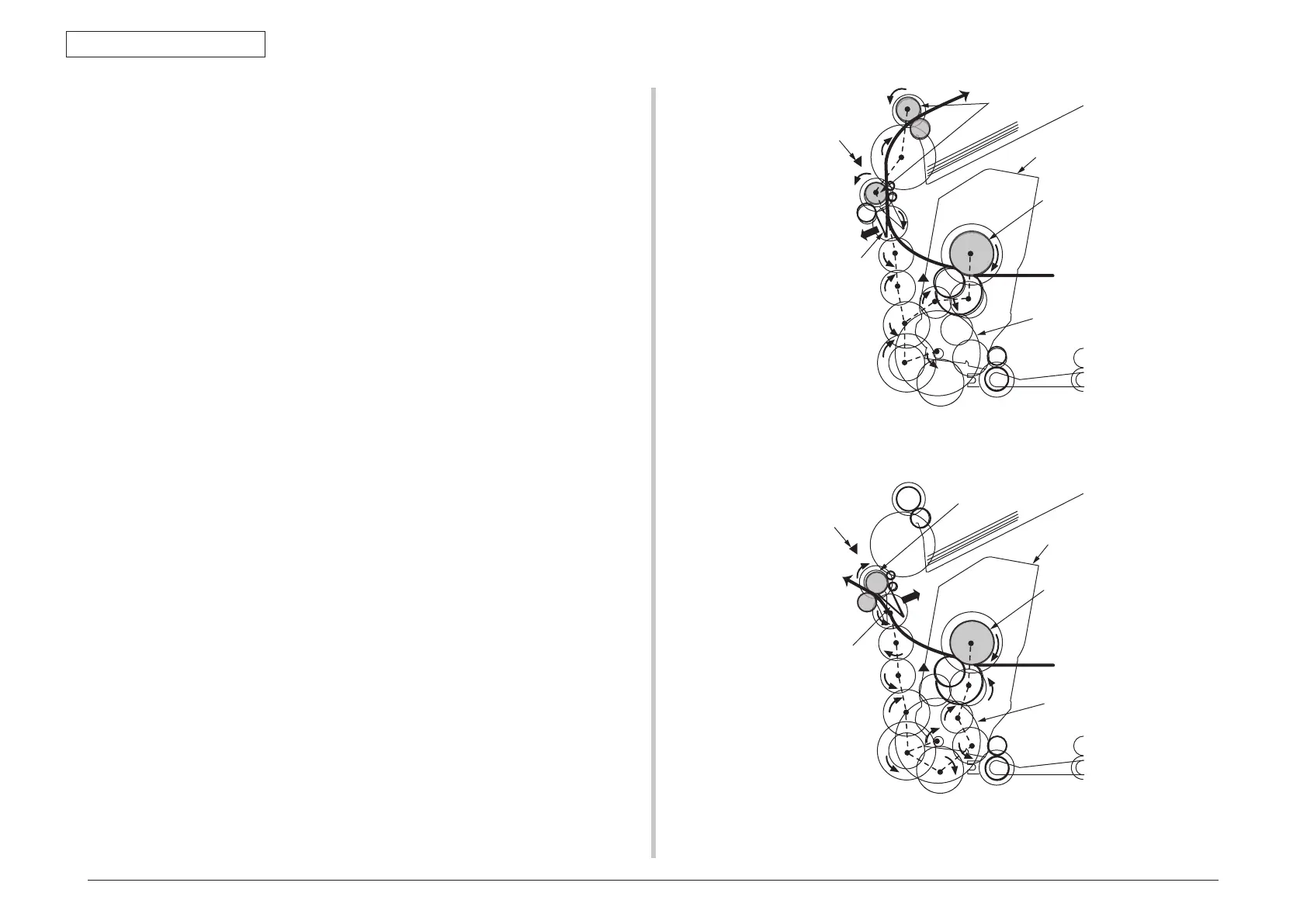

In that state, the separator FU is fixed in the direction illustrated in Figure
2-5, and the face-up tray detection sensor is enabled.
 As the fuser motor runs (counterclockwise), the eject rollers and the heat
rollerstartrotating,andprintedpaperisejectedwithitsfacedown.
(b) Face-upejection
 Face-upejectionisavailablewhentheface-uptrayisopen.
In that state, the separator FU is fixed in the direction illustrated in Figure
2-6, and the face-up tray detection sensor is disabled.
 As the fuser motor runs (clockwise),the eject rollers and the heat roller
startrotating,andprintedpaperisejectedwithits faceup.(Whenface-up
ejectionisenabled,duplexprintingisnotavailable.)
Face-up tray
detection sensor
Face-up tray
detection sensor
Eject roller (drive)
Fuser unit
Fuser motor
(counterclockwise)
Separator FU
Eject roller (drive)
Fuser unit
Heat roller (drive)
Heat roller (drive)
Fuser motor
(clockwise)
Separator FU
Figure 2-6
Figure 2-5
