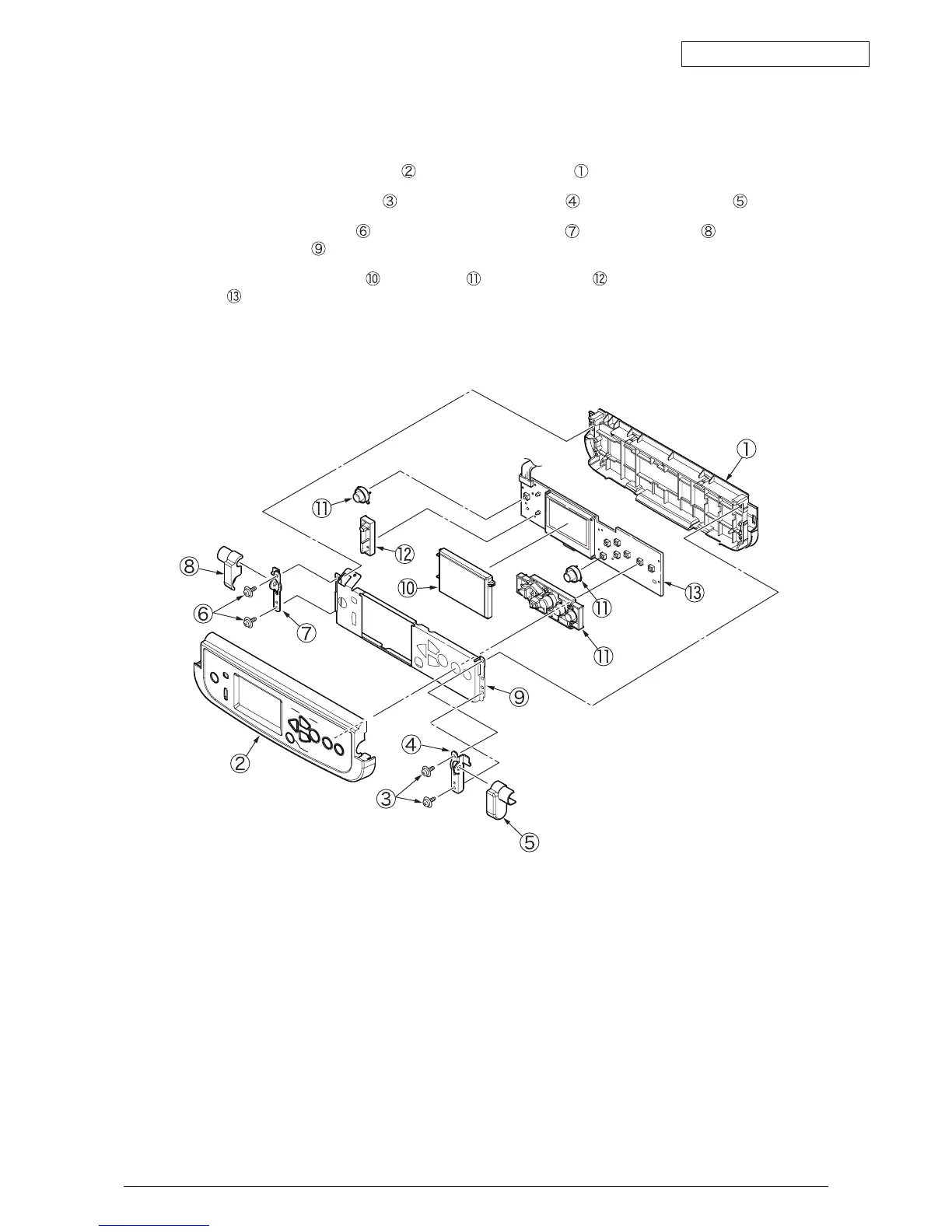

4.3.5 OP PCB
(1) Remove the Cover Assy-OP Panel. (Refer to Section 4.3.4)
(2) Remove Cover-OP Panel
from Frame-OP-Panel .
(3) Unscrew the 2 screws
, then remove hinge (R) and Cover Hinge (R) .
(4) Unscrew 2 screws
, then remove the Hinge (L) , Cover-Hinge (L) and Plate-
Shield (OP) .
(5) Remove Cover-LCD
, Button-key , and Lens-LED , then remove the OP PCB
.
