Oki MPS9650c Maintenance Manual

Oki Data CONFIDENTIAL
43627911TH Rev. 3
124 /

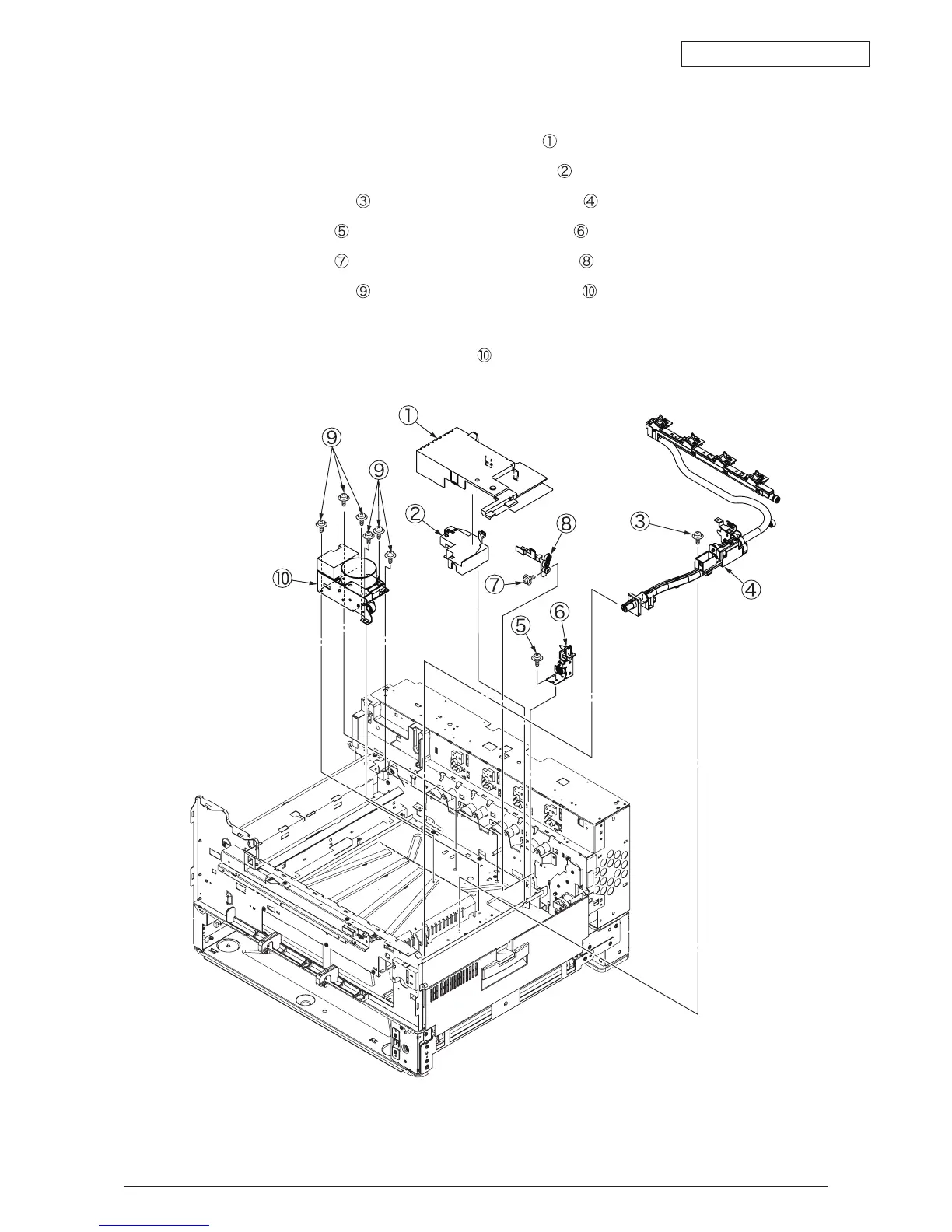

4.3.14 Duct Assy
(1) Remove the hinge, then remove Cover-Middle
.
(2) Remove the hinge, then remove Guide Tube (L)
.
(3) Unscrew 2 screws
, then remove Duct-Assy-Toner .
(4) Unscrew screw
, then remove Gear-Duct-B-Assy .
(5) Unscrew screw
, then remove Gear-Duct-ID Assy .
(6) Unscrew 6 screws
, then remove Duct-Drive-Assy .
[Precautions in Removal]
Wh
en removing the Duct-Drive-Assy
, be sure to read 4.3.11 "Cover-Screw."
