Oki Data CONFIDENTIAL

3.5 Assembly Procedure

3.5.1 Printer Main Body

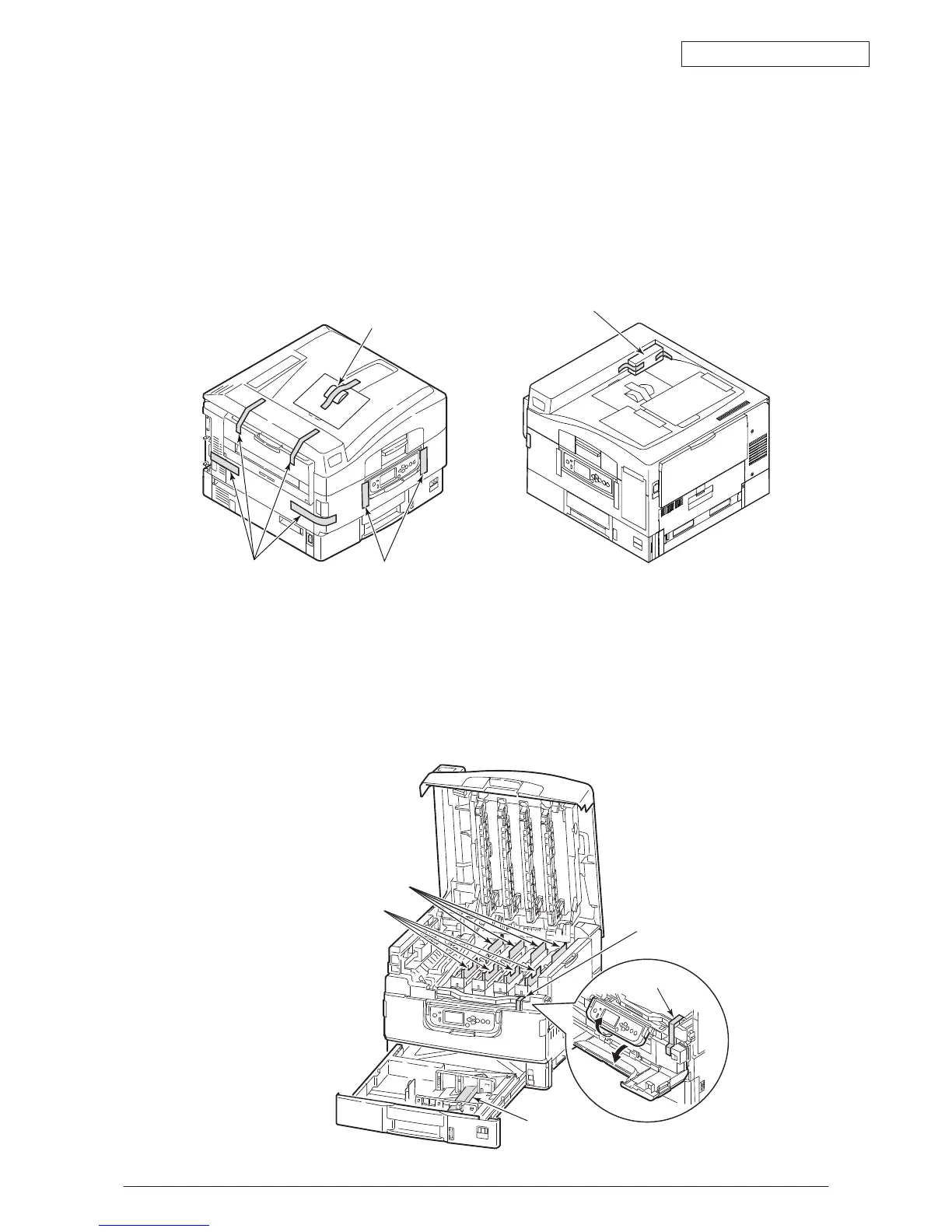

Remove Protective Equipment

(1) Remove protection tapes on the side of printer (6 places), a sheet of paper, desiccant and

Pad-Guard-Stacker on the top.

Pad-Guard-Stacker

Desiccant

Protection tape

(4 places)

(2 places)

(2) Press down the open button to open the top cover.

(3) Pull out the protective equipment (8 places) and remove protection tapes.

(4) Remove the paper cassette.

(5) Remove the protective equipment inside the paper cassette.

Protective equipment (4 places)

Protective equipment

(4 places)

Protection tape

Protective equipment

43627911TH Rev. 3

58 /
