4.3.22 MPT Feed Roller

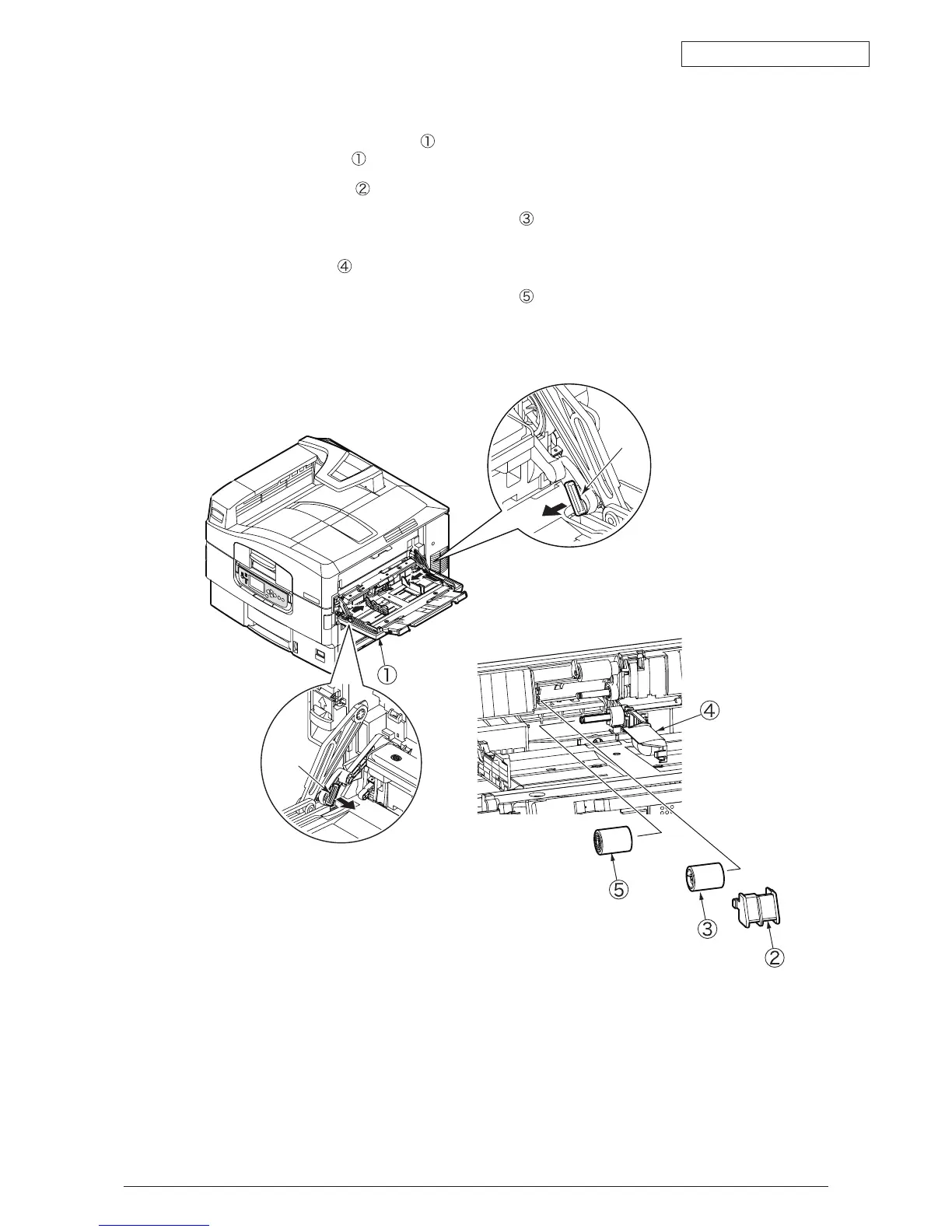

(1) Open the Multipurpose Tray

, push the lever in the arrow direction and remove the

Multipurpose Tray .

(2) Remove the cover

(3) While opening the claw of the Feed Roller

outward, slide the roller to the left and

remove it.

(4) Open the cover

(5) While opening the claw of the Feed Roller

outward, slide the roller to the left and

remove it.

Lever
