8. CONNECTION DIAGRAM
8.1 Check Resistance Value
Conveyance
Belt Motor
Main Motor (Y)
Main Motor (M)
Yellow Orange Black Brown
M
1 2 3 4

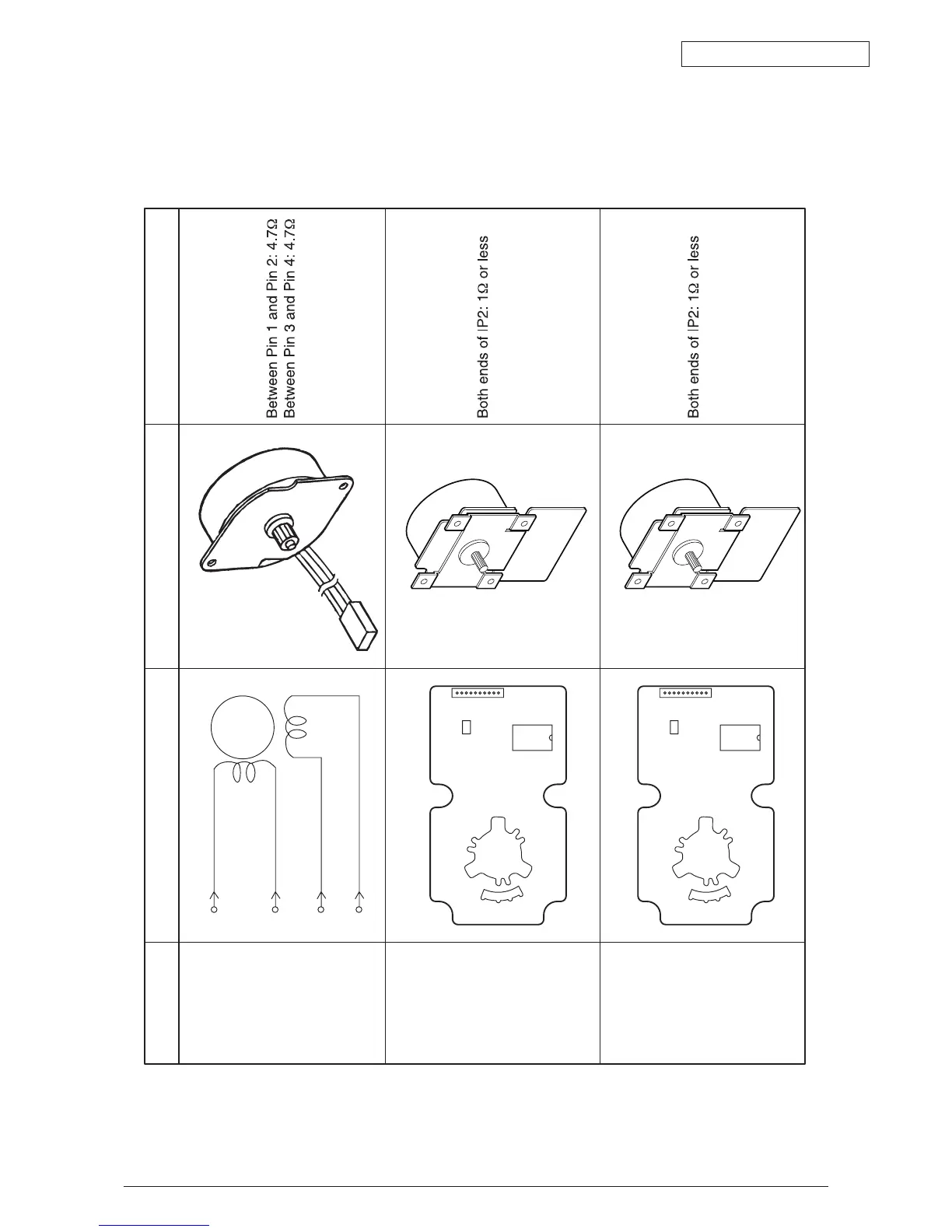

Unit Circuit Diagram and Configuration Parts Diagram Resistance Value
IC1
IP2
IC1
IP2
