Oki Data CONFIDENTIAL
1.5.3 Parallel Interface Specifications
1.5.3.1 Parallel Interface Overview
Item Details
Corresponding mode Comatible mode, nibble mode, ECP mode
Data bit length Compatible: 8, Nibble: 4, ECP: 9 bit
1.5.3.2 Parallel Interface Connector and Cable
(1) Connector
Printer: 36pConnector (Female)
57LE-40360-12 (D56) (DDK Ltd.) equivalent product
Cable: 36pConnector (Male)
57FE-30360-20N (D8) (DDK Ltd.) equivalent product

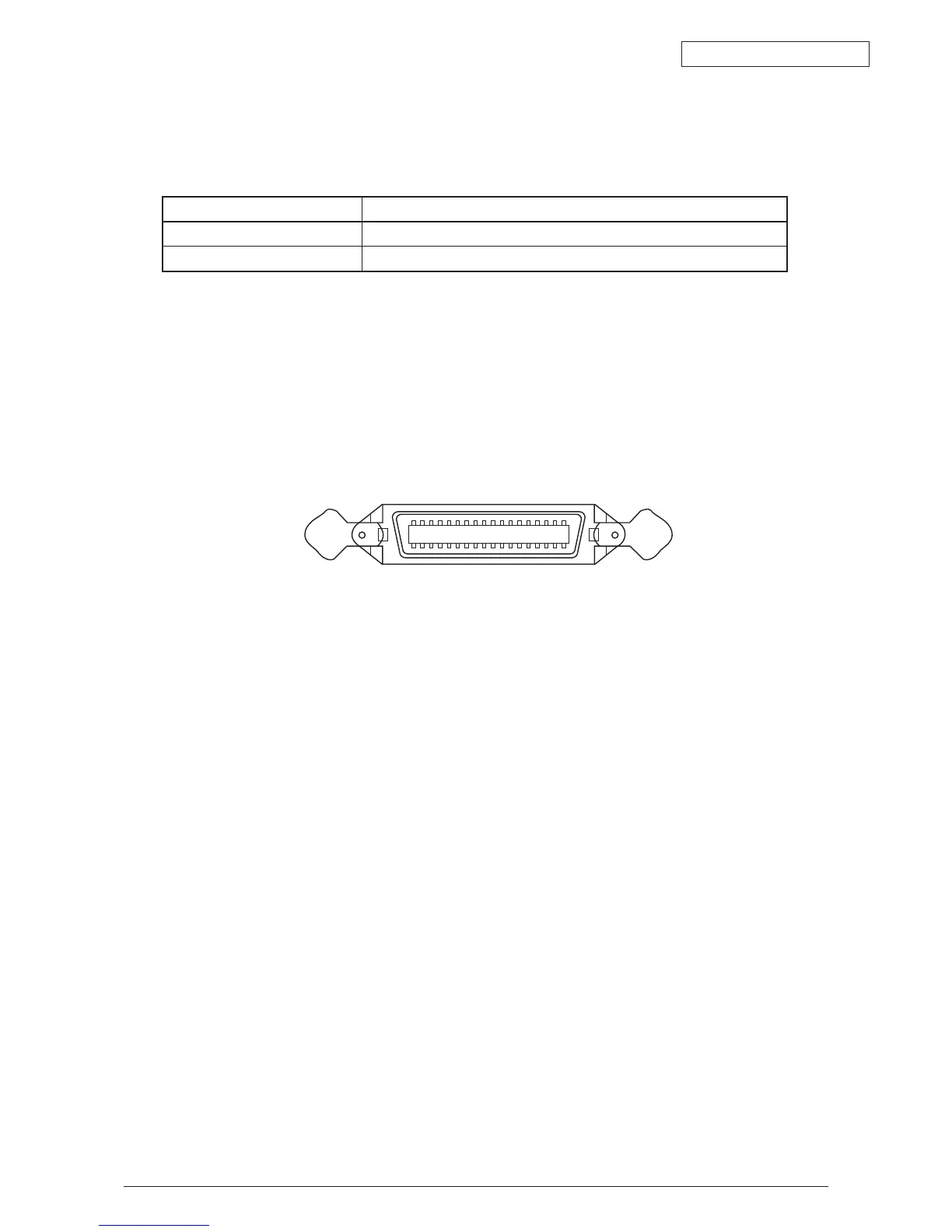

Pin arrangement from interface cable side
(2) Cable
Use a cable shorter than 1.8m.
(Use a cable with a shielded twisted-pair wire for to prevent noise interference.)
1.5.3.3 Parallel Interface Level
Low Level : 0.0V to +0.8V
High Level : +2.4V to +5.0V
43627911TH Rev. 3
17 /
