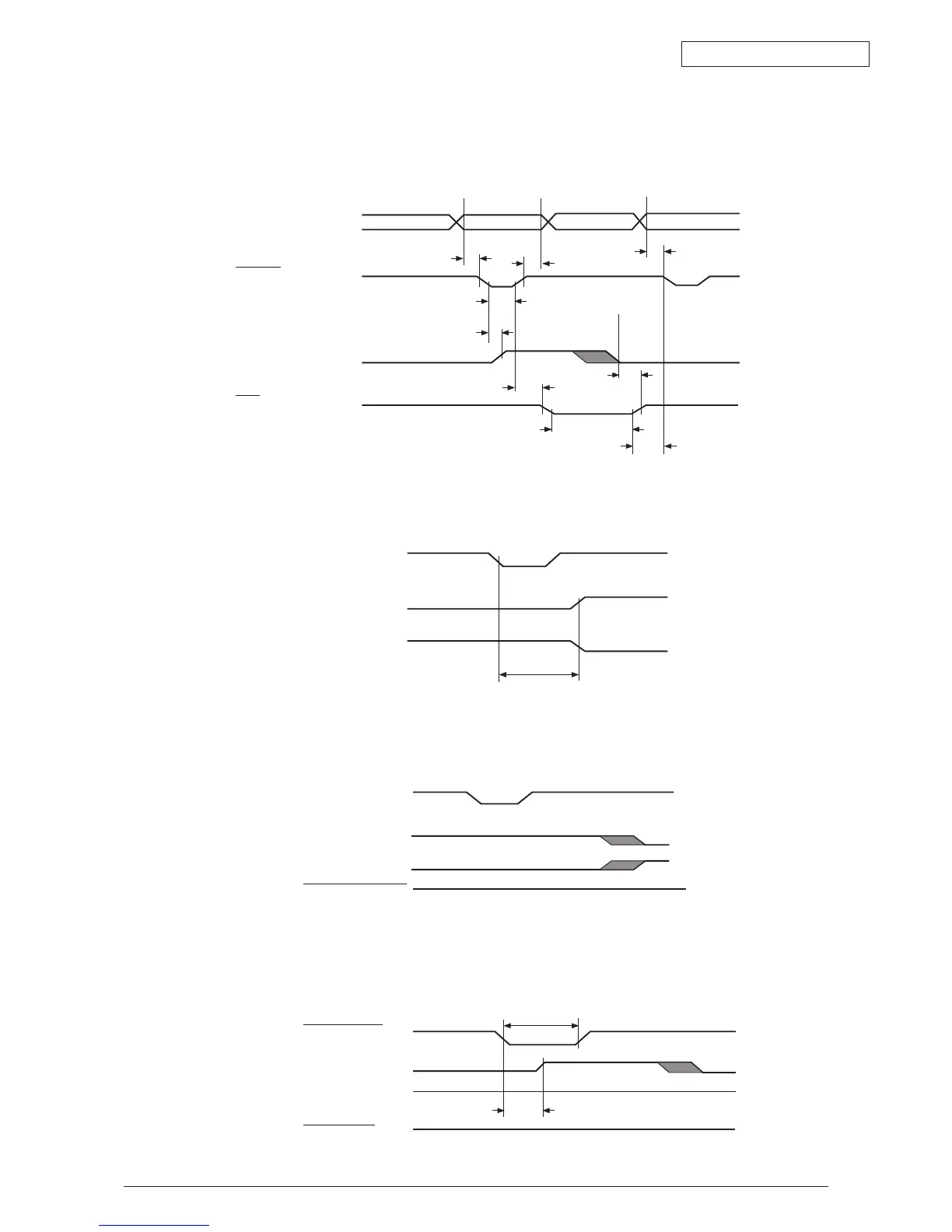

1.5.3.4 Timing Chart
■
Compatible Mode
a) Data Reception Timing
PARALLEL DATA
(DATA BITs 1 to 8)
nStrobe
BUSY
nAck
0.5 µs min.
0.5 µs min.
0.5 µs min.
0.5 µs max.
0.5 µs min.
0 min.
0 min.
0.5 µs to 3 µs
0 min.
b) Online/Online SW for Offline Switching Timing
ON-LINE SW
BUSY
100 ms max.
SELECT
c) Offline/Online SW for Online Switching Timing
ON-LINE SW
BUSY
SELECT
ACKNOWLEDGE
d) nlnit Timing (Default Invalid)
* It is based on a menu setup.
50 µs min.
INPUT. PRIME
BUSY
SELECT
5µs max.
ACKNOWLEDGE
