Oki MPS9650c Maintenance Manual

Oki Data CONFIDENTIAL
43627911TH Rev. 3
230 /

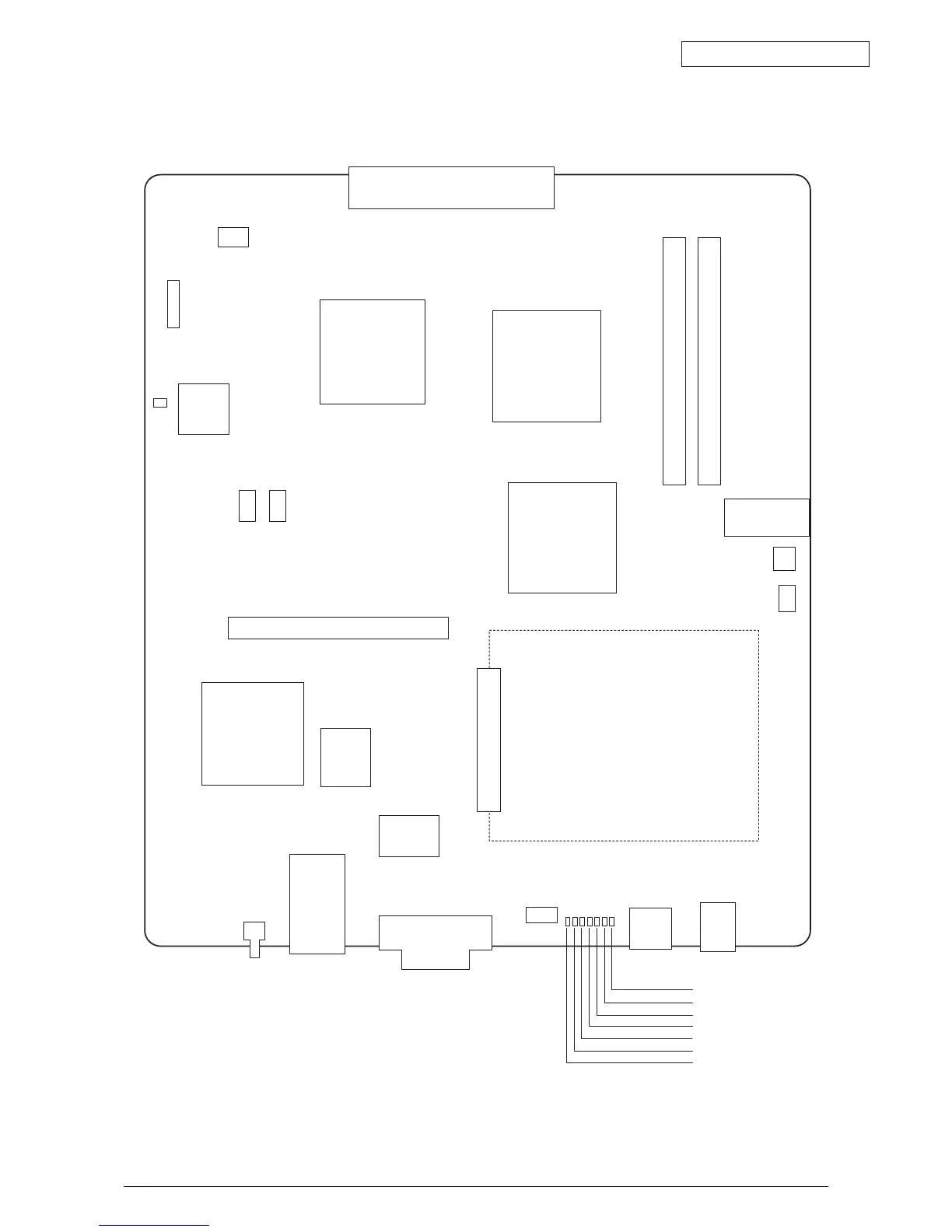

(3)-1 Main Controller PWB : AS3
J7000 PU I/F connector
U100 CPU
U170 North Bridge
BT300
J483
FAN_NB
J481
FAN_DSP
J2650
TGT USB
J460
HOST USB
U2578
MAC ROM
D763 N/A
D762 HDD LED
D768 PWRGOOD
D767 DIAG3
D766 DIAG2
D765 DIAG1
D764 DIAG0
J980 VGA
U2579
LAN PHY
U530 BIOS
U2303 VX500
J7400
BY3 board
U301 South Bridge
HDD
U7202
EEPROM
U7203
KEYCHIP
D7200 FPGA LED
J470
FAX conn
U7200
FPGA
S430
Download Switch
J2575
LAN
S720
LANSW
J755
J676 DDR SODIMM J675 DDR SODIMM
