Oki Data CONFIDENTIAL

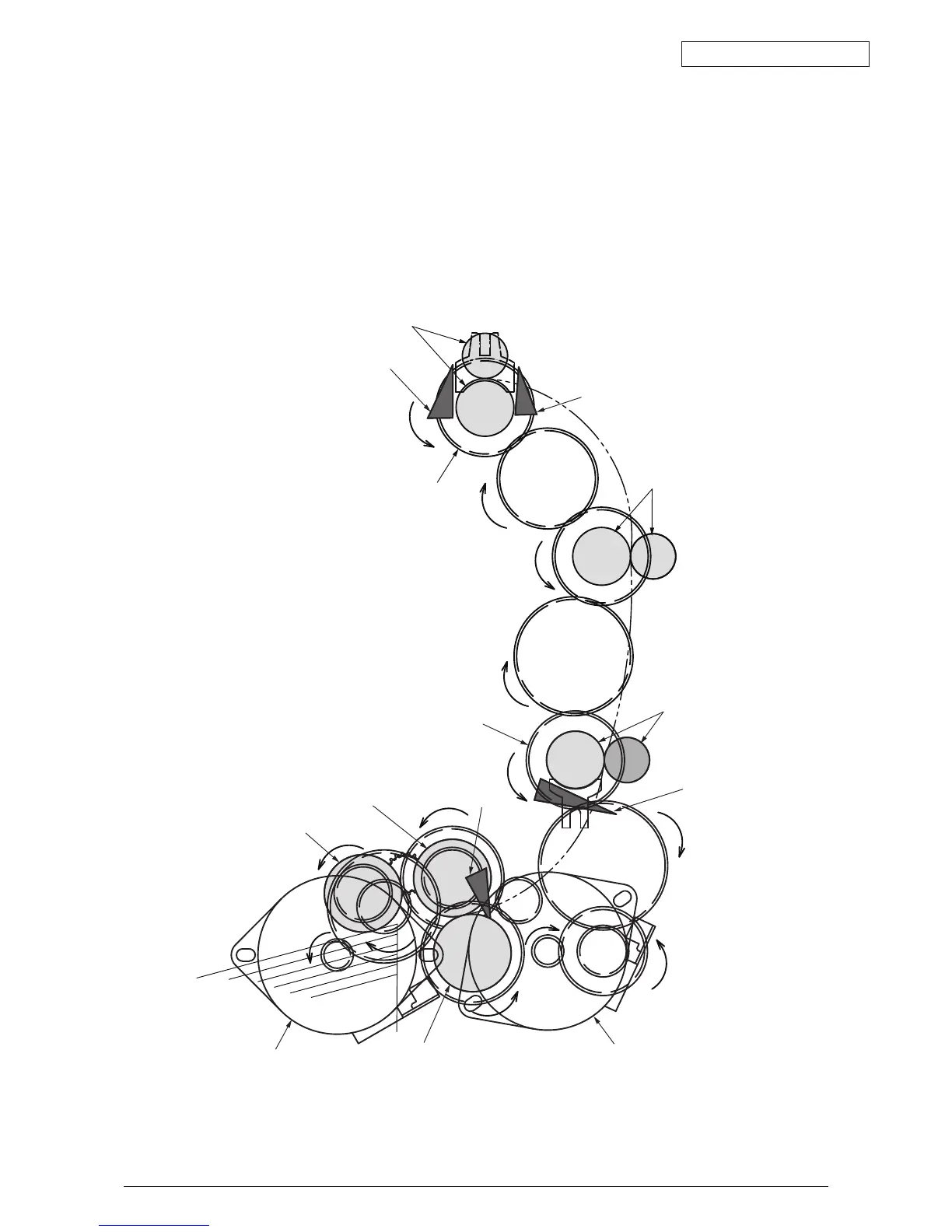

(1) Paper Supplied from the 1st Tray
1. Paper proceeds when the paper supply motor turns (CCW) and the paper supply
clutch is connected, until the IN1 sensor turns ON.
2. When the IN1 sensor is turned ON, a certain volume of paper is further
transported until it is against the 1st resist roller. (this corrects paper skew)
3. After paper has hit the roller while the Resist Motor is running (CW), the
electromagnetic clutch that transmits drive power to the Resist Rollers 1 is
connected and paper is sent 2 to the Feed Belt via Intermediate Feed Rollers
and Resist Rollers.
To Next Page
