Oki MPS9650c Maintenance Manual

Oki Data CONFIDENTIAL
43627911TH Rev. 3
76 /

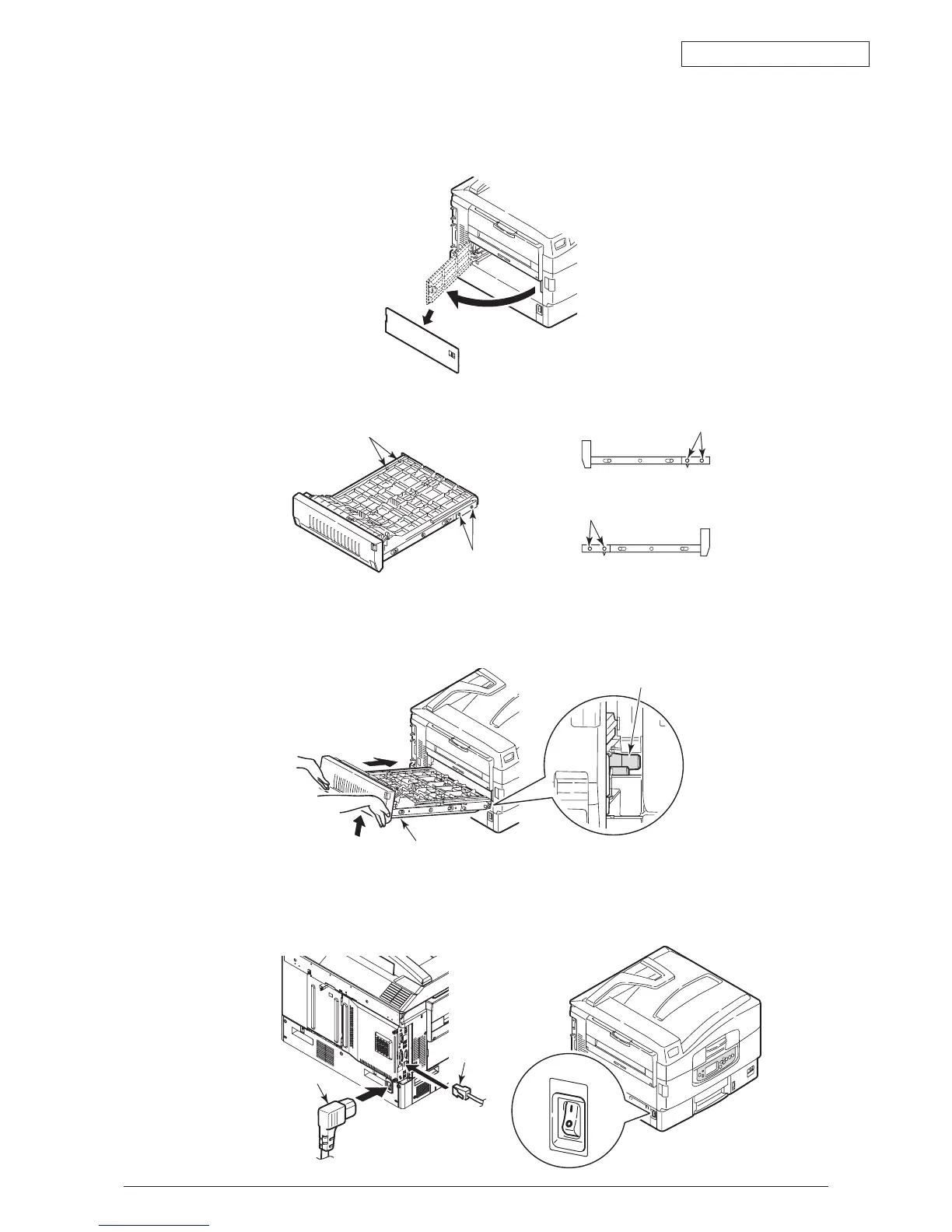

3. Open and remove the cover toward the direction seen in figure.
Memo: Keep it until the duplex-print unit is removed.
4. Make sure that the rail posts on both sides of duplex-print unit are locked.
Rail post
Rail post
View from right side
View from left side
Rail post
Rail post
5. Insert the duplex-print unit into the printer from the left side of printer.
Insert it up to the interior firmly.
Duplex-unit
Rail post viewed
from duplex unit side
Rail post
6. Plug the power supply cord and the printer cable in and switch on the
power supply.
ON
Power supply cord
Print cable
