9
STEP 1 PRE-AssEmBLE ALL PARTs IN sTEP 1 - 8 BEfORE EREcTING sHED.
Note: X15A1 (Long) Gable Brackets to be fixed to front and back gables.

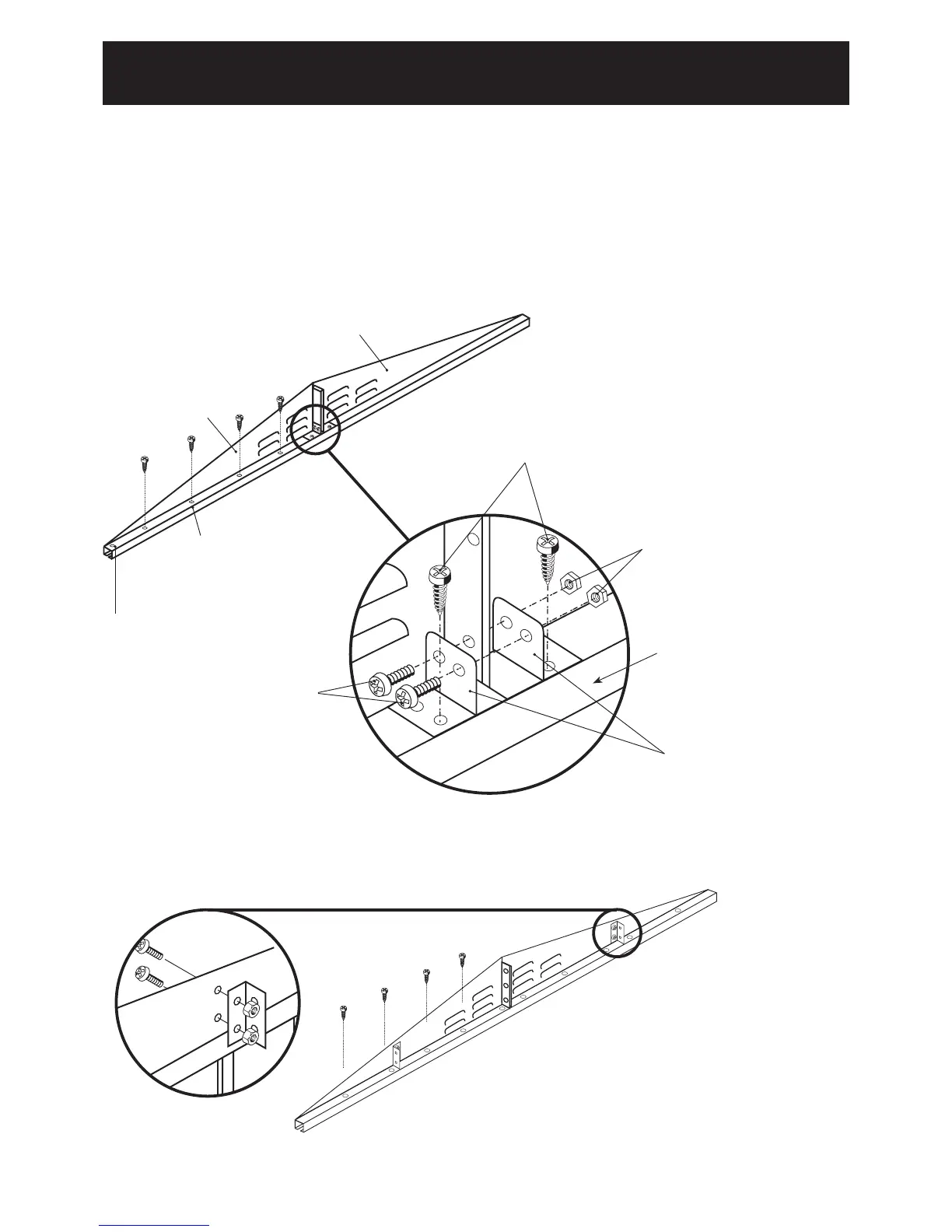

Fix Gables 'O1' and 'N1' to the Top Rail 'I1' from the centre towards each end with screws 'X12'.
Note If Double Hinged Doors are to be placed underneath the Gable fix 'X26' bracket to centre of
Gable as shown in diagram below as this gives support to the Gable over the door opening.
There is no 'X26' brackets required on the opposite Gable. If Double Hinged Doors are to be
placed down the long side 'X26' brackets are not required.
Fix together each Gable in the centre with Bolts 'X13A' and Nuts 'X13B'.
X12
X13A
X26
X13B
O1
N1
I1
Note: Do not fix
'X12' to end holes
'I1' has no holes
facing inside of shed
To Next Page
