Oldfields Treco - STEP 3: Side Midwall Brace Assembly

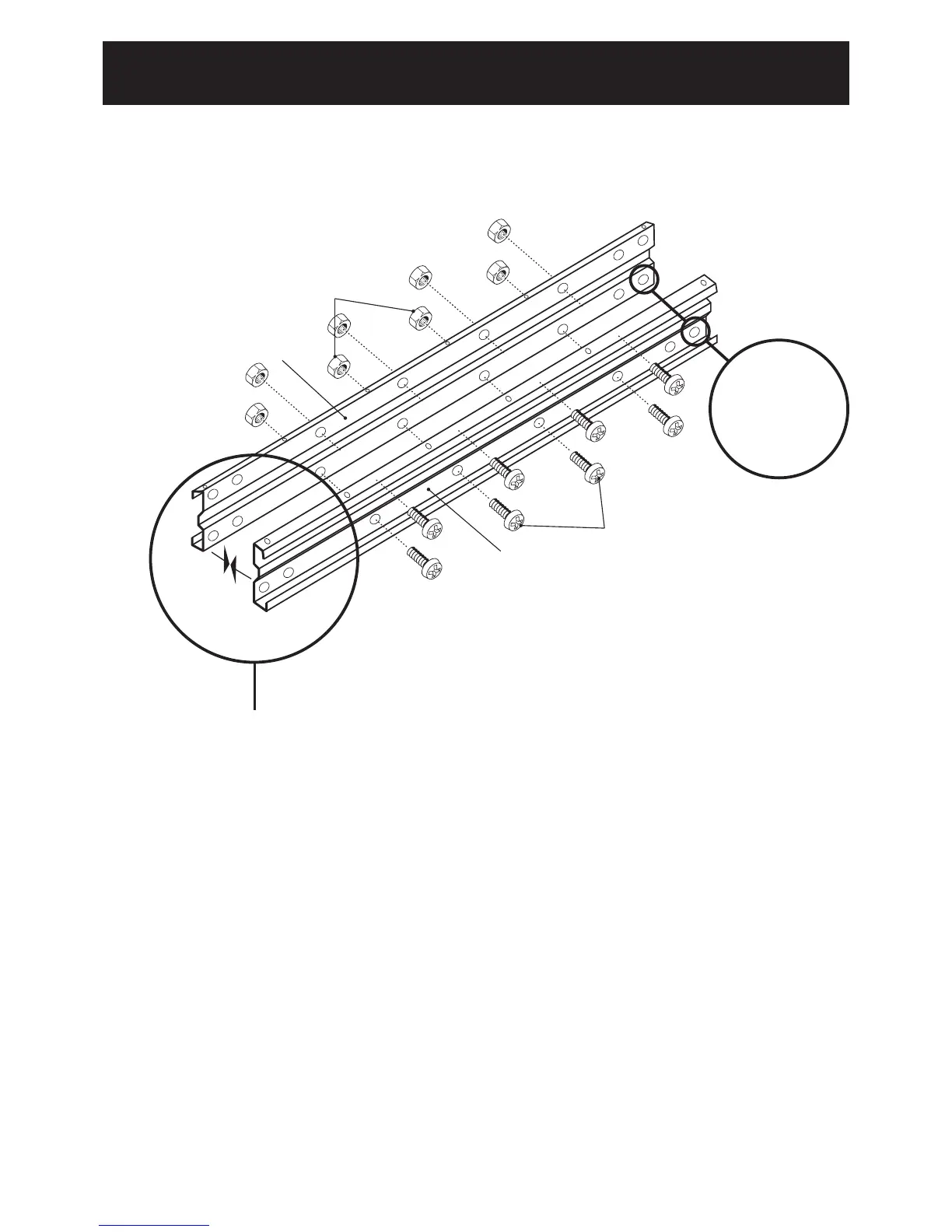

STEP 3 - Side Midwall Brace - SM
X13A
X13B
Note: Line up
the four end
holes
SM7
SM8
}
For 10x15
2x
SM9
SM1
}
For 10x19
2x
Note: The Side Midwall Braces 'SM' have FOUR ROUND HOLES AT EACH
END not oval slots as the Roof Beams 'P'.
Do not fix nuts and bolts in these holes.
Leave the four end holes of 'SM's' empty on both ends for fixing on step 13.
From the 'E' pack join together two pairs of Long Side Midwall Braces (SM8 for 10x15) or
(SM1 for 10x19) to make two Long Side Midwall Braces 'SM'. Ensure when joining the pairs
together that the end round holes are lined up at each end of the Side Midwall Braces as shown in
the diagram.
Always place the joined Long Side Midwall Braces at the same end of the foundation as the rest of
the frame from the 'E' Pack, so not get them mixed up with the Short Side Midwall Braces.
From the 'B' Pack join together two pairs of Short Side Midwall Braces (SM9 for 10x19) or
(SM7 for 10x15) to make two Short Side Midwall Braces 'SM'. Ensure when joining the pairs
together that the end round holes are lined up at each end of the Side Midwall Braces as shown in
the diagram.
Always place the joined Short Side Midwall Braces at the same end of the foundation as the rest of
the frame from the 'B Pack', so not to get them mixed up with the Long Side Midwall Braces.
11
P
P
