X13A
X13B
Note: Top
holes for roof
fixing must be
parallel
P7
P8
}
For 10x15
3x
P9
P1
}
For 10x19
3x
Note: The Roof Beams 'P' have THREE OVAL SLOTS AT EACH END not
round holes as the Side Midwalls 'SM'.
Do not fix nuts and bolts in these slots.
Leave the three end slots of 'P's' empty on both ends for fixing on step 11.

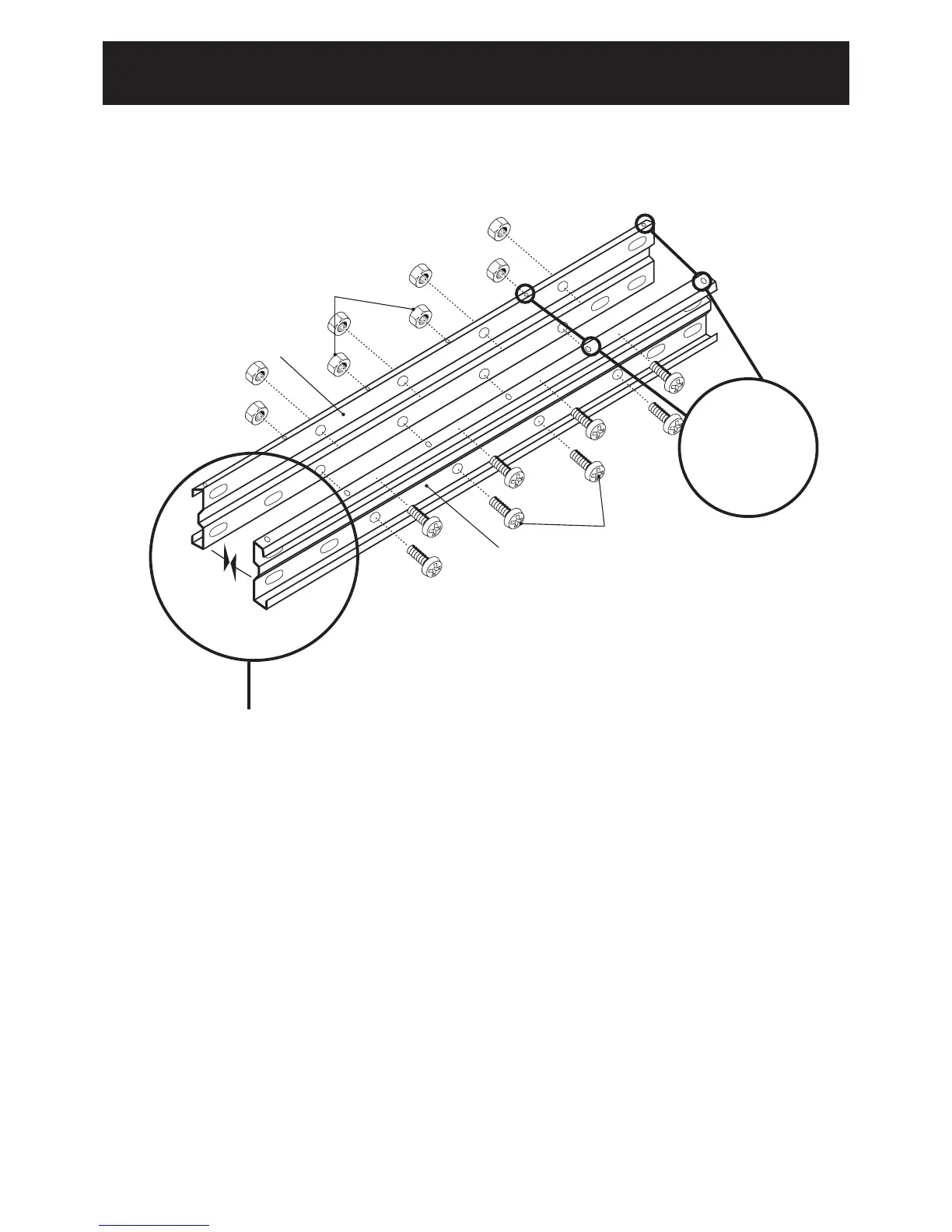

STEP 2 - Roof Beams - P
10
From the 'E' pack join together three pairs of Long Roof Beams (P8 for 10x15) or (P1 for 10x19)
to make three Long Roof Beams 'P'. Ensure when joining the pairs together that the roof fixing
holes are parallel on top of the Roof Beams as shown in the diagram.
Always place the joined Long Roof Beams at one end of the foundation, so not get them mixed up
with the Short Roof Beams.
From the 'B' pack join together three pairs of Short Roof Beams (P7 for 10x15) or (P9 for 10x19)
to make three Short Roof Beams 'P'. Ensure when joining the pairs together that the roof fixing
holes are parallel on top of the Roof Beams as shown in the diagram.
Always place the joined Short Roof Beams at the opposite end of the foundation, so not to get
them mixed up with the Long Roof Beams.
P
P
