30
Hinge
TRAH01001A
HD5/HD52
L1/L12
TOP VIEW
FASTEN THE 'HD52' TO THE DOOR JAMB
'L12/L82' AT THE TOP AND THE BOTTOM
WITH SCREWS 'X12'

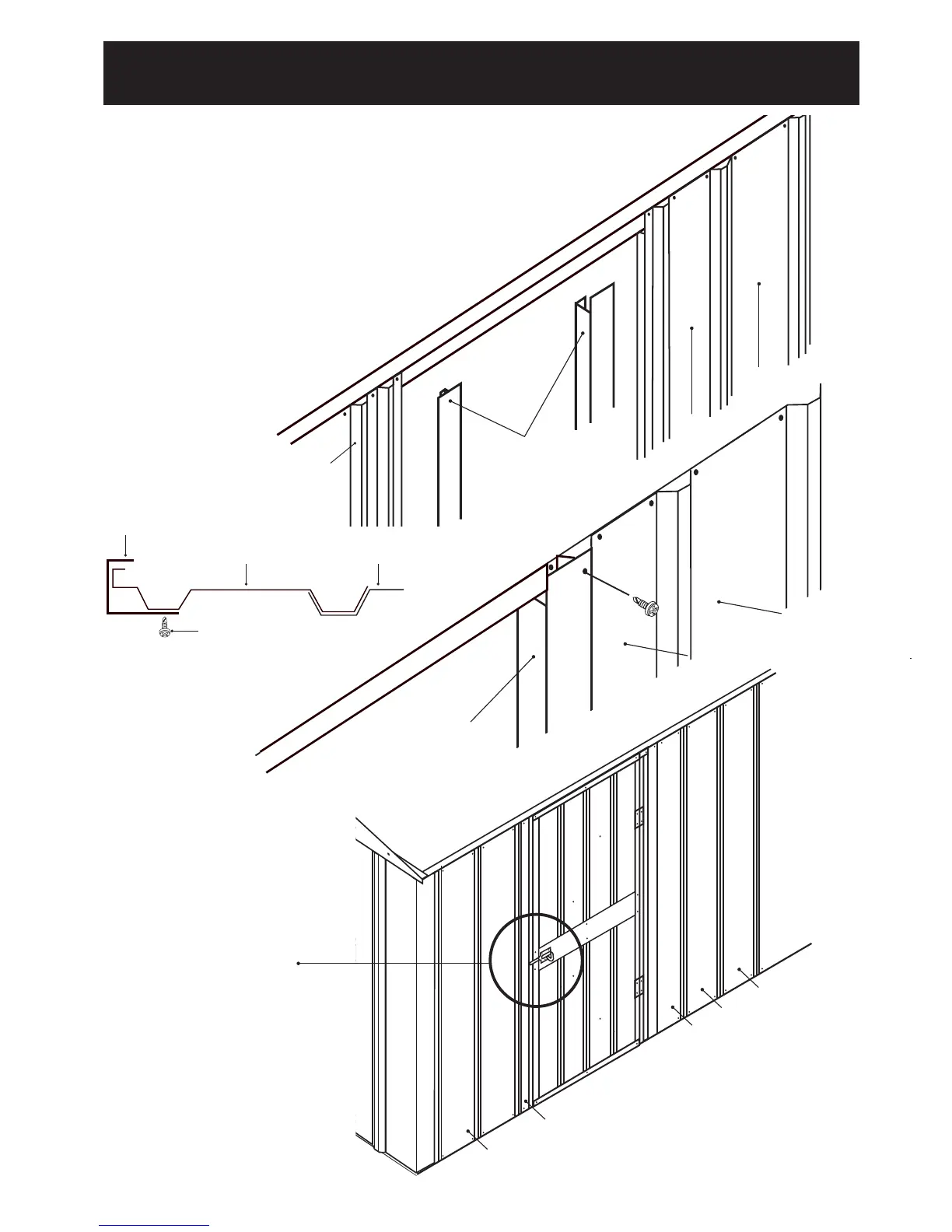

STEP 20 - Hanging the Optional Hinged Door
Fix one 'HD5/HD52' over the door jamb 'L' on the side you want the door to
be hinged from either the (L1/L8) or (L12/L82).
Fix the hinges on the door to the 'HD5/HD52'
with Screws 'X12'.
Slide the second 'HD5/HD52' over the other door jamb
and adjust against the door to allow a 3mm gap.
Then fix the second 'HD5/HD52' to the door jamb.
HD5/HD52
Screw
X12 Screw
HD5/HD52
L1/L12
K4/K42
K4/K42
K4/K42
K/K2
L8/L82
L1/L12
K4/K42
K/K2
Fix the Padbolt 'HA01000A' to
the Padbolt supporter 'PS750'
on the door.
Then fix the locking mechanism of
the Padbolt to the 'HD5/HD52'.
L8/L82
L1/L12
To Next Page
