STEP 9 - Wall Panels and Midwalls
NOTE The Double Hinged Door can be placed on any side of the shed where there is a three wall
sheet gap between the corner panels or the portal frame.
Do not fix the Midwall to the shed where the Double Hinged Doors are to be placed until STEP 10.
To attach the Long Side Midwalls 'SM8 = 1015', 'SM1 = 1019'. Slide one end of the pre-assembled Long
Side Midwall over the Portal Midwall Bracket 'PB2' and fix a screw through the side of the Corner Panel
'F/F2' fixing the screw into the top half wall holes of the joined 'SM8/SM1'.
The 'RM1' Midwall that is positioned under the Gables is to be fitted to the shed after the first Long Side
Midwall is fitted as it slotted between the two halves of the Side Midwalls. Then the opposite Long Side
Midwall can be slotted over the fixed 'RM1' and the Portal Midwall Bracket 'PB2' and fixed to the shed
as done with the first Side Midwall.
Repeat the same procedure with the Short Side Midwalls 'SM7 = 1015', 'SM9 = 1019' and the second
'RM1' at the other end of the shed.
1
11
2
7
9
10
8
3
5
6
4
12
WALL PANEL
FIXING SEQUENCE
X12
No washers 'X11'
needed on wall
panels.
Note: Do not
connect with
nuts and bolts.
This allows
movement in the
shed when fixing
roof sheets.
RM1
SM7 FOR 10x15
SM9 FOR 10x19
PB2
PF1/PF12
SM8 FOR 10x15
SM1 FOR 10x19

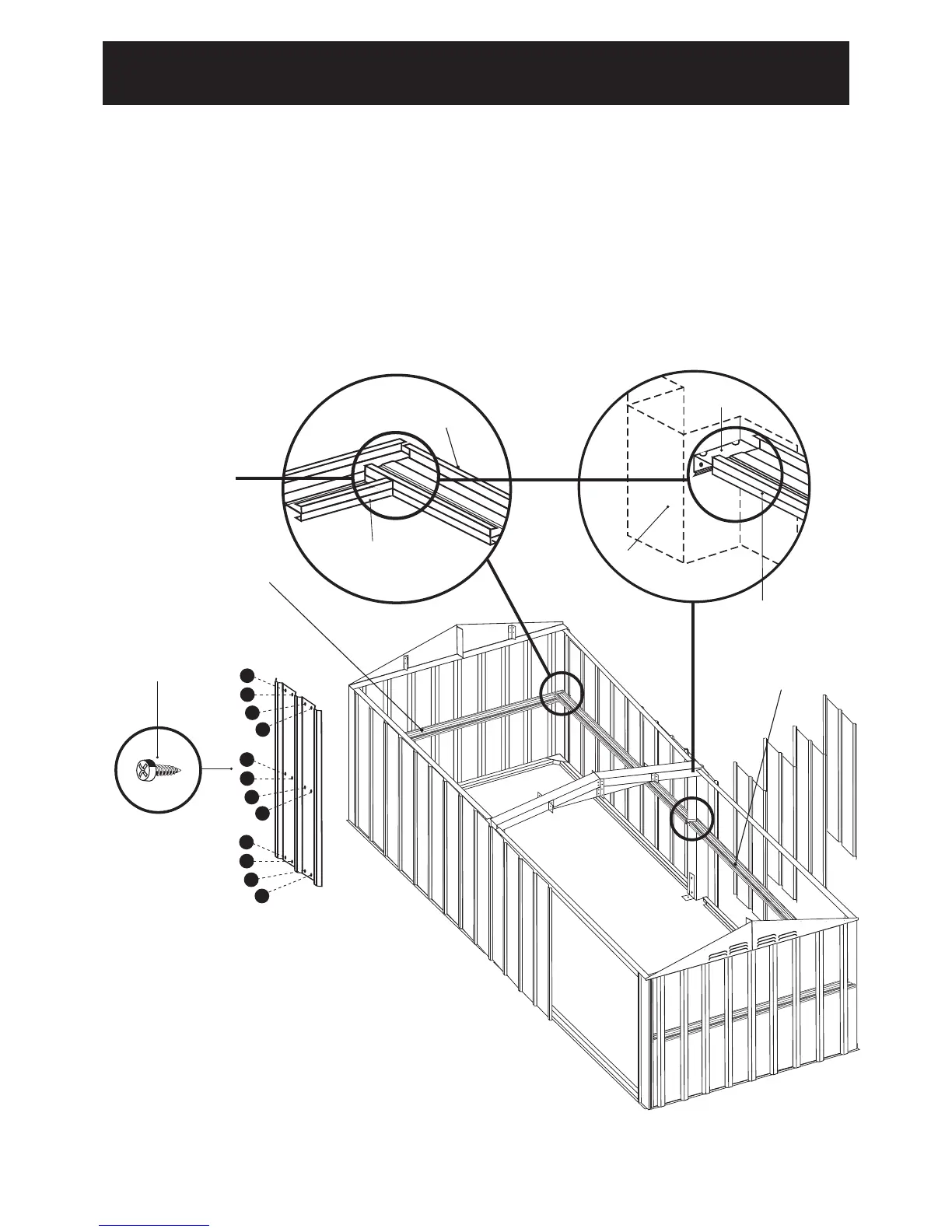

Fix the Wall Panels 'K/K2' using screws in
the fixing sequence shown in the diagram.
When fixing the Wall Panels to the shed, start
from the back of the side and continue sheeting
laying them on top of each other towards the front.
When you reach the previously fixed Wall Sheet at the
portal frame and the Front Corner Panel underlap the Wall
Panel to conceal all the seams and to give the appearence
of the wall being one continuious form.
