Oldfields Treco - STEP 13: Roof Panels Installation

STEP 13 - Roof Panels
U2
U3
If your shed model is supplied with the optional skylight use a metal Roof Panel 'S1' as a template
and using the self tapping screws provided screw holes into the skylight. The skylight is designed
to be fixed on top of the Roof Panels each side of it. Always start sheeting from the side that the
skylight is to be positioned on.

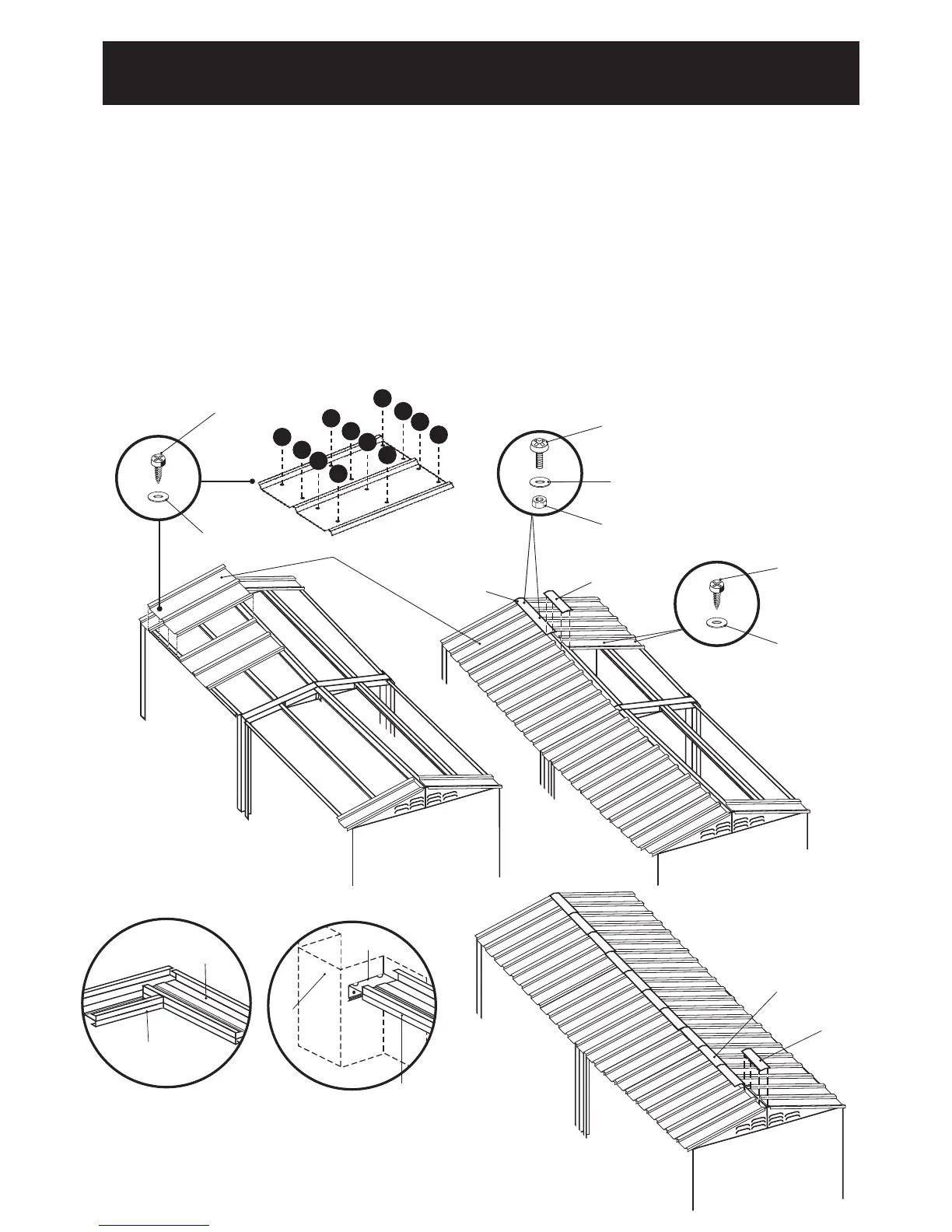

Start fixing the Roof Panels (screwing in the order shown) from one side at the back of the shed
towards the front placing each panel on top of the previous.
Then start sheeting from the back of the shed on the other side fixing one Roof Panel then fixing
the Roof Capping 'U3/U2's' as you continue towards the front of the shed.
Note The Long Roof Capping 'U3's' are to be placed at each end of the shed. The short Roof
Capping 'U2' is to be placed between these as shown in the diagram below.
RM1
SM7 FOR 10x15
SM9 FOR 10x19
PF1/PF12
PB2
SM8 FOR 10x15
SM1 FOR 10x19
On completion of
the roof join RM1
to SM's and SM's
to PB2 with nuts
and bolts.
U2
U3
X13A
X11
X13B
Panel to
Panel
Nut & Bolt
X12
X11
Panel to
Frame
X12
X11
SKY10
1
3
2
4
9
11
12
10
5
7
8
6
21
