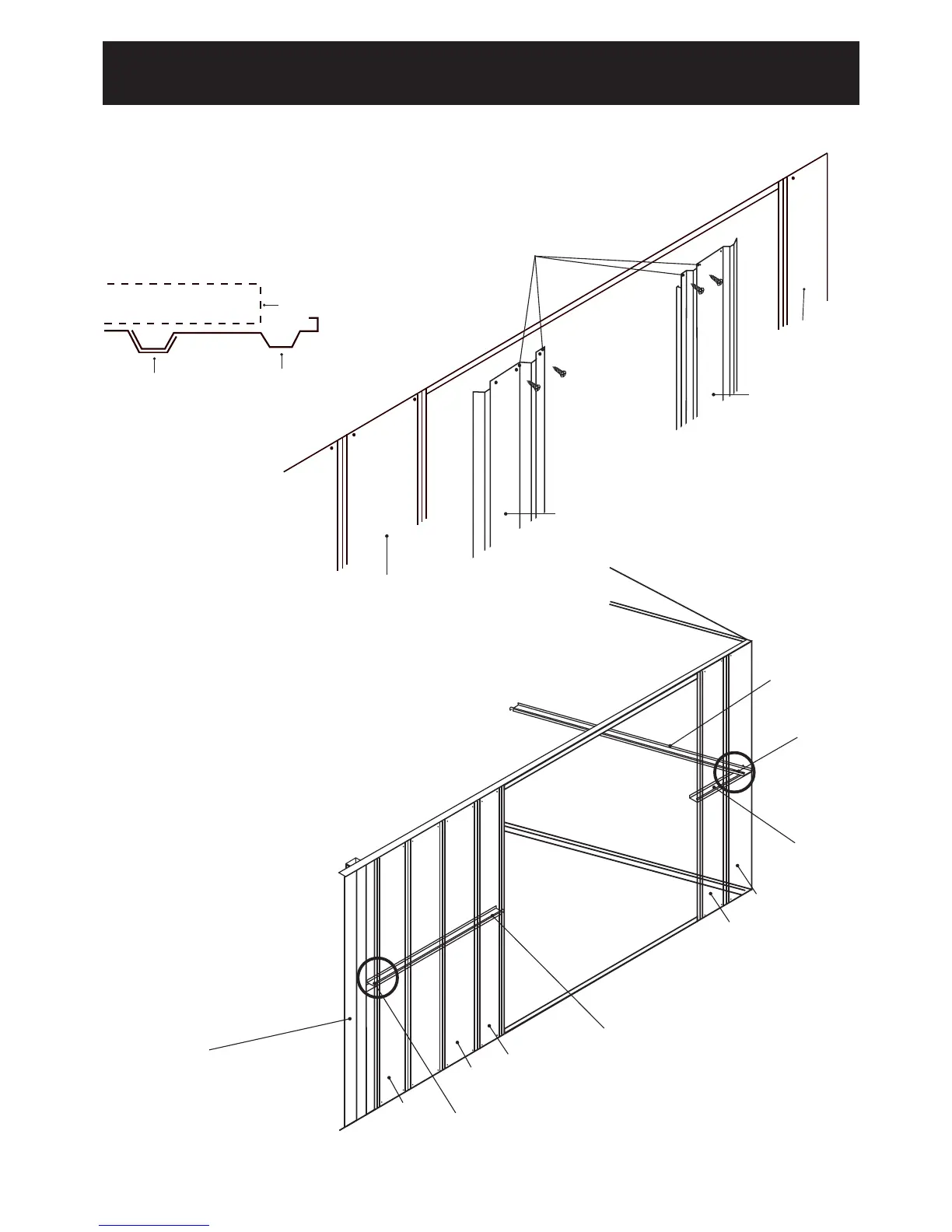

STEP 10 - Double Door Frame Construction
L6/L62
Door Jambs
K/K2
Wall Panel
L6/L62
Door Jambs
Attach cut midwalls SM
to either side of the door
opening with screws 'X12'
through the wall sheet
then attach each end into
either the RM1 or the PB2
with nuts and bolts. Only
connect the two cut SM
pieces. As this will not
restrict movement in the
shed when fixing the roof
sheets. Do not connect any
other SM's to RM1's or
PB2's
until Step 13.
CUT LONG
SIDE MIDWALL
'SM8/SM1'
CUT LONG
SIDE MIDWALL
'SM8/SM1'
K/K2
L6/L62
K/K2
L6/L62
F/F2
RM1
'PF1/PF12'
Shown with no wall panel 'K/K2'
for viewing purposes only.
PB2
Connect the cut 'SM' with
the 'PB2' with nuts & bolts
PB2
Connect the
cut 'SM1' with
the 'RM1' with
nuts & bolts
18
L6/L62
K/K2
Cut Midwall
Place pre-assembled
Midwall into position
and mark where
to cut using the
diagram above.
Cut with Hacksaw
or Tin snips
FIX WITH THE SELF
TAPPING SCREWS 'X12' OR
PRE-DRILL HOLES USING A
2.8mm DRILL BIT
Note. The diagrams below show construction of the door fame on the long side of the shed.
Adjust codes if the door opening is to be placed elsewhere on the shed
F/F2
Corner Panel
TOP VIEW
Place rib of door jamb 'L6/L62' under
rib of wall panel 'K2/F2' screw to Top
Rail 'H8/H1' and Base Rail 'B8/B1'.
