STEP 11 - Roof Beams
PF2
PF2
PF4
PF4
GABLE END
Use nuts and bolts for step 11.

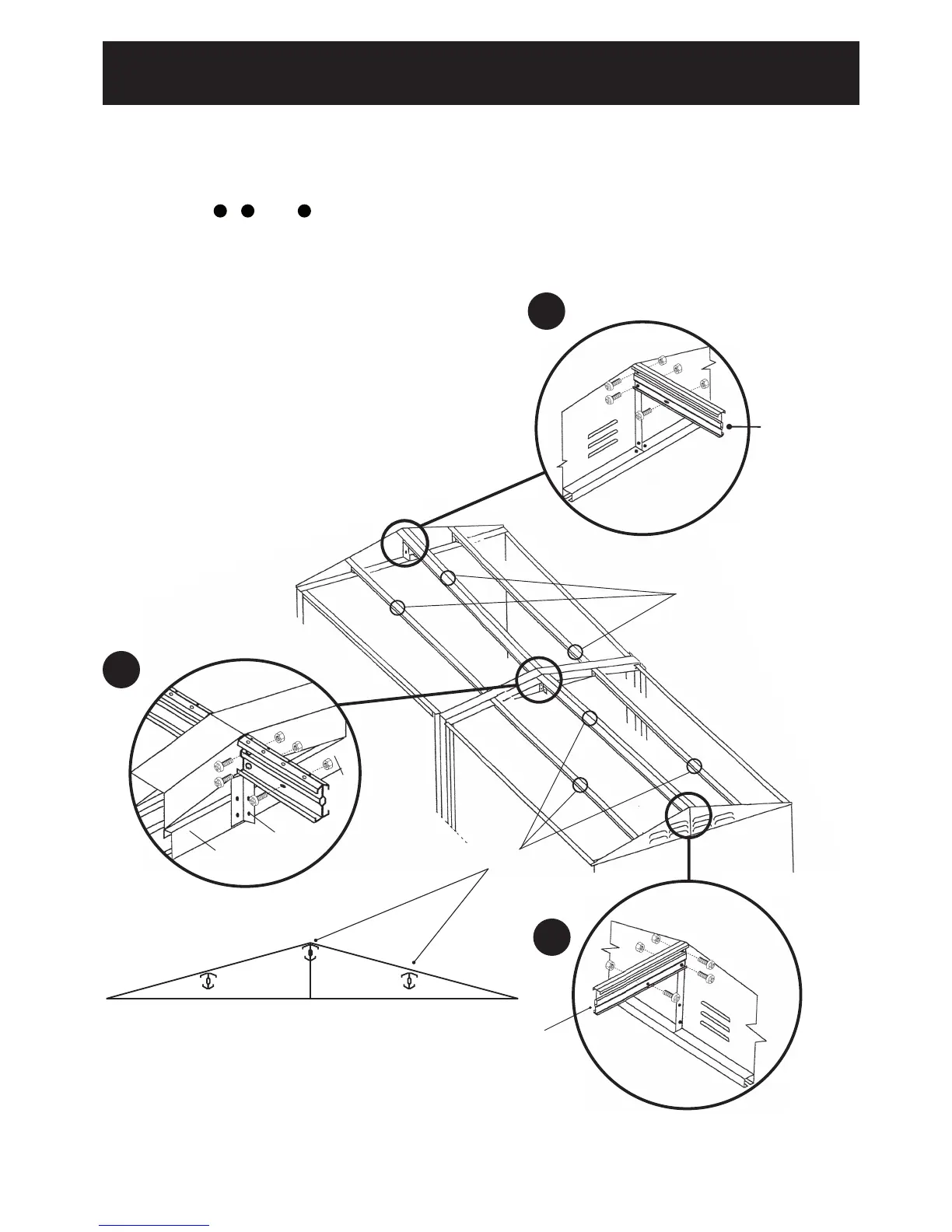

Slide the pre-assembled Centre Roof Beams 'P' down over each side of the 'X34' on the Portal
Frame and down over each side of the join in the gable.
Fix the pre-assembled Centre Roof Beams 'P's into position using nuts and bolts in the end slots
as in diagram
1
,
2
and
3
.
Fix back centre 'P'. Following the instructions above as in diagram 3.
Fix pre-assembled Side 'P's down over each side of the 'X15A1's on the gables and the X15's
on the portal frame.
Pre-assembled
Centre Roof
Beams 'P'
X34
3
2
1
END VIEW
GABLE END
19
Pre-assembled
Centre Roof
Beams 'P'
Pre-assembled
P8/P1
Pre-assembled
P7/P9
