STEP 12 - Roof End Panels
20
RQ1
RQ1
All fasteners on roof need washers 'X11' attached.

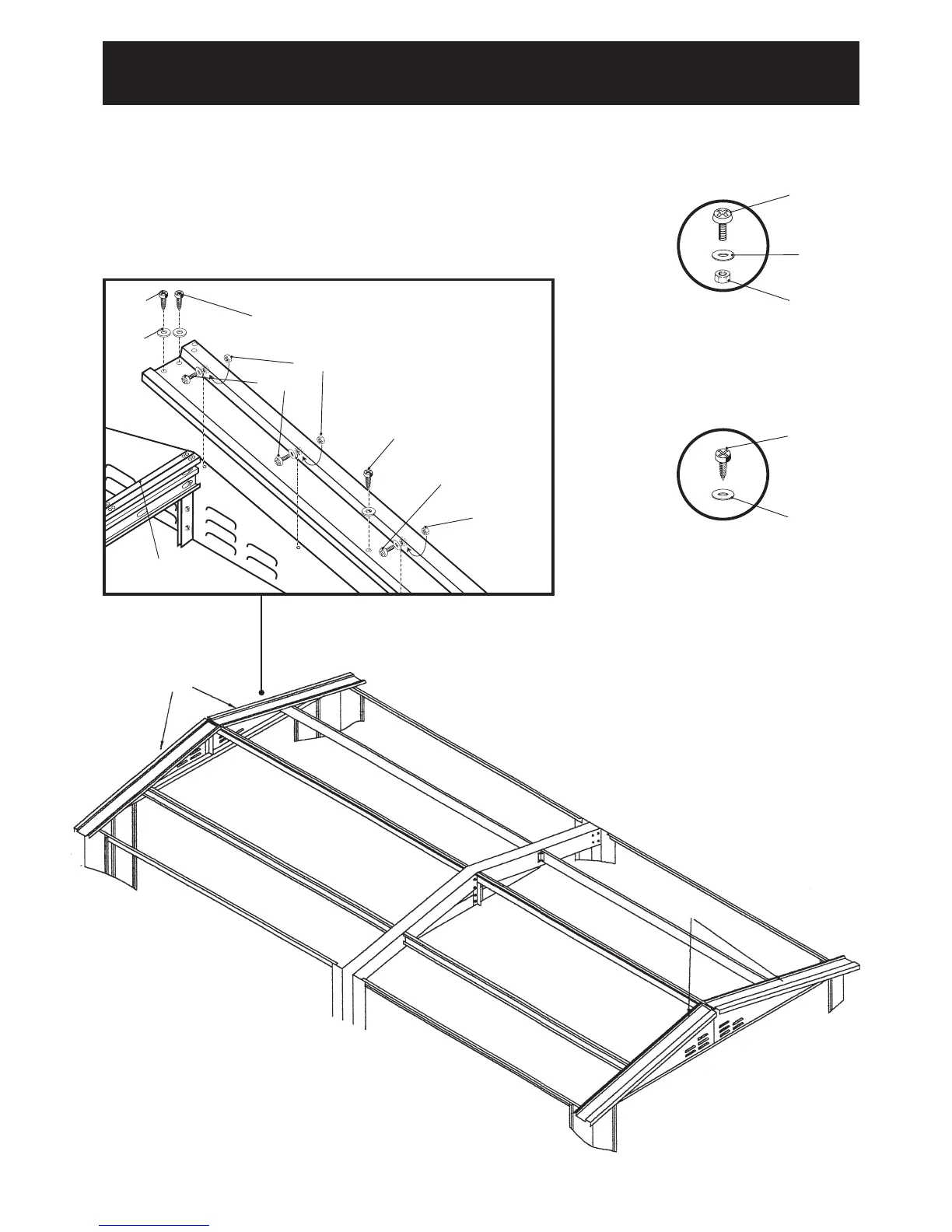

Fix all four Roof Ends 'RQ' with Bolts, Nuts and washers from top of
appex to the side wall, as shown in diagram below.
Fix screws & washers to roof beam(s) 'P' and side rails 'H'.
X12
X11
Panel to
Frame
X13A
X11
X13B
Panel to
Panel
Bolt,
Washer &
Nut
X12
P
X12
X11
X13B
X13A
X13B
X13A
X12
Note: Please seal all un-
used pre-punched holes
in the roof using bolts
and nuts 'X13A + X13B'
and plastic washers
'X11' supplied.
Screw &
Washer
