Oldfields Treco - Single Hinged Door Parts List

27

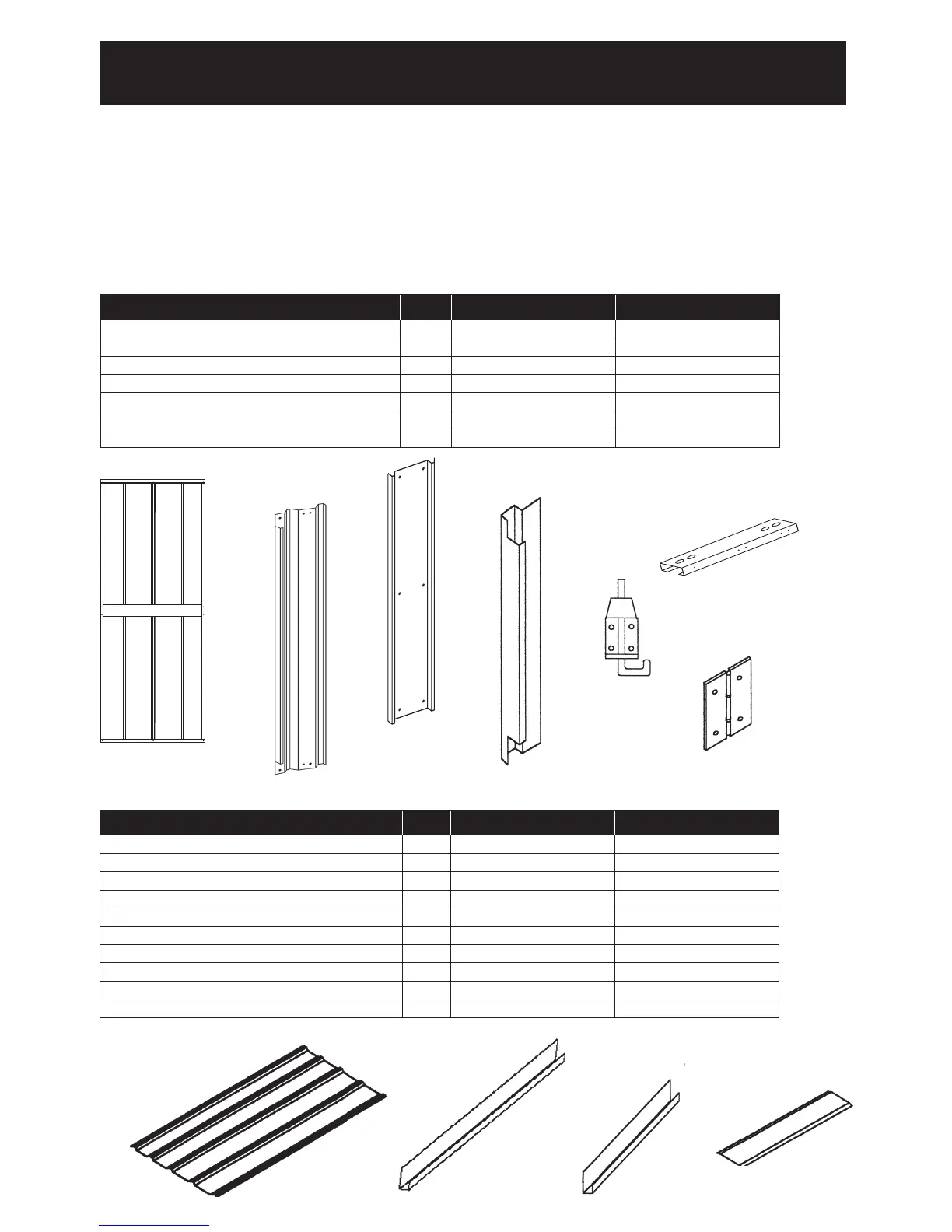

PARTS LIST OPTIONAL SINGLE HINGED DOOR
ASSEMBLED DOOR PARTS LIST Qty 1.78m Wall 2m Wall
Door Panel 1 TRSCHDX TRSCHDX2
Door Jamb 2 L1 / L8 L12 / L82
¼ Wall Panel 1 K4 K42
Door Jamb Supporter 2 HD5 HD52
K Frame 2 H4A H4A / C1270
Hinges 3 TRAH01001A TRAH01001A
Padbolt 1 TRHA01000A TRHA01000A
UNASSEMBLED DOOR PARTS LIST Qty 1.78m Wall 2m Wall
Door Panel Unassembled 1 TRSCHDX1 TRSCHDX12
Door Top / Bottom Door Trim 2 C755 C755
Door Side Door Trim 2 C1750 C1970
Padbolt Plate 1 PS750 PS750
Door Jamb 2 L1 / L8 L12 / L82
¼ Wall Panel 1 K4 K42
Door Jamb Supporter 2 HD5 HD52
K Frame 2 H4A H4A / C1270
Hinges 3 TRAH01001A TRAH01001A
Padbolt 1 TRHA01000A TRHA01000A
K42/K4
1/4 Wall Panel
L1/L8/L12/L82
Single Door Jamb
HD5/HD52
Door Jamb Supporter
TRSCHDX/TRSCHDX2
Assembled Door
H4A/C1270
K Frame
TRHA01000A
Padbolt
TRAH01001A
Hinge
TRSCHDX1/TRSCHDX12
Door Panel Unassembled
C1750/C1970
Door Side Door Trim
C755
Door Top / Bottom Door Trim
PS750
Padbolt Plate
The Single Hinged Door Kit is the same size as Two Wall Sheets, therefore the A or D Packs will
have Two Wall Panels less than stated on page 3. A Hacksaw or a pair of Tin snips is required to
cut the Midwall for the optional hinged door installation.
Not all holes are pre-punched, use the self tapping screws provided with a battery drill or
pre-drill using a 2.8mm drill bit.
The Optional Hinged Door kits are packed in the A or D Packs if it is unassembled or it will be in a separate
box if it is assembled. Not all 1015 / 1019 models are provided with the Optional Hinged Door. This item is
an extra if you require an Optional Hinged Door they are available from your local Treco Agent.
