Oldfields Treco - Optional Single Hinged Door Construction

29
875mm
875mm
1060mm
910mm
1.78m
Wall
2m
Wall
FRONT OF DOOR
POSITION K-FRAME TO
THE BACK OF THE DOOR
EDGE TRIM AND SECURE
WITH 'X12' SCREWS AT
EACH END.THEN FROM
THE FRONT SIDE FIX
SCREWS THROUGH THE
DOOR PANEL INTO THE
K-FRAME
150mm
150mm
Centre
985mm
985mm
875mm
875mm
1.78m
Wall
2m
Wall
BACK OF DOOR
C755
PS750
C755
SCHDX1/SCHDX12
Door Panel
C1970
(2m)
K Frame
H4A - 1105mm = 1.78m WALL
H4A - 1105mm = 2m WALL
Hinges

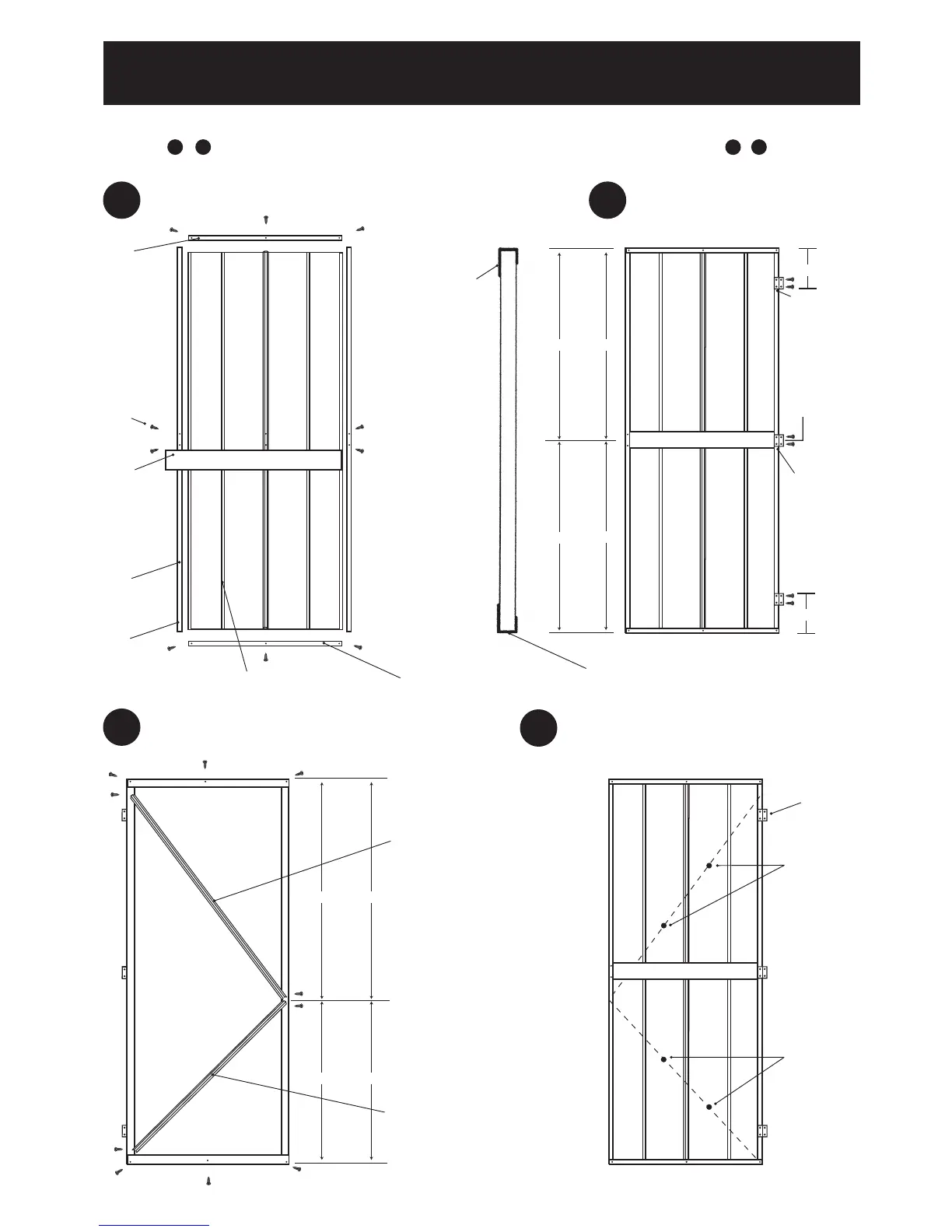

STEP 19 - Construction of Optional Single Hinged Door
FRONT OF DOOR
C1750
(1.78m)
1 2
3
4
FRONT OF DOOR
Hinge
TRAH01001A
Screws
X12
X12
Screws
X12
Screws
C755
SIDE VIEW OF DOOR
ALL DOOR
TRIMS 'C'
WITH LONG
LIP ON
INSIDE OF
DOOR
K Frame
H4A - 1105mm = 1.78m WALL
C1270 - 1270mm = 2m WALL
X12
Screws
Single Hinged Door Kits vary from a non assembled door that needs to be fully constructed as in
diagram 1 – 4. To a pre-assembled door that only needs the Hinges and K Frame 2 - 4.
1
2
4 4
