Oldfields Treco - STEP 7: Corner Panels and Portal Frame

15
F/F2
Corner Panel
PORTAL
FRAME
X12
H7/H9
H8/H1

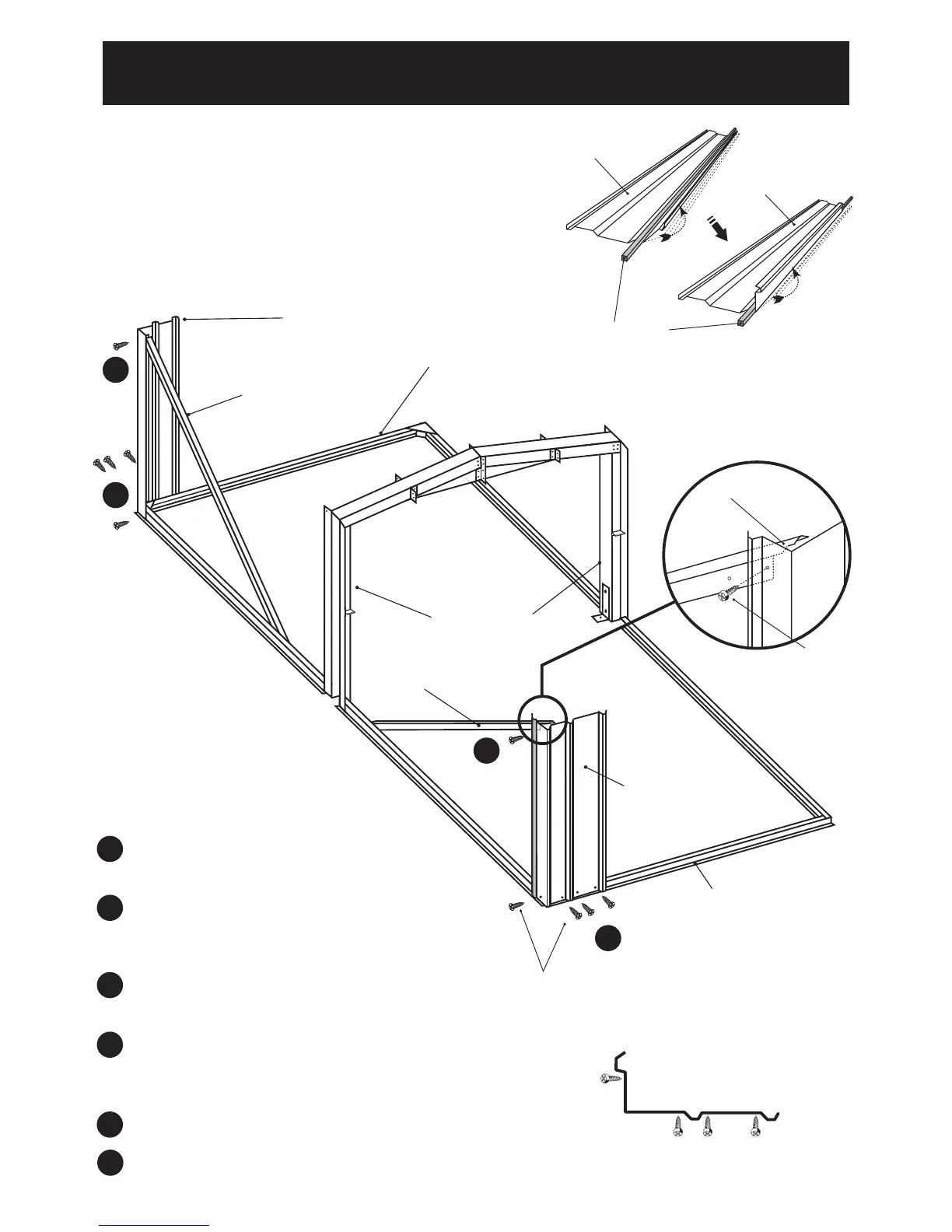

Fix Corner Panel F/F2 with the long
side to be fastened to Gable End Base Rail A1.
Attach Short Top Rail H7/H9 to the Corner
Panel. This will stabilise panels when attaching
Portal Frame.
Fix the opposite corner panel F/F2 to opposite
Gable End Base Rail A1.
Attach Long Top Rail H8/H1 to the Corner Panel.
This will stabilise panels when attaching
Portal Frame.
Repeat steps 1-4 on the other side.
Place pre-assembled Portal Frame in centre
of the shed as shown in the diagram.
Corners 'F/F2' are supplied with a 45° bend. With
a supporter (any sized straight edge that is longer
than the panel NOT SUPPLIED) bend the panels
90° manually. (Do not over bend).
F/F2
Supporter
H8/H1
H = Top Rail
Curved side of H rail is
for roof fixing, flat side
for wall fixing
X12
1
234
F/F2
STEP 7 - Corner Panels and Portal Frame
F/F2
Corner panel
A1
Gable End
Base Rail
1
2
3
4
A1
Gable End Base Rail
5
F/F2
Note: When fastening
corner panels attach
screws in order as shown.
6
1
2
3
4
