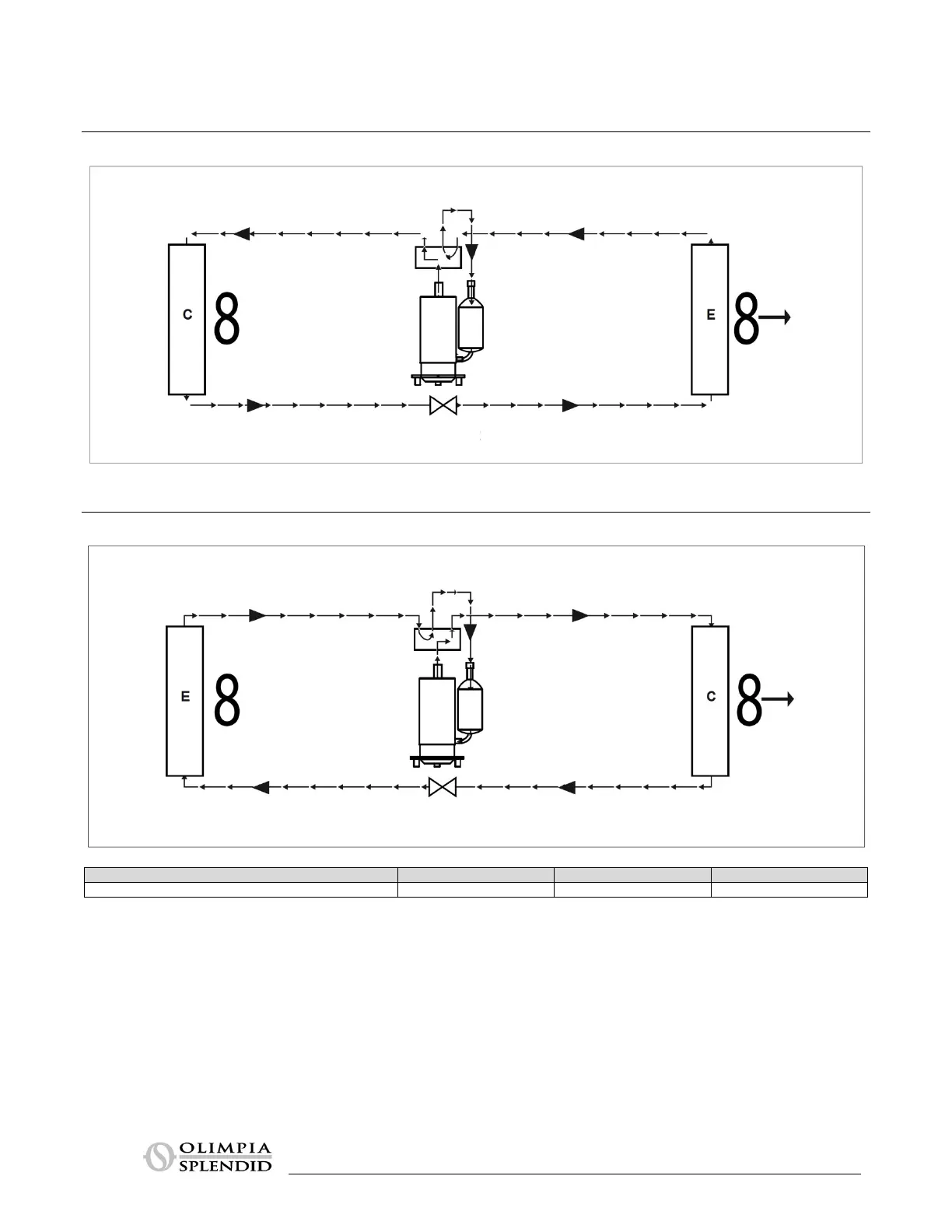

5 COOLING CIRCUIT
5.1 Cooling circuit with 4-way valve
5.2 Heating circuit with 4-way valve
DESCRIPTION
TYPE
QUANTITY
UNITS
Refrigerant gas charge (factory)
R-410 A
652 (1-7)
gr (lbs-oz)
NOTE: The refrigerant circuit is sealed.
COOLING
HEATING
CAPILLARY
CAPILLARY
OUTSIDE
HOUSE
OUTSIDE
HOUSE
