Olimpia splendid 02020 - Back Panel Removal; External Fan Removal

34

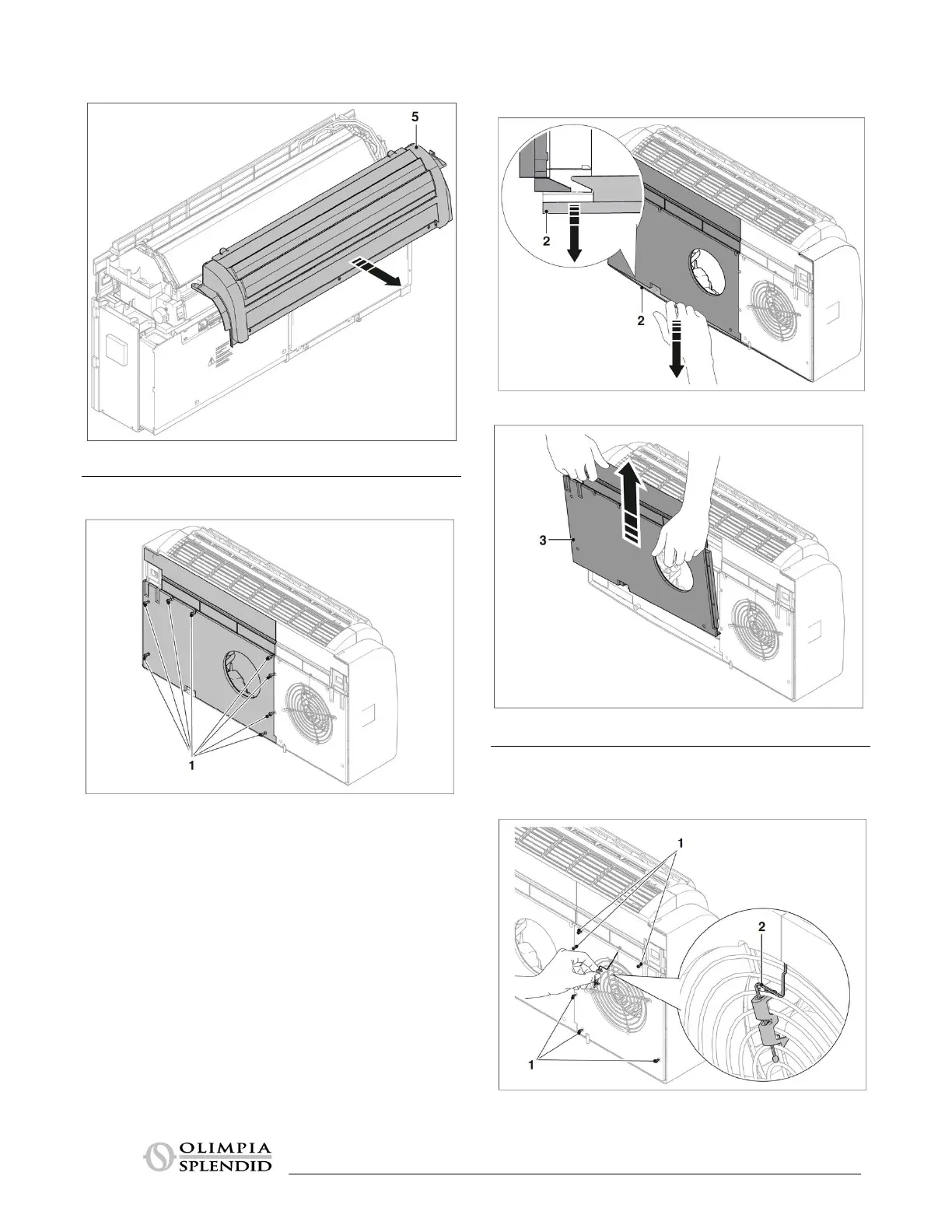

Remove the rear grille (5).
9.6 Back panel removal
Exert slight downward pressure on the lower plastic part of the housing
(2) to release the back panel (3).
Remove the bottom of the panel (3).
9.7 External fan removal
Remove all the mounting screws (1).
Remove the external air sensor (2).
