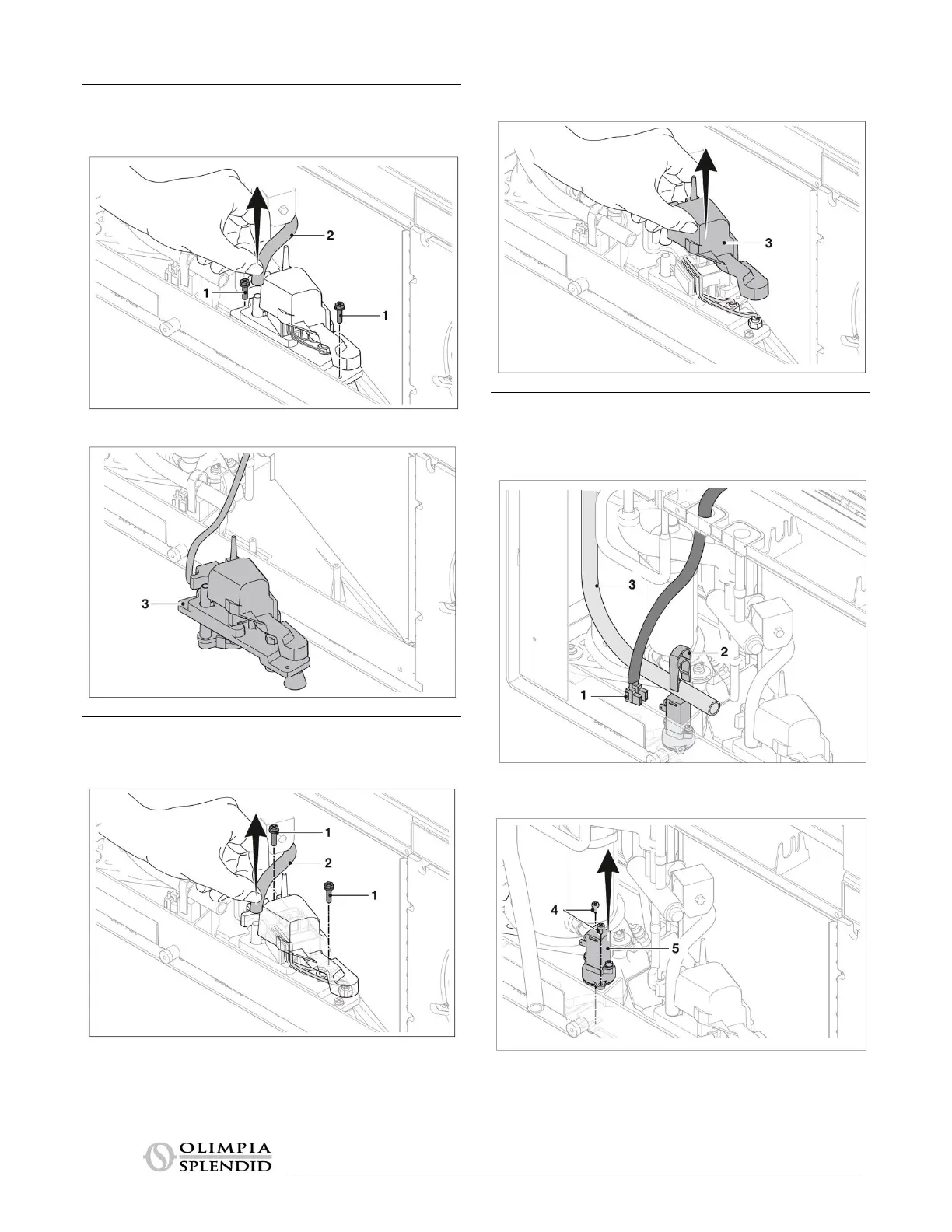

9.14 Pump assembly – sensors – valve removal
Remove the condensate tube (1).
Remove the mounting screws (2).
Carefully remove the assembly (3), paying attention to the wiring.
9.15 Cabling cover removal
Remove the mounting screw (1) from the cover and the tube from the
condenser (2).
Remove the cover (3) being careful not to damage the electrical
connections.
9.16 Thermoactuator assembly removal
Remove the connectors (1) from the thermoactuator.
Remove the locking clip (2) from the condensate drain tube and move the
tube.
Remove the mounting screws (4).
Remove the thermoactuator assembly (5).
