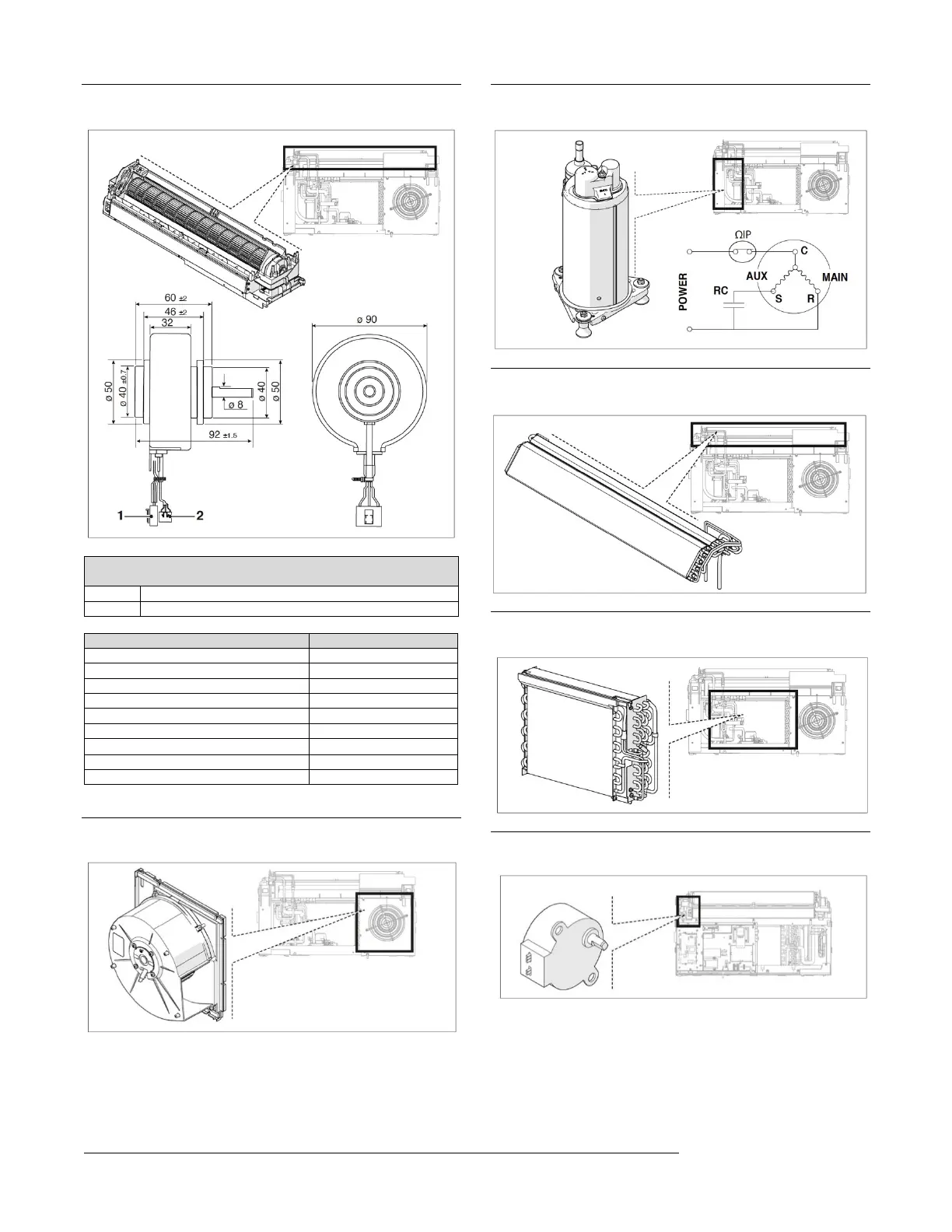

8.11 Internal (tangential) fan
REF.
No.
DESCRIPTION
1
VHR-5N SVH-21T-P1.1
2
XHP-3N SXH-001T-P0.6
DESCRIPTION
Voltage/Frequency V AC / Hz.
115 / 60
Intake power W
37.3 ±15%
Outlet power W
15 (rated torque)
Current A
0.228 ±15%
Speed rpm
1360 ±30
No. of poles
4
Condenser µF
3.5
Insulation Class
E
Protection °C
Thermal prot. 110 ±15%
8.12 External fan
8.13 Compressor
8.14 Evaporator assembly
8.15 Condenser assembly
8.16 Louver motor
