MAESTRO SMART 17
6 INSTALLATION

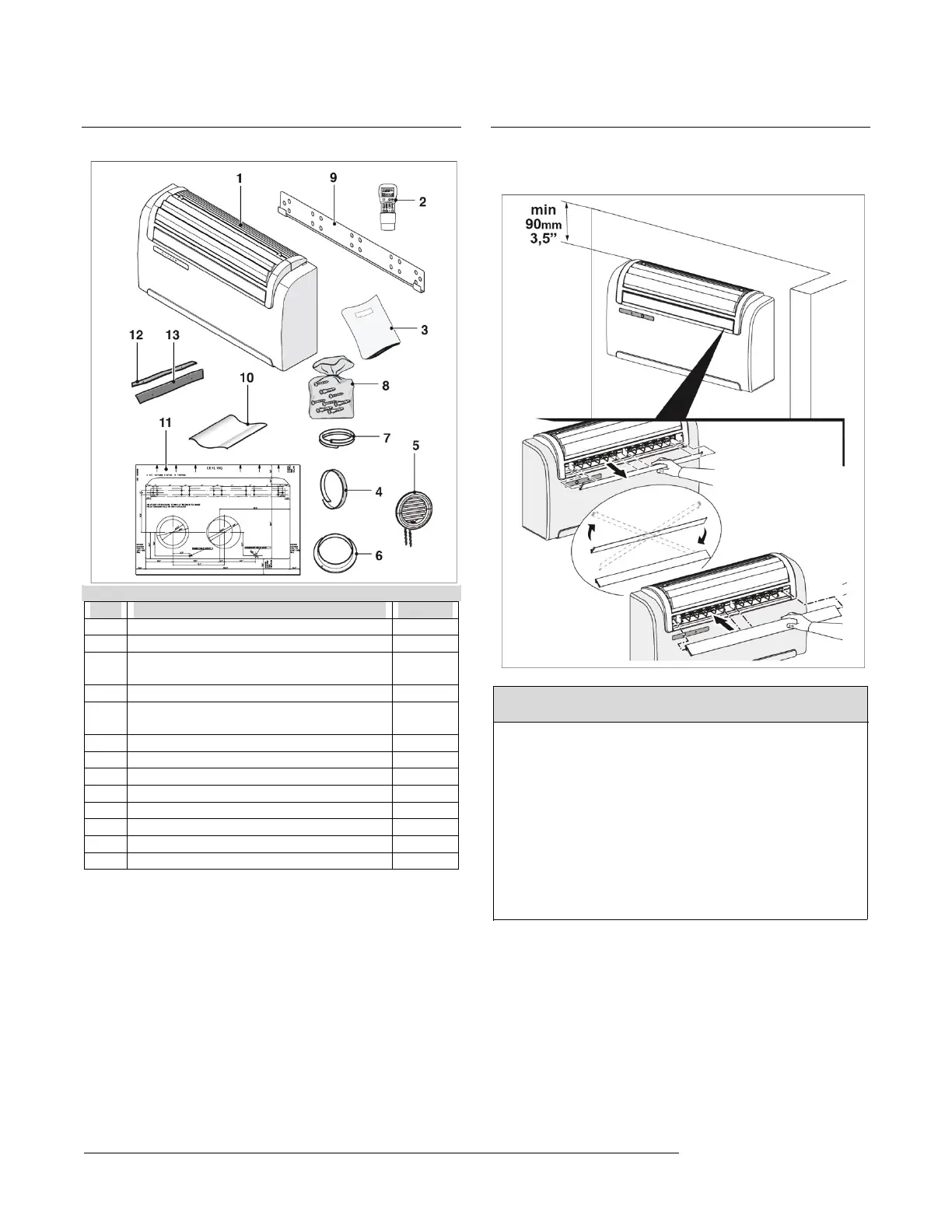

6.1 Included items
REF.
DESCRIPTION
PCS.
1
Maestro Smart unit
1
2
Remote control (incl. batteries)
1
3
Operating and maintenance manual and
guarantee
1
4
Adhesive insulating strip
2
5
External grid for air intake and outlet, including
small chains and grill installation kit
2
6
Internal flange
2
7
Condensate drain tube
1
8
Screws and anchors
1
9
Bracket for mounting to the wall
2
10
Sheet for wall sleeves
2
11
Template for drilling holes
1
12
Air purification filter (green)
1
13
Activated carbon filter (black)
1
6.2 Position
6.2.1 Installation at ceiling level
NOTE
The unit is suitable for installation in an upper wall position, with air
flowing downward, which is possible due to the 180° louver rotation.
After changing the air outlet louver, it is necessary to configure the
electronics controlling the unit using the Auto Test Mode procedure
(See p. 13).
To optimize air distribution and comfort in the environment, the air flow
may be modified by changing the position of the air outlet louver and
setting a suitable correction to the ambient temperature T_camb
equivalent to +3°C(5.4°F)(it is not possible to separate the two
operations).
