MAESTRO SMART 31
NOTE
RISK OF FIRE
The use of a torch requires extreme caution. Follow all suggested
safety precautions and protect surrounding areas with fireproof
materials. Have an extinguisher within reach. Failure to follow these
instructions may cause moderate to serious damage.
WARNING
MOVING PARTS
RISK OF CUTS
- Do not operate the unit if it is out of service or
without the filter installed.
- Do not place hands within the operating area of the
fan.
Failure to follow these instructions may cause serious
injury.
WARNING
DANGER: MOVING PARTS
Reinstall all panels before operating the unit.
Failure to follow these instructions may cause serious
personal injury or death and damage to the product.
WARNING
Steps for maintenance and disassembly of
components requires the presence of two operators.
NOTE: All steps described below are represented by illustrations of the
unit with front refrigerant charging and they are also valid for the unit with
rear refrigerant charging.
If there is a difference between the 2 types of units, the steps to be
performed on both devices are shown.

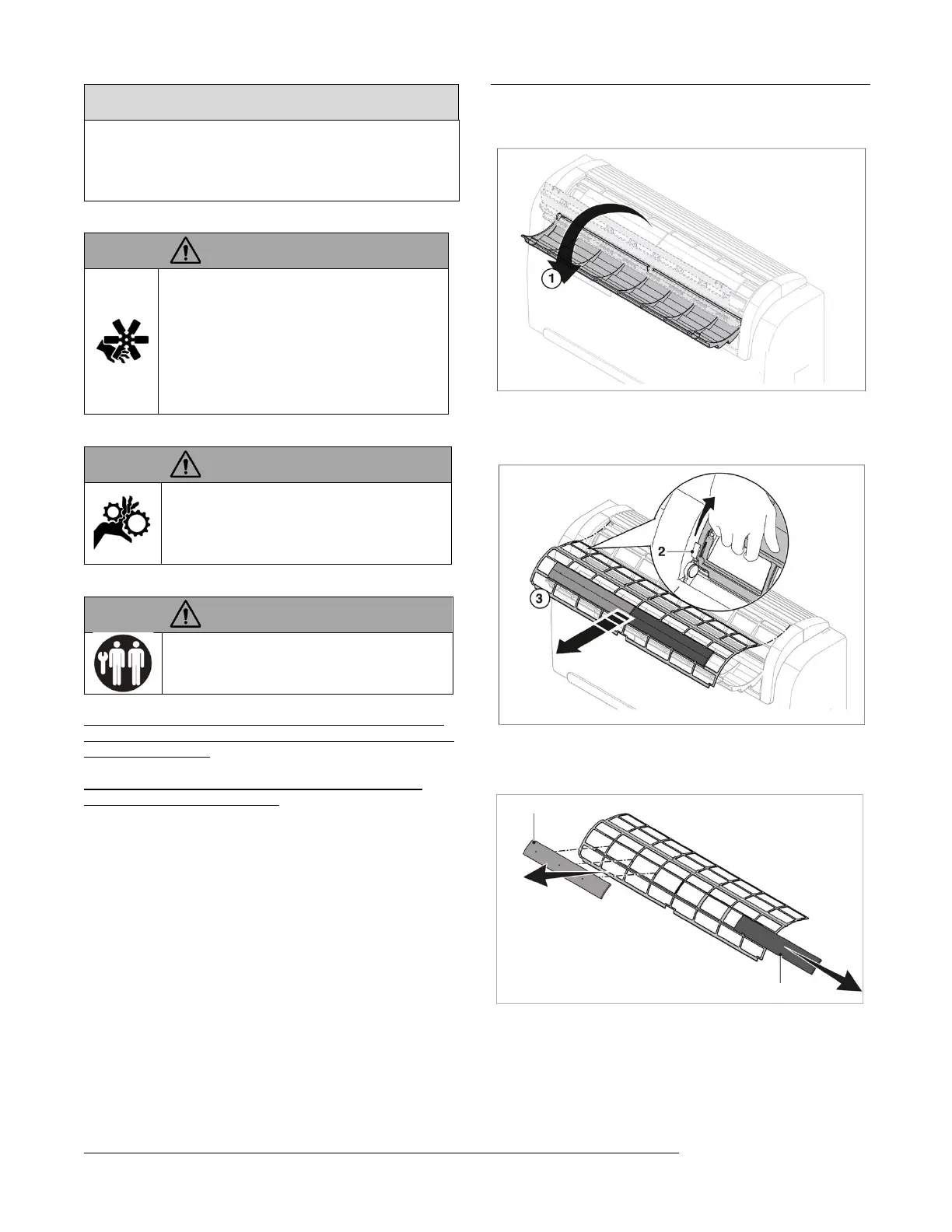

9.1 Filter removal
Open the upper grille (1).
Unfasten the filter assembly (2), slide forward to remove the filter
assembly (3).
Remove the air purification filter (1 – green) and the carbon filter (2 –
black) from the filter assembly.
1
2
