Olimpia splendid 02020 - Body and Front Panel Removal; Body Removal Instructions; Front Panel Removal Procedure

32

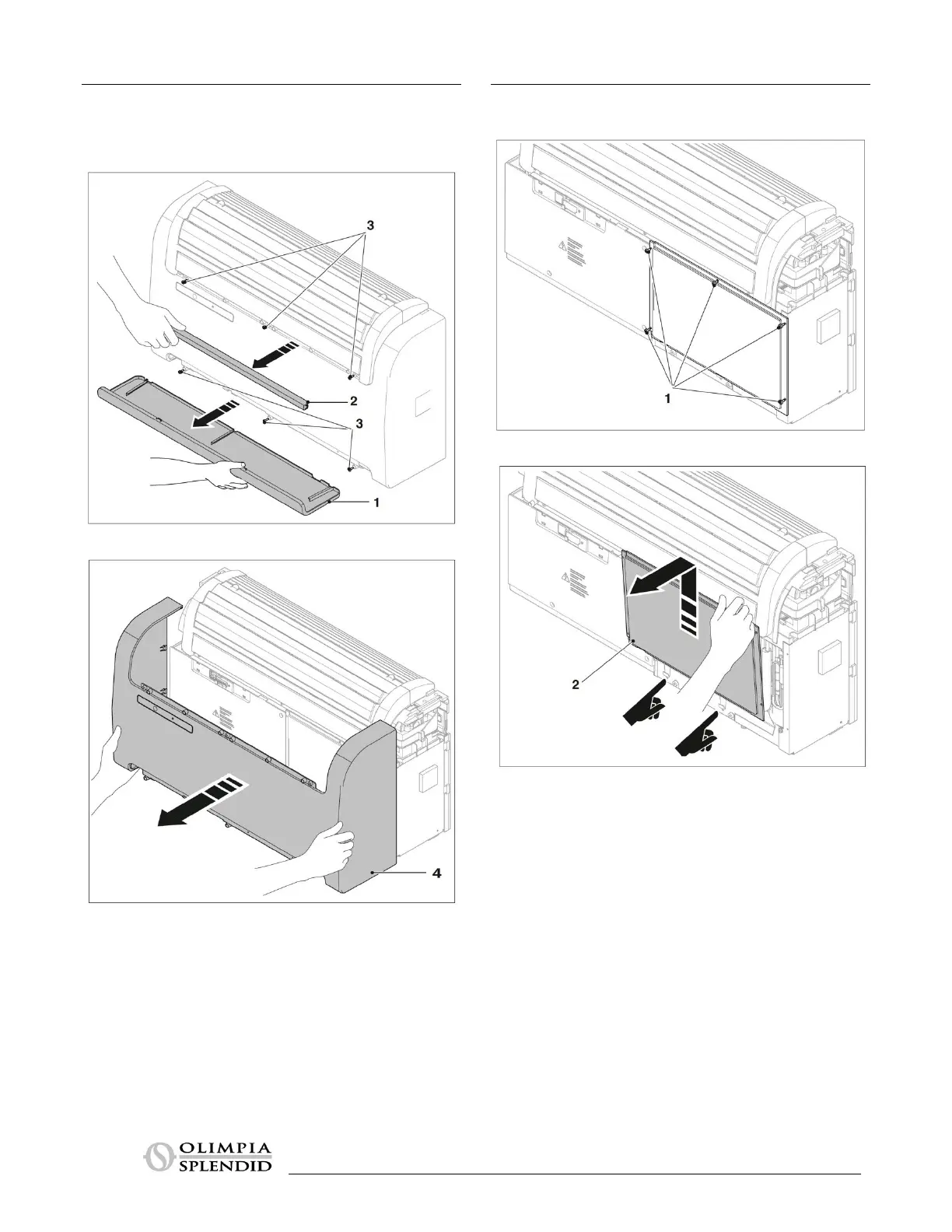

9.2 Body removal
Remove the lower cover (1).
Remove the front cover (2).
Remove the mounting screws (3).
Remove the body (4).
9.3 Front panel removal
Remove all the mounting screws (1).
Lift up and remove the front panel (2).
