Olimpia splendid 02020 - External Temperature Sensor; Evaporator Assembly Sensor; Condenser Assembly Sensor; Float Switches

28

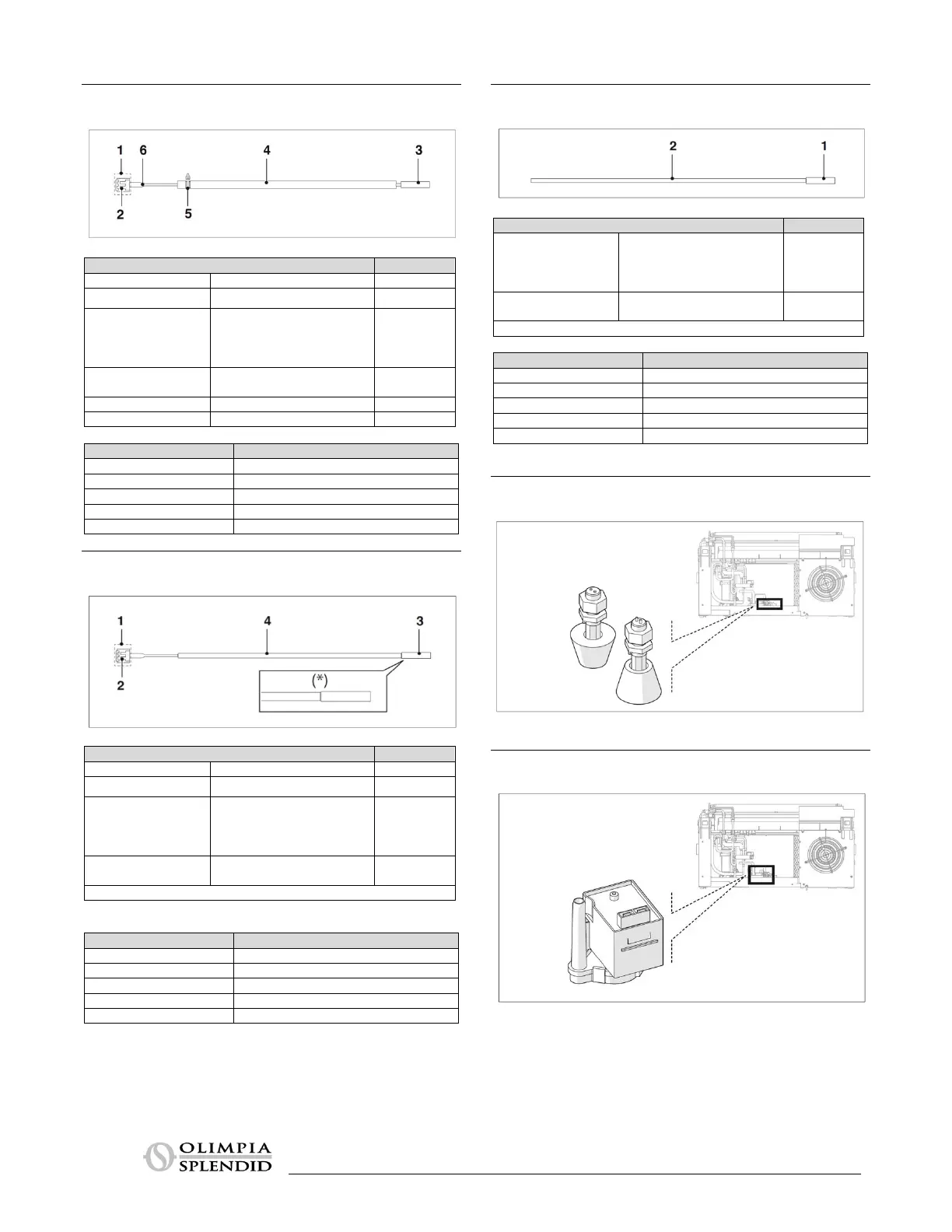

8.6 External temperature sensor
POSITION
DESCRIPTION
1 Housing
JST HER-2
Red
2 Terminal
JST SHE-001T-P0.6
530 mm
3 Temperature sensor
R25 – 10 KΩ ±3%
B25/100 = 3988 K ±0.5%
Operating temperature range:
-30°C to +80°C
4 Tube
PVC rubber hose, Ø4 mm
150°C
530 mm
5
Nylon band
6 Cable
PVC 105°C 300 V 2xAWG26
620 mm
LENGTH (mm)
TOLERANCE
0 – 100
±3
100 – 200
±5
200 – 1000
±10
1000 – 5000
±30
> 5000
±50
8.7 Evaporator assembly sensor
POSITION
DESCRIPTION
1 Housing
JST HER-2
Red
2 Terminal
JST SHE-001T-P0.6
530 mm
3 Temperature sensor
R25 – 10 KΩ ±3%
B25/100 = 3988 K ±0.5%
Operating temperature range:
-30°C to +80°C
4 Tube
PVC rubber hose, Ø4 mm
150°C
530 mm
(*) The tube must be positioned at the end of the sensor.
LENGTH (mm)
TOLERANCE
0 – 100
±3
100 – 200
±5
200 – 1000
±10
1000 – 5000
±30
> 5000
±50
8.8 Condenser assembly sensor
POSITION
DESCRIPTION
1 Temperature sensor
R25 – 10 KΩ ±3%
B25/100 = 3988 K ±0.5%
Operating temperature range:
-30°C to +80°C
2 Tube
PVC rubber Ø4 mm hose
150°C
530 mm
(*) The tube must be positioned at the end of the sensor.
LENGTH (mm)
TOLERANCE
0 – 100
±3
100 – 200
±5
200 – 1000
±10
1000 – 5000
±30
> 5000
±50
8.9 Level sensor
8.10 Pump
