MAESTRO SMART 39

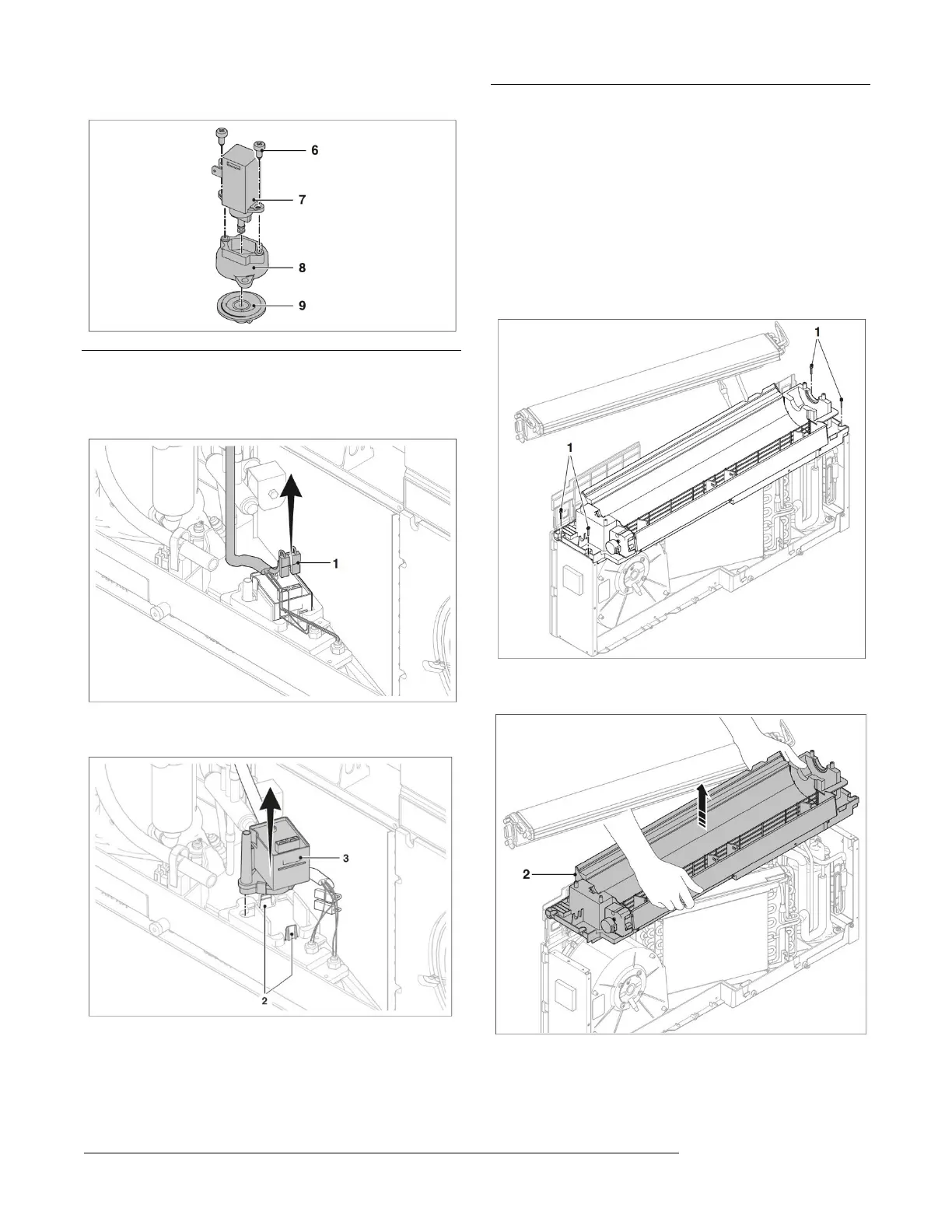

Remove the screws (6), pull out the thermoactuator (7) from the valve
assembly (8) (9).
9.17 Pump removal
Remove the cabling cover (Cf. 9.14 Pump assembly – sensors – valve
removal, on p. 38).
Disconnect the electrical wiring from the pump (1).
Release the tabs (2) to unfasten the pump (3) and remove it, paying
attention to the electrical wiring.
9.18 Intermediate basin assembly removal
Remove the body (Cf. 9.2 Body removal, on p. 32).
Remove the grille (Cf. 9.5 Grille removal, on p. 33).
Remove the front panel (Cf. 9.3 Front grille removal, on p. 32).
Remove the electronic assembly housing (Cf. 9.11 Electronic assembly
housing removal, on p. 36).
Remove the upper tank (Cf. 9.8 Upper tank removal, on p. 35).
Remove the internal fan (Cf. 9.9 Internal fan removal, on p. 36).
NOTE: Before removing every single assembly-component, ensure that
the electrical wiring and any condensate drain tubes are disconnected.
Remove the screws (1).
Remove the intermediate tank group (1) along with its insulation,
louver assembly and protective grille.
