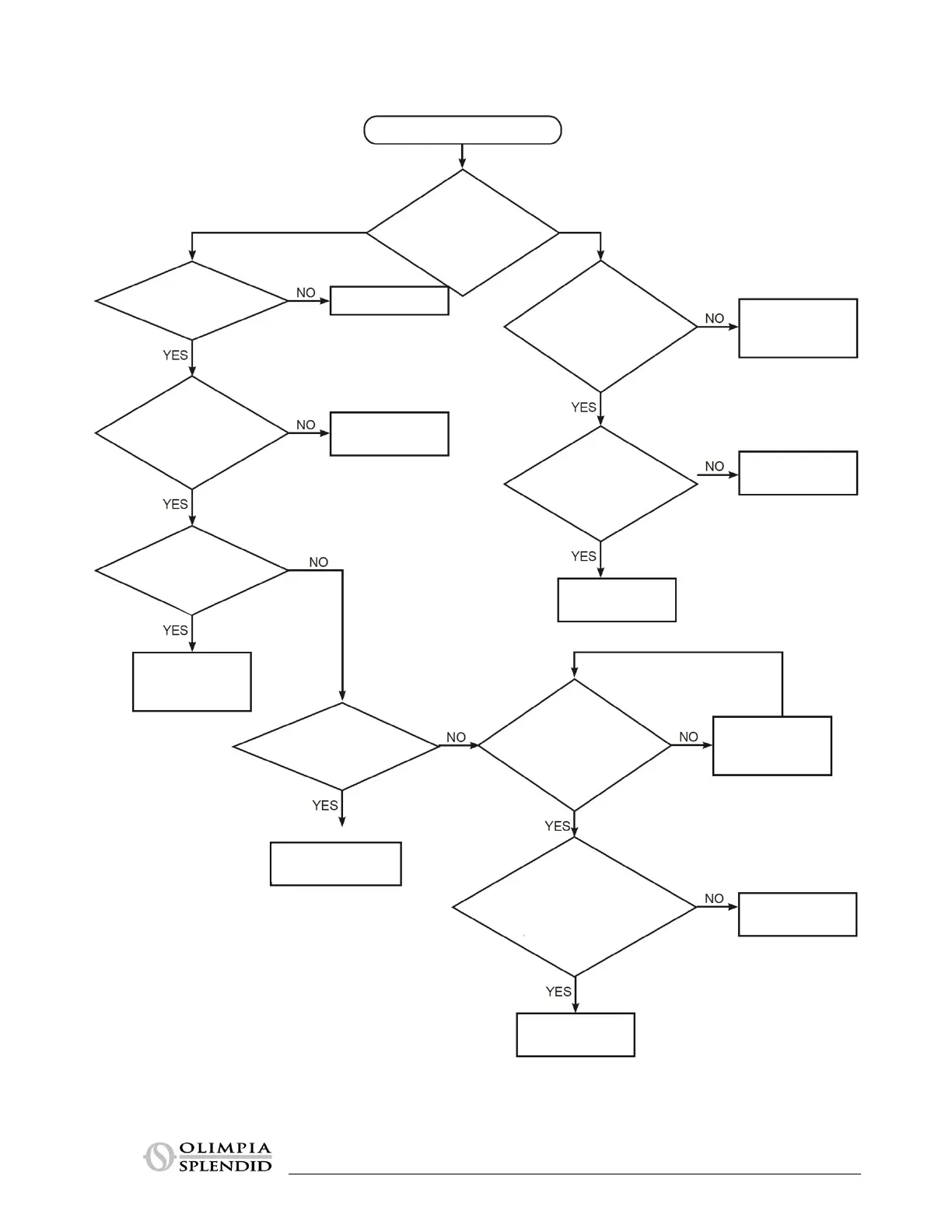

7.12.4 Water level alarm
Replace
thermoactuator
Replace
IDU board
Unblock / replace
pump
Unblock / Replace
level sensor
Replace
thermoactuator
Replace
IDU board
Clean the
slinger
Clean the coil
COOLING
HEATING
Disposal pump alarm
Adjust outlet /
remove
obstruction
Adjust outlet /
remove
obstruction
In what mode is the
unit operating
Is the coil clean?
Is the condensate
drain tube installed
a
nd unobstructed?
Is the thermoactuator
correctly receiving
power?
Are the level sensors
blocked
Is the slinger free of
obstructions?
Is the pump blocked
or obstructed?
Is the
thermoactuator
correctly connected
to power when the
pump is running for
more than 60 sec.?
Is the condensate
drain tube installed
and unobstructed?
