1-20 Printer features
Drawer driver

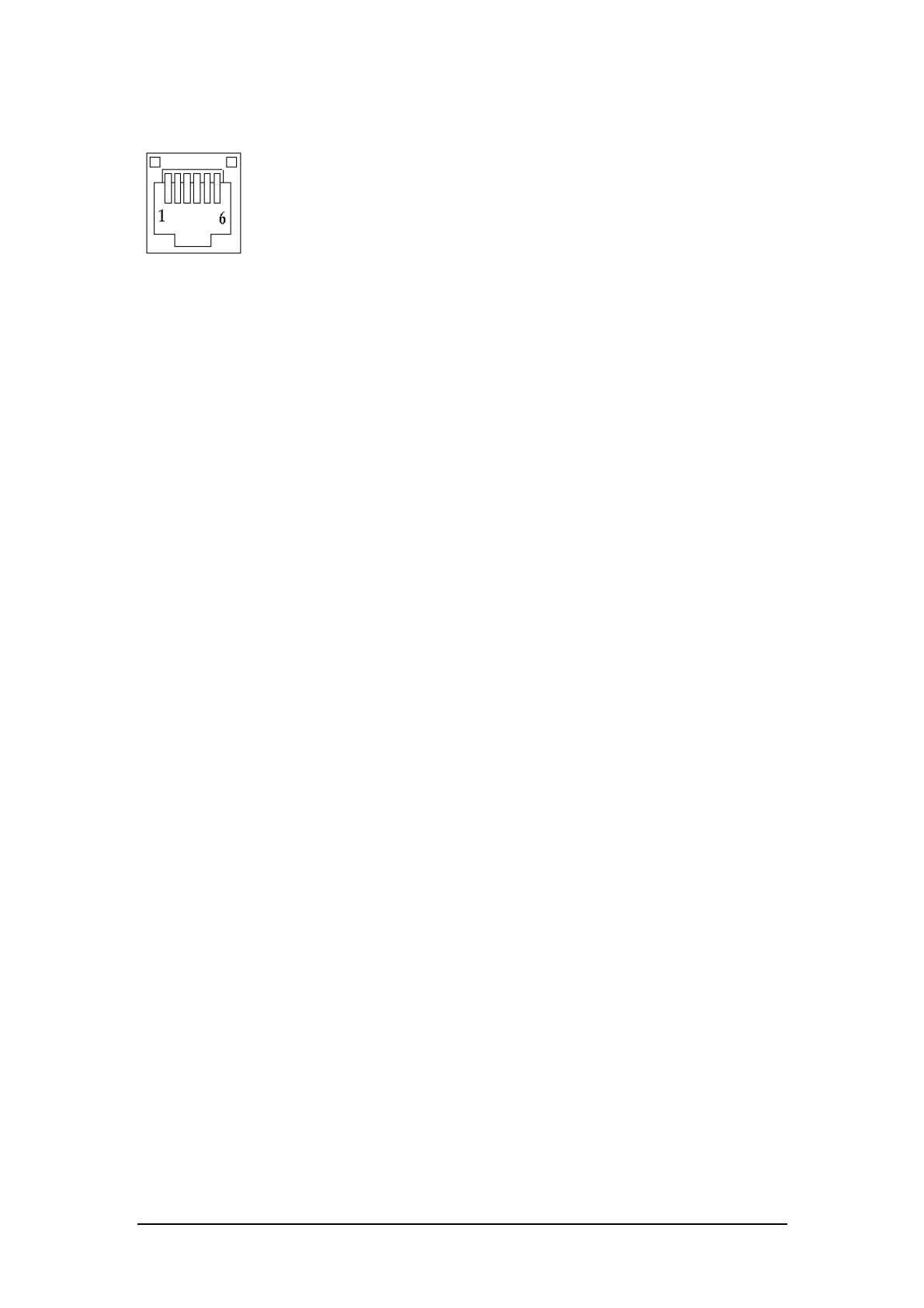

Output connector:
1 Frame ground
2 Drawer kick-out drive signal
3 Drawer open/close signal
4...+ 24 V
5 Drawer kick-out drive signal
6 Signal ground
The optional driver for the drawers controls two solenoids and a drawer open/closed sensor,
with the following characteristics:
Resistance of solenoids 24 ohm min
Output voltage 24 volts
Current 1 amp max.
Printer side connector Molex 52065-6615
The timing to open drawers 1 and 2 may be controlled from the line through command ESC p
m n1 n2.
The two transistors of the driver cannot be energized together or continuously.
