Printer features 1-3
Double roll module
Block diagram (double roll)

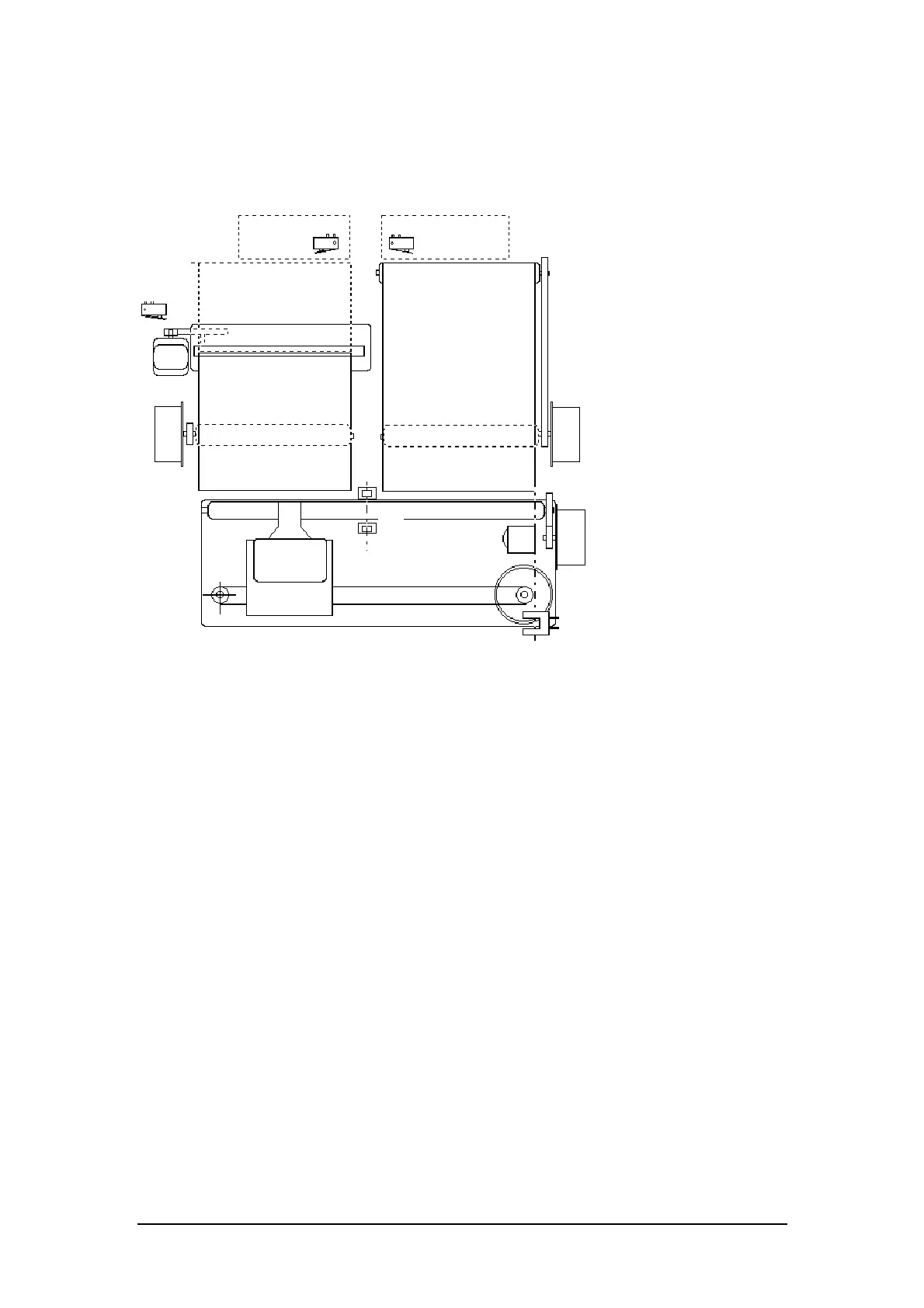

The figure below illustrates location of the mechanisms on the double roll machine (receipt +
journal).
1. Paper almost out microswitch (receipt)
2. Paper almost out microswitch (journal)
3. Cutter position microswitch
4. Receipt
5. Journal
6. Cutter motor
7. Receipt paper motor
8. Journal paper motor
9. Paper slip motor
10. Document alignment sensor
11. Carriage motor
12. Slip start, cheque presence, carriage reset sensor
13. Cheque start sensor
14. Print head carriage
3.
1.
2.
4.
5.
6.
7.
8.
9.
10.
11.
13.
12.
14.
