84
6.2 Removal of the lamp
CLV-190 INSTRUCTION MANUAL
Ch.6

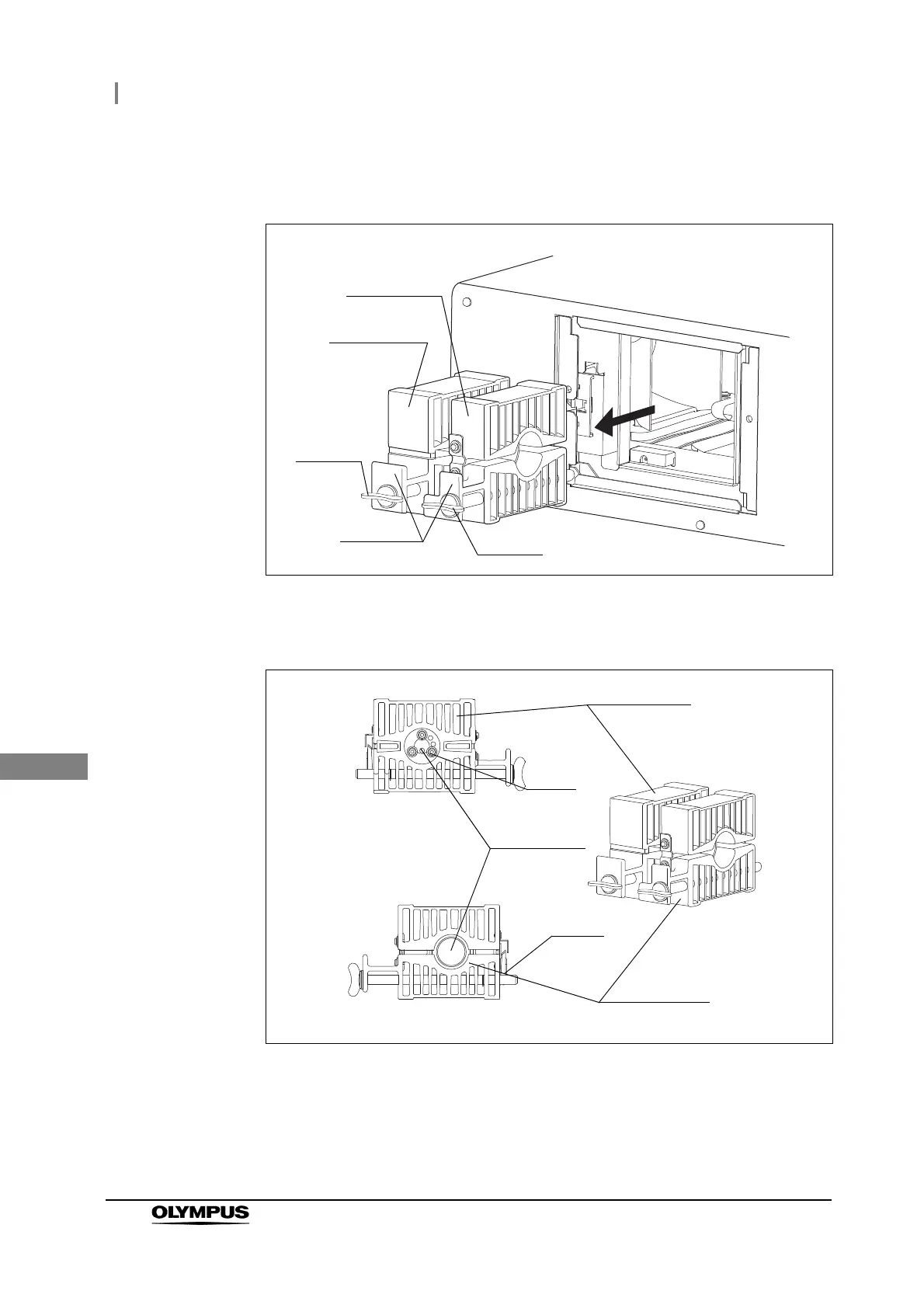

10 Holding the knobs or projections of the heat sinks, remove the examination lamp with
heat sinks (A) and (B) attached.
Figure 6.4
11 Using the hexagon wrench, loosen the three bolts on heat sink (B) (on the “+” side of
the examination lamp) and remove heat sink (B) from the examination lamp.
Figure 6.5
Heat sink (A)
Heat sink (B)
Projection
Knob (B)
Knob (A)
Heat sink (B)
Bolts
Back of heat sink (B)
Examination
lamp
Clamp
Heat sink (A)
Front of heat sink (A)
To Next Page
