ESG-400
11) Select the SalineCut (Effect 3) mode at the UNIVERSAL socket. Set the level to 320. Assign the
footswitch to the UNIVERSAL socket. (Perform the setting according to the instruction for use.)
12) Activate the output power by pressing “CUT” at the footswitch.
13) Verify the apparent power consumption S
L
is ≤ 1500 VA.
14) Record the test results in the Inspection Card (see chapter 7-3)
15) Switch the electrosurgical generator off and disassemble the test set-up.

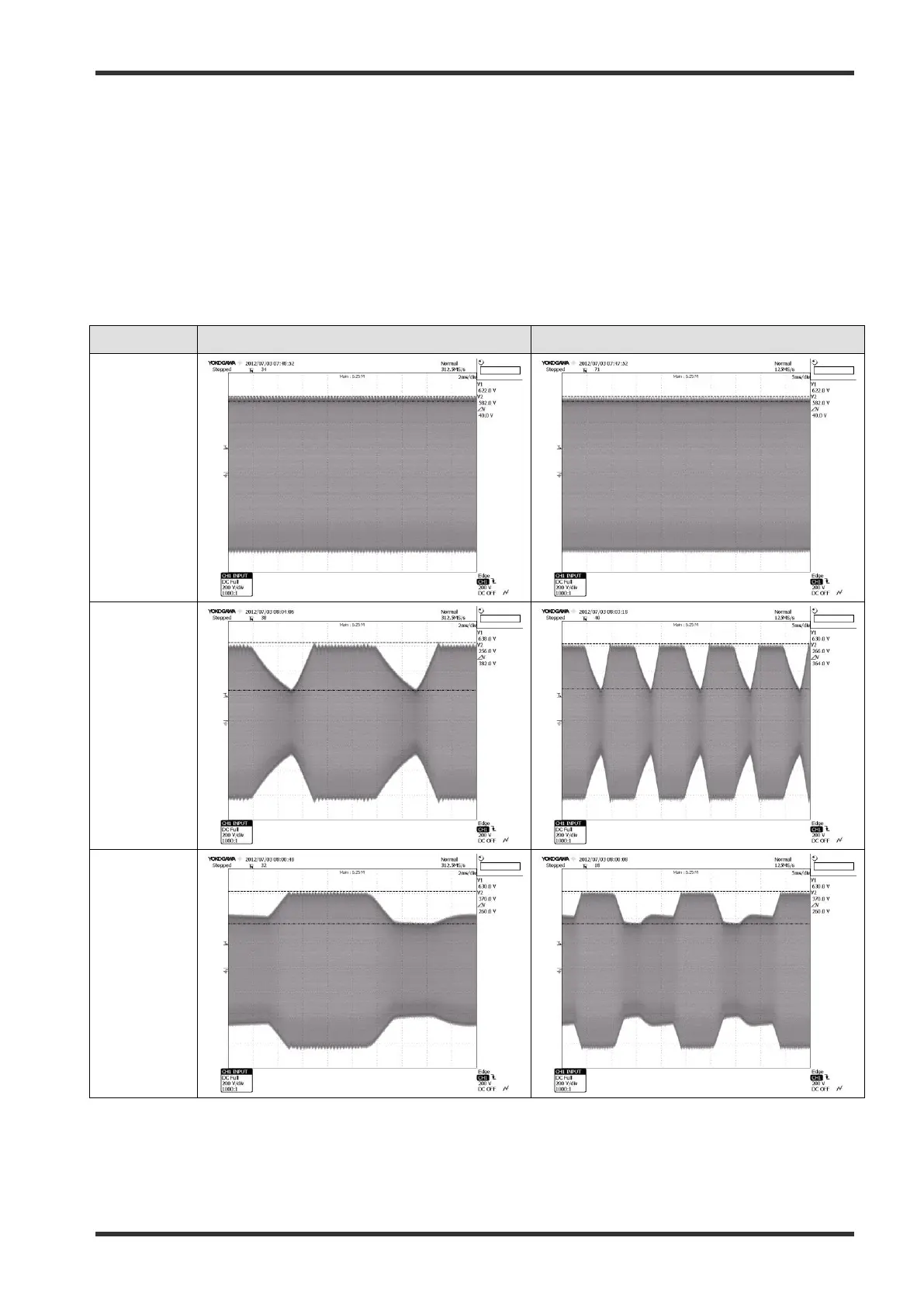

Setup Picture of oscilloscope (2 ms / div) Picture of oscilloscope (5 ms / div)
“good”
example for
WB91051W
“bad”
example for
WB91051W
with mains
voltage of
230 VAC
“bad”
example for
WB91051W
wit
h mains
voltage of
115 VAC
Table 7.4: good and bad examples of the output waveform
