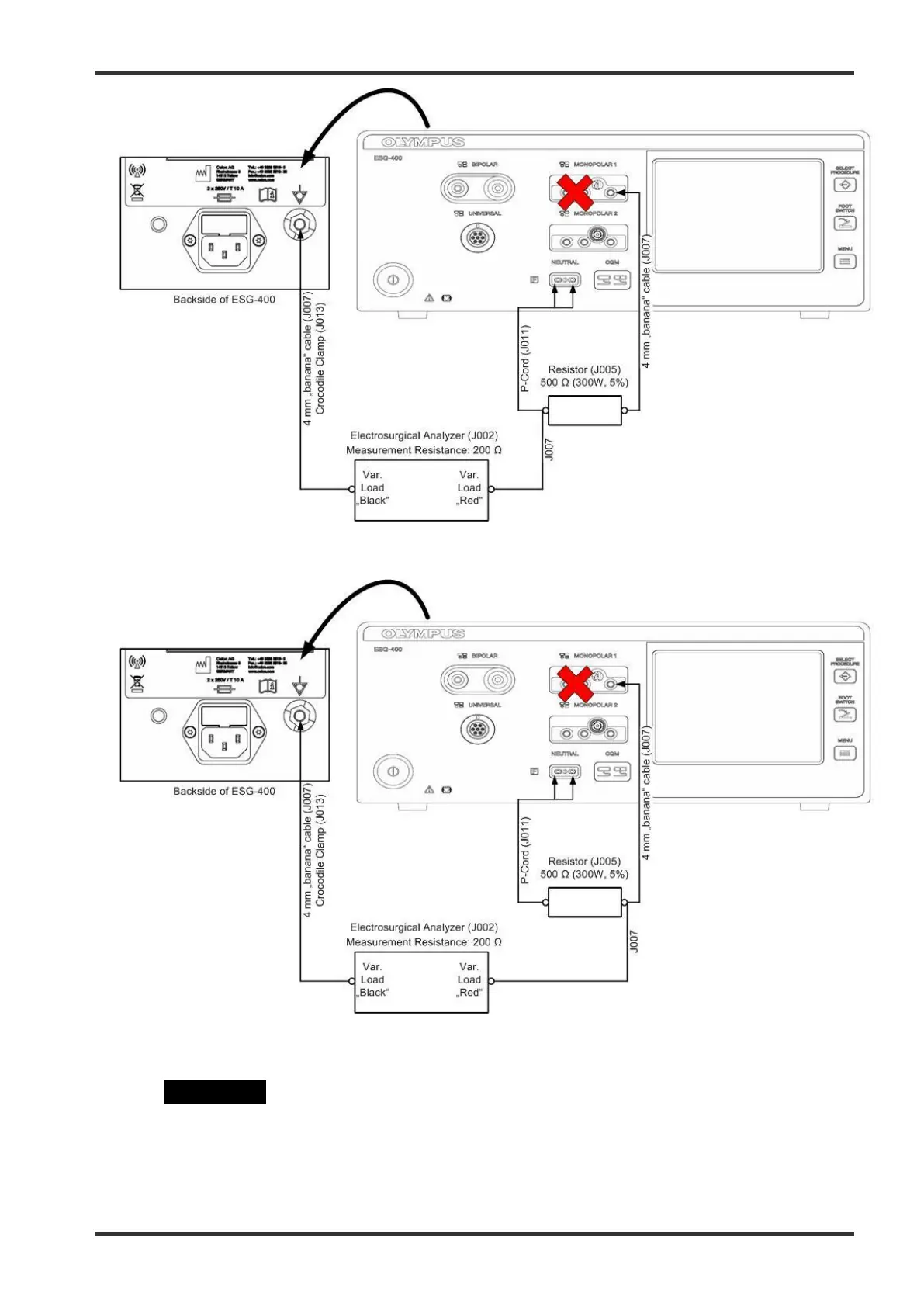

Fig. 5.2.3. Example for the loaded measurement of the monopolar high frequency leakage current at the
neutral pole
Fig. 5.2.4. Example for the loaded measurement of the monopolar high frequency leakage current at the
active pole
CAUTION
A connection of a 4 mm plug to any other receptacle except the
right-hand-
side receptacle of the MONOPOLAR 1 socket and the
MONOPOLAR 2 socket may destroy the socket during activation.
