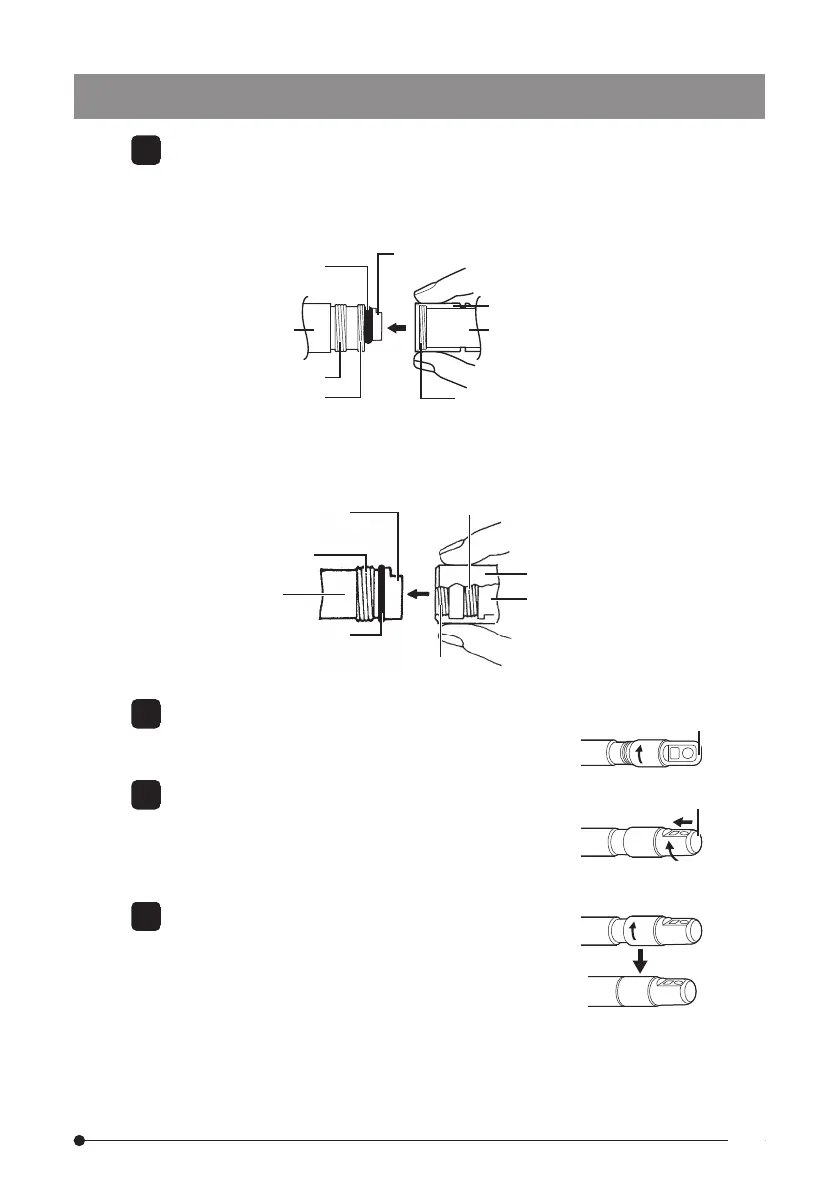

Olympus IPLEX G Lite - Optical Adapter Attachment Procedures

1 Holding the optical adapter and the distal end so that they make one straight line
each other, carefully insert the optical adapter into the distal end.
■ 4-mm type
Connecting screw thread
Optical adapter
Nut
Optical adapter positioning groove
First screw thread
Second screw thread
Distal end
O-ring
■ 6-mm type
Connecting
screw thread
Optical adapter
Nut
Optical adapter
positioning groove
First screw thread
Second screw thread
Distal end
O-ring
2 Rotate the nut of the optical adapter clockwise until
the connecting screw thread passes over the first
screw thread.
3 After passing the first screw thread, rotate the entire
main body of the optical adapter clockwise while
pushing gently until the optical adapter main body
fits into the positioning groove of the insertion tube
and stops rotating anymore.
4 Rotate the nut of the optical adapter clockwise to
attach the connecting screw thread to the second
screw thread. Tighten the nut until it stops
completely.
Optical adapter
Optical adapter (main unit)
■ Removing the optical adapter
Remove the optical adapter in the reverse order of the attaching procedures.
