Measurement method types
The measurement method selection screen is displayed immediately after starting the stereo
measurement or when “METHOD” is selected in the measurement menu screen.
There are 4 different types of measurement methods.

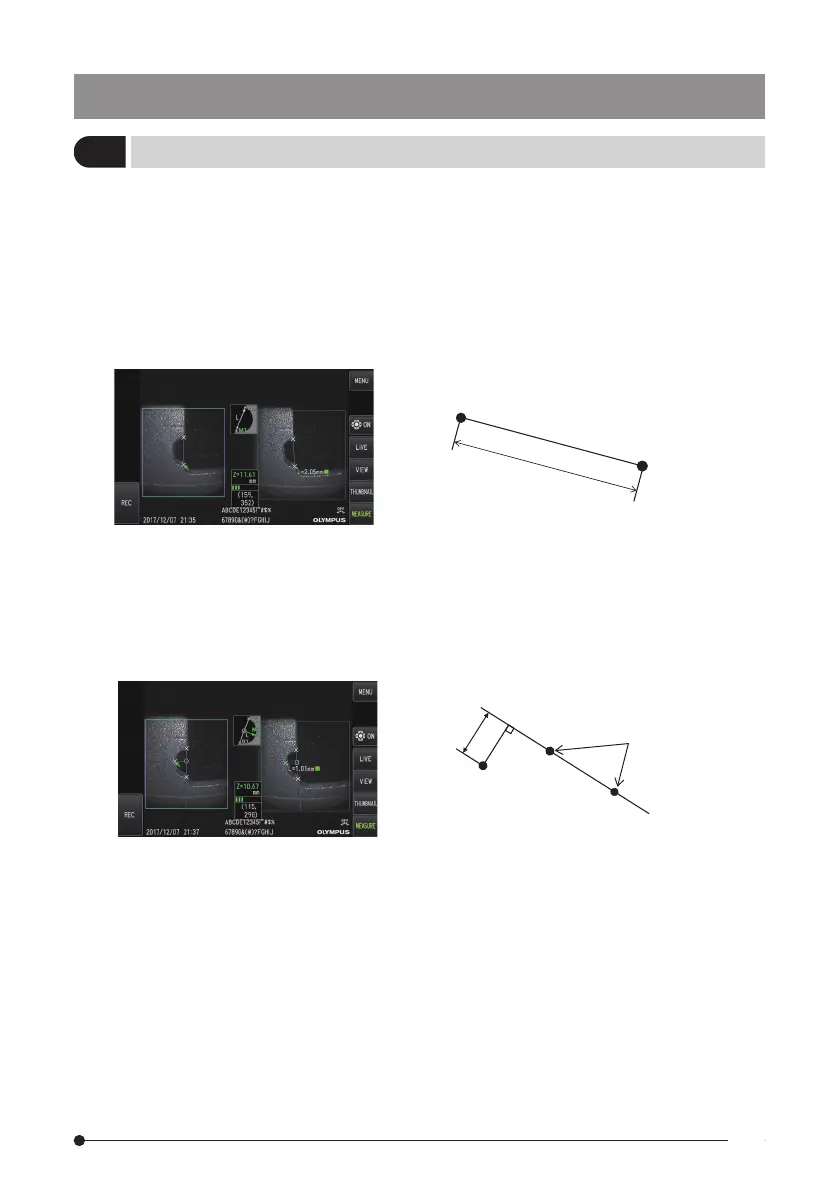

■ Distance
This mode allows for measuring the distance between two specified measurement points. Place
the cursor on both ends of the measurement area you want to measure and press the [MEAS/
OK] joystick to specify the measurement points.
Distance between
measurement points
Measurement
point
Measurement point
Distance
■ Point to line
This mode measures the distance to a measuring point from a reference line that is specified
using 2 reference points.
Measurement point
Reference
point
Reference
line
Perpendicul
ar distance
Point to line
