Olympus IPLEX G Lite - 6-2 Stereo Measurement Function; Stereo Measurement Overview

1

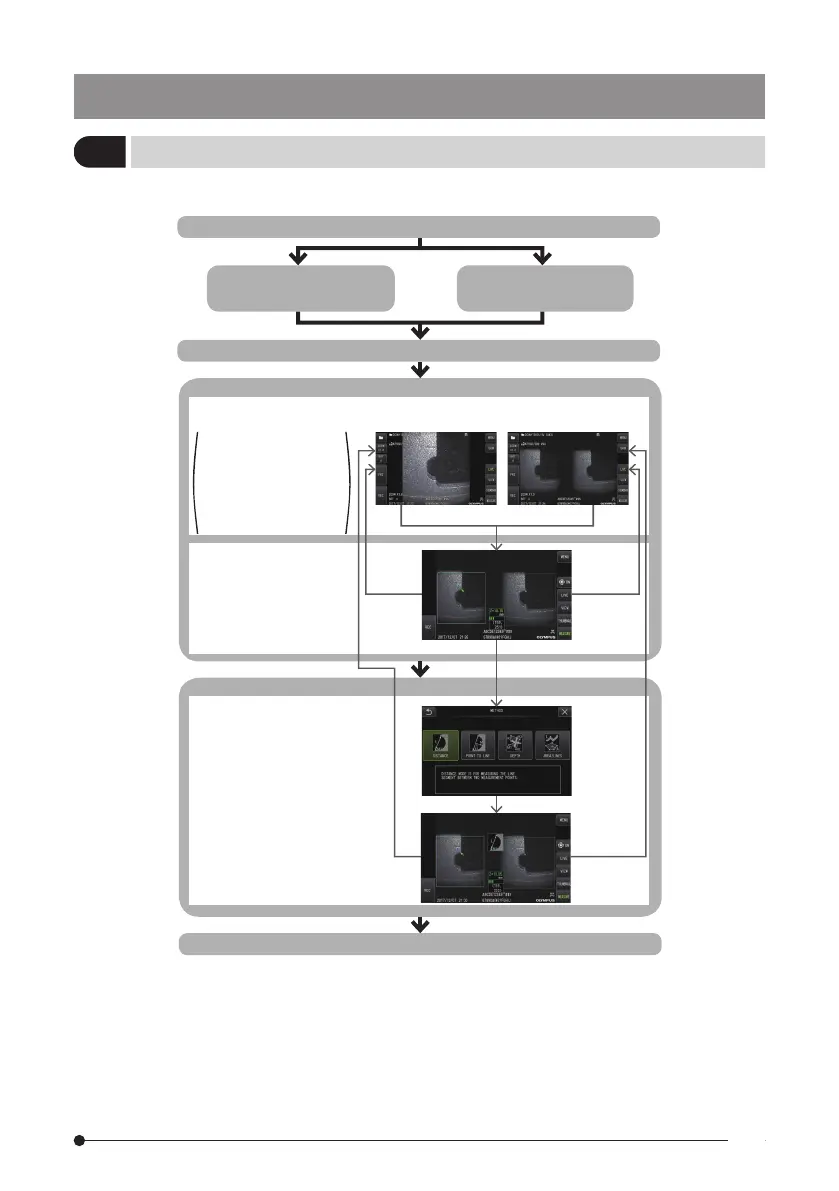

Steps for stereo measurement
The following shows measurement procedures and the screen flow.
[LIVE] [LIVE]
[MEAS/OK]
[MEAS/OK]
Checking measurement values (after measurement) (See page 76)
*1
MENU/ Exit
[LIVE]
MENU/ Exit
[LIVE]
Measure the length or
the area.
Measurement screen
Measurement (See page 82)
Check the distance
from the target position
before taking
measurements.
Spot ranging screen
[MEAS/OK] or ZOOM[W]
Binocular viewMonocular view
For procedures to select
the monocular view or
the binocular view of the
live screen. (See “Using
the live screen/freeze
screen” 56 page)
Observing the measurement area
Live screen
Capturing the measurement area (See page 79)
Checking measurement values (before measurement) (See page 76)
*1
Selecting a registered
stereo optical adapter
(See page 76)
Registering/re-registering
a stereo optical adapter
(See page 71)
Attaching the stereo optical adapter (See page 70)
*1 Make sure that the measurement values obtained when “Checking measurement values
(before measurement)” and when “Checking measurement values (after measurement)” are
almost identical. If the measurement values differ from each other, check that the stereo
optical adapter is not loose and the lens is not dirty, and measure again if necessary.
