Labels and Symbols 5
• To reduce the risk of electric shock, avoid touching the inner conductor of the
probe connectors. Up to 340 V can be present on the inner conductor of the
ultrasonic testing (UT) connectors, and up to 115 V can be present on the phased
array (PA) connector. The warning symbol near the PA and UT connectors signals
this electric shock risk (see Figure i-3 on page 5).
• Reinforced insulation must be provided for the probes connected to the
OmniScan SX instrument.
Use only compatible Olympus probes.

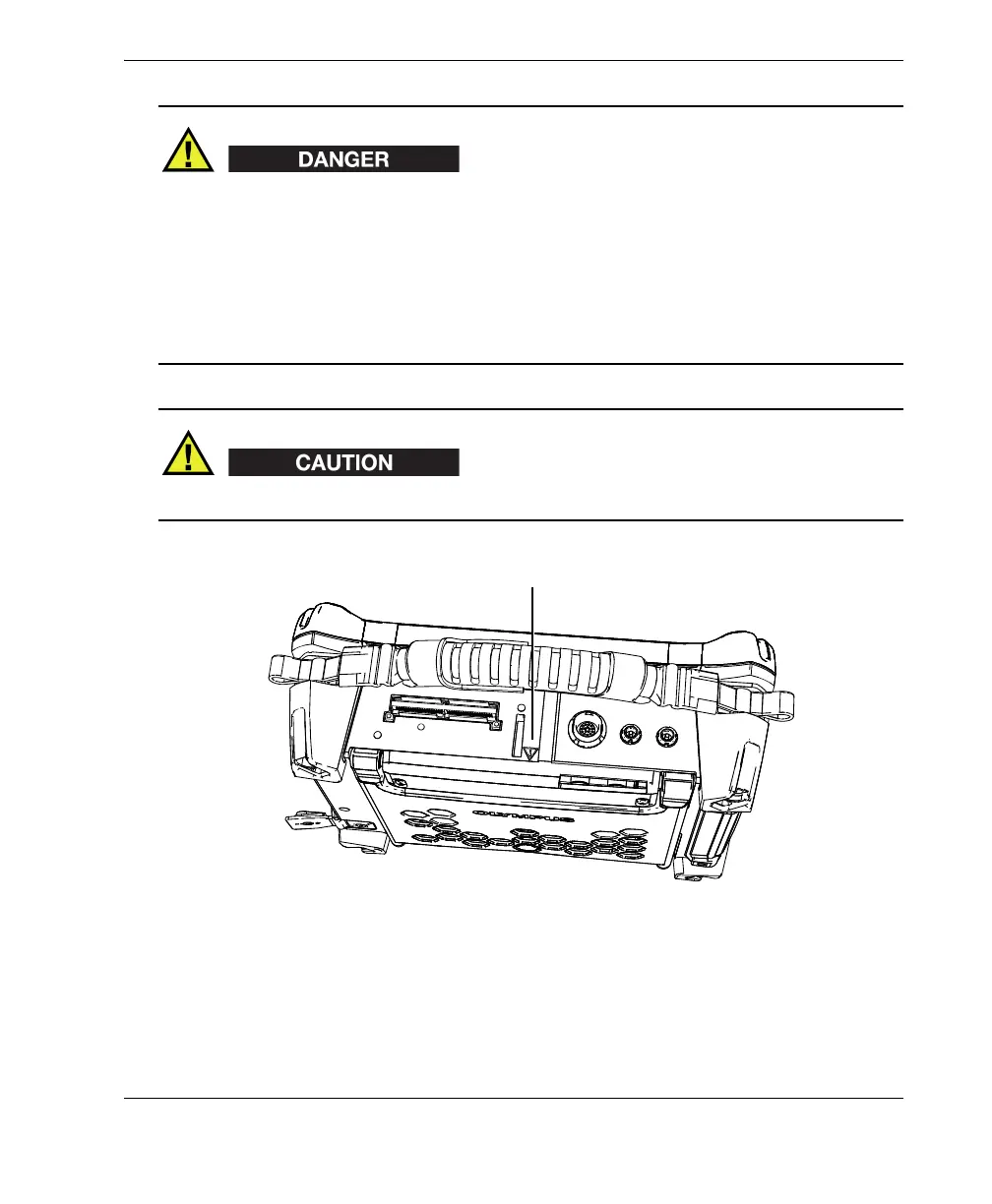

Figure i-3 Warning symbol on top of the OmniScan SX
