DMTA-20043-01EN [U8778624], Rev. B, May 2013
Basic Operation 39
3.4.2.3 Battery Removal and Installation
To remove or install a battery
1. On the left side panel, turn the two quarter-turn latches to open the battery
compartment door.
2. Pull the tab to remove the battery (see Figure 3-6 on page 40).

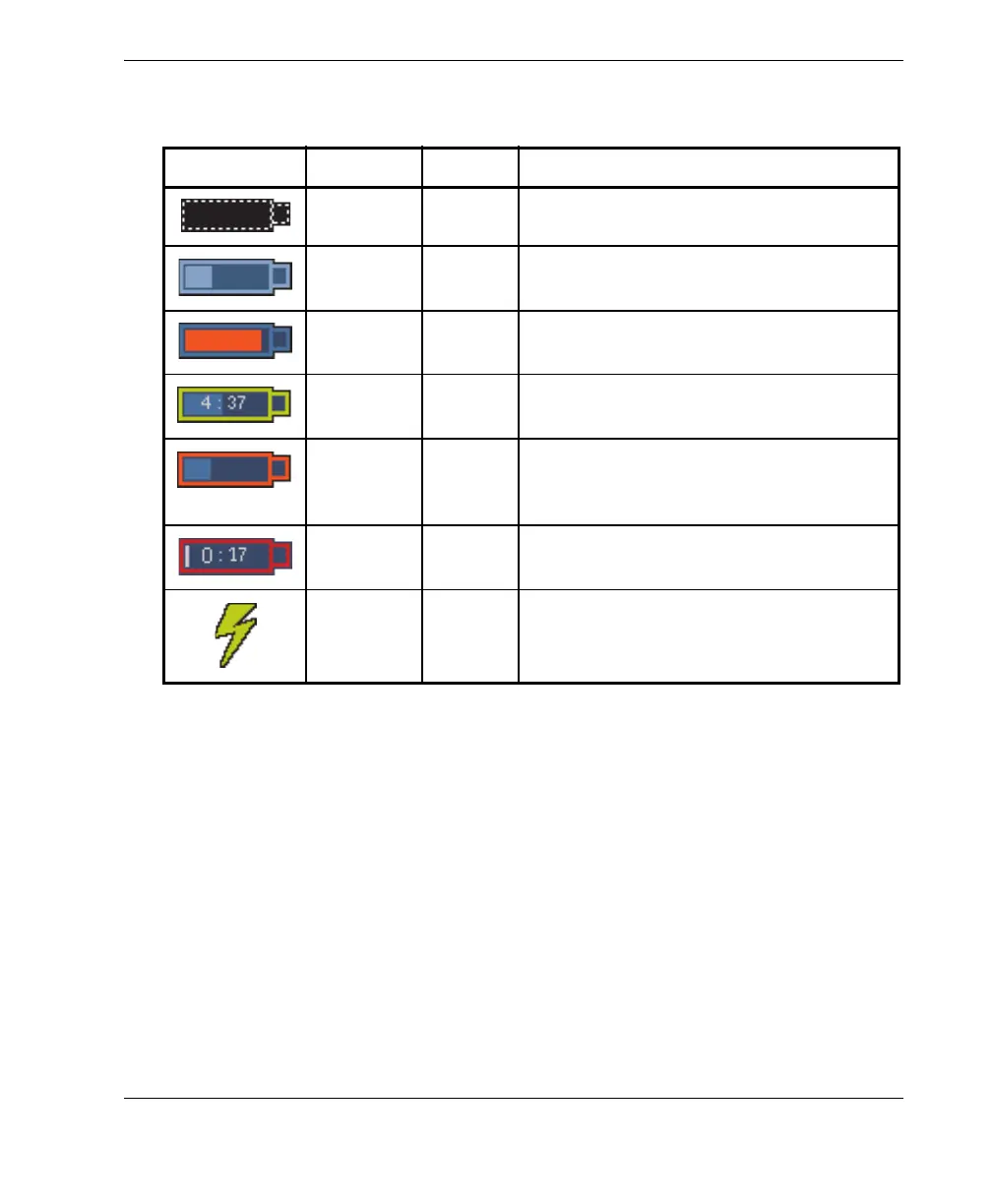

Table 5 Battery status indicator variations
Indicator Outline Fill Meaning
Dotted N/A There is no battery in the compartment.
Blue Blue The battery is functioning properly.
Blue Orange The battery is too hot for use.
Yellow
(blinking)
Blue The battery is charging.
Orange Blue The battery is too hot to be charged, or
the internal system temperature is too
high to enable charging (over 60 °C).
Red
(blinking)
Blue The battery charge is critically low (less
than 10 %). A beeping noise is emitted.
N/A Yellow The OmniScan SX is being powered
externally through the DC adaptor.
